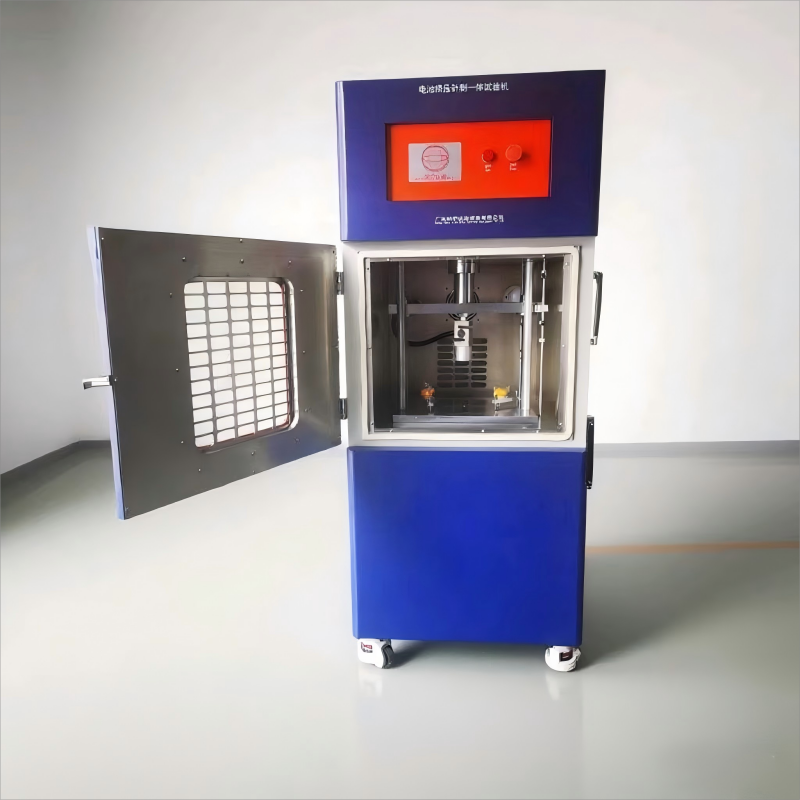

Laboratory Battery Test Equipment Stainless Steel Battery Extrusion Needle Tester

1
MOQ
Laboratory Battery Test Equipment Stainless Steel Battery Extrusion Needle Tester
Features Gallery Product Description Chat Now
Features
Specifications
Material: Stainless Steel
Product Name: Battery Extrusion Needle Tester
Penetrating Force: 100~200kg
Drive Mode: Cylinder Driver
Penetrating Speed: 10~40mm/s
Powe Supply: AC 1 Phase 220V 60/50Hz
Steel Nail: Dia. 2mm-Dia. 8mm High Temperature Resistance
Highlight:

Laboratory Battery Test Equipment

,

Battery Test Equipment Stainless Steel

,

Battery Extrusion Needle Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: JIANQIAO
Certification: CE
Model Number: JQ-660
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 20
Payment Terms: T/T
Supply Ability: 100
Product Description
Battery Extrusion Needle Tester / Laboratory Battery Test Equipment
Product Specifications
Attribute Value
Material Stainless steel
Product name Battery Extrusion Needle Tester
Penetrating force 100~200kg
Drive mode Cylinder driver
Penetrating speed 10~40mm/s
Power supply AC 1 Phase 220V 60/50Hz
Steel nail Dia. 2mm-Dia. 8mm high temperature resistance
Product Description
The Battery Nail Penetrating Tester evaluates battery safety by using a steel nail to penetrate the battery under controlled conditions. This test verifies the battery's safety capability, with qualified batteries showing no fire or explosion when penetrated.
Testing Process
Tests are conducted at 20℃±5℃. The battery specimen includes a thermocouple on its largest surface. The battery is placed in a fuming cupboard, and a stainless steel nail (2-8mm diameter) penetrates the center of the largest side at 10-40mm/s, remaining for 5 seconds.
Technical Specifications
Model JQ-660
Steel nail Dia. 2mm-8mm high temperature resistant
Space between battery surface and nail point 150mm
Penetrating speed 10-40mm/s
Penetrating force 150-200KG
Force display Pressure sensing and LED display
Test stroke 150mm
Drive mode Cylinder drive
Structure of tester Box-type (explosion proof, fire proof, anti-corrosion, easy to clean)
Dimension of explosion proof tank 450×750×550mm (W×H×D)
Materials of explosion-proof tank Galvanized sheet with baking finish
Dimension of controller box 300×260×170mm
Compatible Battery Types
  • Lithium battery
  • Nickel battery
  • Ni-MH battery
  • Lead-acid battery
  • Mobile Phone Battery
Key Features
  • Metal fire-proof cover protects wiring from flames during testing
  • Integrated lighting system for clear observation of test process
  • Adjustable penetration/crush velocity (10-80mm/s)
  • Controllable penetration/crush force (250N to 13KN) meets various standards
  • Wire hole for internal temperature/air pressure testing with vent hole and air blower
  • Separate control cabinet (1-2m from test chamber) reduces noise and improves safety
