Quality Electronic Battery Drop Tester Machine 400mm - 1500mm Drop Height factory
<
Quality Electronic Battery Drop Tester Machine 400mm - 1500mm Drop Height factory
>

Electronic Battery Drop Tester Machine 400mm - 1500mm Drop Height

Tags

EV battery vibration testing equipment

EV Battery Vibration Testing

Electric Car Battery Tester

Product Details

Drop Height: 400~1500mm Display: LED Digital
Drop Method: Electronic Machine Dimensions: 1400*1200*2300mm
Re-set Method: Manual Drop Angle Deviation: <1°
Highlight

Electronic Battery Drop Tester

,

Battery Drop Tester 1500mm

,

Battery Drop Tester 400mm

Product Description

Drop test Machine Products Drop Testing Machine for Package Products/Drop & Shock Test Systems



Drop Tester Machine

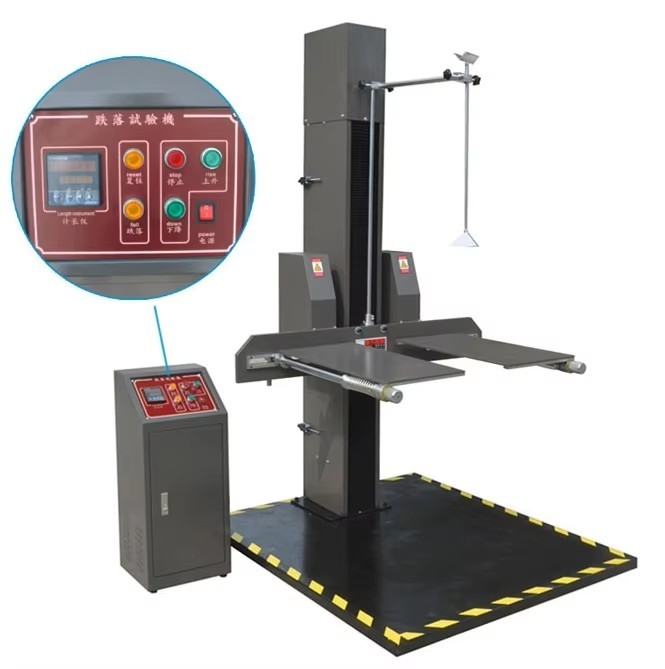

Double-arm drop impact tester is mainly used to assess the degree of impact of the package in the actual transportation, loading and unloading process, and to assess the rationality of the impact strength and package design of the package during handling.



Operation specification

1.Turn on the power switch and the power light is on (in this case, it is forbidden for any personnel without professional training to enter the yellow cordon to do any relevant test operation, which is very dangerous). Check whether the two wings are in the horizontal position, otherwise use the hand board to the horizontal position;

2. Place the test sample on the two wings with a clamp; all stand outside the safety line.

3. Press the up button slightly to raise the two wings to the desired test height. Press the stop button again to stop the rise.

4. Press the drop key to test the free fall of the object, the test is completed, and record the state of the sample after the drop test;

5. According to the above 2 to 4 test methods for other product testing, according to the required surface, angle, edge free drop test. 6. Note: It is forbidden to stand on the workbench during the drop test! (Danger!)









Model
JQ-1000
Drop Height
400~1500mm
Machine Dimensions
1400*1200*2300mm
Max. Specimen Weight
80kg
Display
LED digital
Thickness of Ground Plate
10mm (Solid steel plate)
Drop Method
Electronic
Re-set Method
Manual
Sample installation method
Ling, angle, surface
Arm Size
700*350mm
Size of Ground Plate
1400*1200*10mm
Max Size of Specimen
1000*800*1000mm
Drop Deviation
±10mm
Drop Angle Deviation
<1°
Sensor
High-precise encoder sensor
Controller
Separate controller, and antistatic spray paint coat
Net Weight
300KG
Power
0.75KWA
Voltage
3 phase 380V 50Hz ,1.5KW
**Design Criteria:GB4757.5-84 JISZ0202-87 ISO2248-1972(E)
Electronic Battery Drop Tester Machine 400mm - 1500mm Drop Height 0




Product Highlights

Drop test Machine Products Drop Testing Machine for Package Products/Drop & Shock Test Systems Drop Tester Machine Double-arm drop impact tester is mainly used to assess the degree of impact of the package in the actual transportation, loading and unloading process, and to assess the rationality of ...
