Customizable Battery Agree Vibration Chamber For UN38.3 And ECE R 100 Testing

Brand Name: Jianqiao
Model Number: JQTHV-1000
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Supply Ability: 300/YEAR
Tags

Agree Testing Chamber

Agree Test Chamber

Agree Vibration Chamber

Product Details

Certifications: CE, ISO 9001:2008 Power Source: 380V AC 50/60Hz
Internal Material: Stainless Steel(SUS304) Inner Chamber: 1000*1000*1000
Temperature Cooling Rate: 0.8~1.5°C/Min Frequency Rang: 3-2000Hz
Controller: Standard: South Korea TEMI-1500 Usage: Environmental Testing
Fan: Centrifugal Blower Internal Dimens: Customizable
Chamber Material: Stainless Steel
Highlight

Battery Agree Vibration Chamber

,

UN38.3 Agree Vibration Chamber

,

Customizable Agree Vibration Chamber

Product Description

Battery Agree Chamber for UN38.3 and ECE R 100 Testing
Product Specifications
Attribute Value
Certifications CE, ISO 9001:2008
Power Source 380V AC 50/60Hz
Internal Material Stainless steel (SUS304)
Inner Chamber 1000*1000*1000
Temperature cooling rate 0.8~1.5°C/Min
Frequency Range 3-2000Hz
Controller Standard: South Korea TEMI-1500
Usage Environmental testing
Fan Centrifugal blower
Internal Dimensions Customizable
Chamber Material Stainless steel

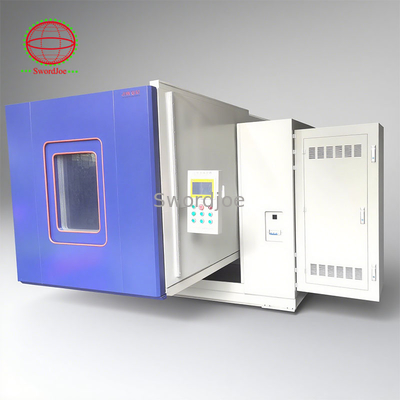

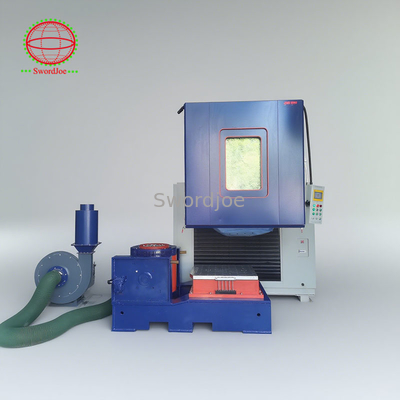

Customizable Battery Agree Vibration Chamber For UN38.3 And ECE R 100 Testing 0 Customizable Battery Agree Vibration Chamber For UN38.3 And ECE R 100 Testing 1
Compliance Testing Standards
Test Specification Description
IEC 62660-2 Reliability & Abuse Testing for Lithium Ion Cells in Electric Vehicles
  • Capacity discharge test at -20°C, 0°C, 25°C and 45°C
  • High temperature endurance: Raise temp at 5°C/min to 130°C ±2°C, soak for 30 min
  • Temperature cycling between -40°C to +85°C for 30 cycles (with/without electrical operation)
SAE J2464 EV & HEV Rechargeable Energy Storage System Safety & Abuse Testing
  • Thermal Stability: Increasing temperature in 5°C increments
  • Temperature Cycling: Cycle between 70°C to -40°C (5 cycles total)
IEC 60086-4 Primary Batteries, Part 4: Safety of Lithium Batteries
  • Altitude Simulation Test at 11.6 kPa for 6 hours
  • Thermal Cycling between 75°C and -40°C (10 cycles)
  • External Short Circuit at 55°C
  • Thermal Abuse: 5°C/min to 130°C, soak for 10 minutes
UL 1642 Standard for Lithium Batteries
  • Short circuit test at 20°C & 55°C
  • Heating test from 20°C to 130°C at 5°C/min, soak for 10 minutes
  • Temperature Cycling test (10 cycles total)
  • Altitude Simulation Test at 11.6 kPa for 6 hours
UN Lithium Battery Testing UN Lithium Battery Testing Requirements
  • Altitude Simulation Test at 11.6 kPa for 6 hours
  • Temperature Cycling Test between 75°C and -40°C (10 cycles)
IEC 61960 Secondary lithium cells and batteries for portable applications
  • Discharge performance test at 20°C and -20°C
Additional Testing Standards
Test Specification Description
IEC 62133 Safety requirements for portable sealed secondary cells
  • Altitude Simulation Test at 11.6 kPa for 6 hours
  • Temperature cycling between 75°C and -20°C (5 cycles)
  • Thermal Abuse: 5°C/min to 130°C, soak for 10 minutes
UL 2054 Household and Commercial Batteries
  • Heating test from 20°C to 130°C at 5°C/min, soak for 10 minutes
  • Temperature Cycling test (10 cycles total)
IEEE 1625 Laptop Rechargeable Batteries
  • Altitude Simulation Test at 11.6 kPa
  • Heating Test at 130°C for 10 minutes
  • Temperature Cycling Test between 75°C and -40°C (5 cycles)
IEEE 1725 Phone Rechargeable Batteries
  • Heating Test at 130°C for 60 minutes
  • Temperature Stability at 150°C for 10 minutes
Available Models
Model JQTHV-500 JQTHV-1000 JQTHV-1700 JQTHV-3400
Inner Size (cm) 50*75*65 80*70*90 100*100*100 195*315*516
Volume (L) 512L 1000L 1700L 3400L
Temperature Range -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D:-70℃)
Humidity Range 10%~98% RH
Cooling Rate Standard 1℃/Min or Optional specified
Heating Up Rate Standard 3℃/Min or specified
Frequency Range 3~5000 Hz (adjustable)
Exterior material 1.2mm Electrolytic plate Electrostatic spray paint
Interior material SUS 304# Stainless steel plate
Controller TW DELTA PLC, 7" or 10" color touch screen control
Power supply AC380V @50Hz

Product Highlights

Battery Agree Chamber for UN38.3 and ECE R 100 Testing Product Specifications Attribute Value Certifications CE, ISO 9001:2008 Power Source 380V AC 50/60Hz Internal Material Stainless steel (SUS304) Inner Chamber 1000*1000*1000 Temperature cooling rate 0.8~1.5°C/Min Frequency Range 3-2000Hz ...
