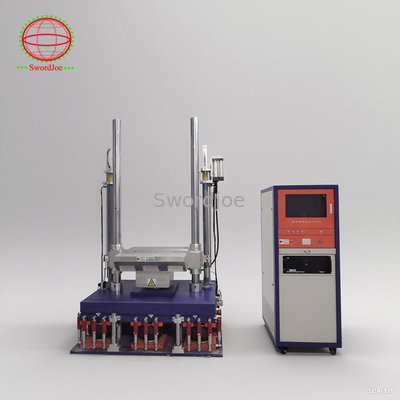

50Hz 2kVA Mechanical Shock Test System For Battery Pack UN38.3 ECE R 100
Product Details
| Features: | Digital Control | Name: | Shock Test System |
|---|---|---|---|
| Control And Measurement System: | OKS01 | Power Requirements: | 220V±10% Single Phase AC 50Hz 2kVA |
| Standard: | GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200 | ||
| Highlight |
Mechanical Shock Test System,2kVA Shock Test System,50Hz Battery Shock Test |
||
Product Description
- The size of your largest test item (determines table surface area)
- The maximum payload (determines shock system performance category)
- Size of your largest test item
- Required performance capability
- Velocity change
- Acceleration level
- Shock pulse waveforms (half sine, sawtooth, or trapezoidal)
| Model | IS5 | IS10 | IS25 | IS50 | IS100 | IS200 | IS300 |
|---|---|---|---|---|---|---|---|
| Maximum test load (kg) | 5 | 10 | 25 | 50 | 100 | 200 | 300 |
| Table size (mm*mm) | 120*120 | 200*200 | 350*350 | 500*500 | 700*700 | 750*750 | 800*800 |
| Shock waveform (m/s²) | Half sine waveform: 100~30000 (IS5), 100~20000 (IS10), 100~10000 (IS25), 100~6500 (IS50), 150~6000 (IS100), 150~5000 (IS200), 150~3500 (IS300) After peak saw-tooth: 100~1000 (all models) Trapezoidal wave: 150~1500 (IS5, IS10), 150~1200 (IS25, IS50, IS100), 150~1000 (IS200), 100~1000 (IS300) |
||||||
| Pulse duration time (m/s) | Half sine waveform: 0.5~20 (IS5), 0.6~20 (IS10), 0.8~20 (IS25), 1.5~20 (IS50), 2~20 (IS100), 2.5~20 (IS200), 3~20 (IS300) After peak saw-tooth: 6~18 (all models) Trapezoidal wave: 6~20 (IS5-IS25), 6~25 (IS50-IS300) |
||||||
| Maximum impact distance (mm) | 1550 (IS5), 1500 (IS10), 1400 (IS25-IS300) | ||||||
| Anti-secondary impact device | Air pressure friction brake | Hydraulic friction brake | |||||
| Table weight (kg) | 1300 | 1500 | 2800 | 3800 | 4350 | 4900 | 6250 |
| Dimensions (L*W*H)(mm) | 900*450*2600 | 1000*500*2700 | 1100*800*2800 | 1100*750*2800 | 1350*850*2850 | 1420*920*2900 | 1480*1000*2950 |
| Control and measurement system | OKS01 | ||||||
| Power requirements | 220V±10% single phase AC 50Hz 2kVA | ||||||
| Hydraulic pump station power requirements | 380V±10% 3 phases AC 50Hz | ||||||
| Hydraulic pump station power consumption (kVA) | 2.5 | 2.5 | 4 | 4.6 | 4.6 | 6.2 | 6.5 |
| Applicable standard | GB/T2433.5, GB/T2423.6, IEC68-2-29, JJG497-200 | ||||||
Product Highlights
Mechanical Shock Test System for Battery Pack UN38.3 ECE R100 Shock test data is essential for determining if your product can withstand its intended distribution and use environment. Jianqiao builds customized Shock Test Systems to meet your specific mechanical shock testing requirements. ...
