Constant Temperature And Humidity Test Chamber

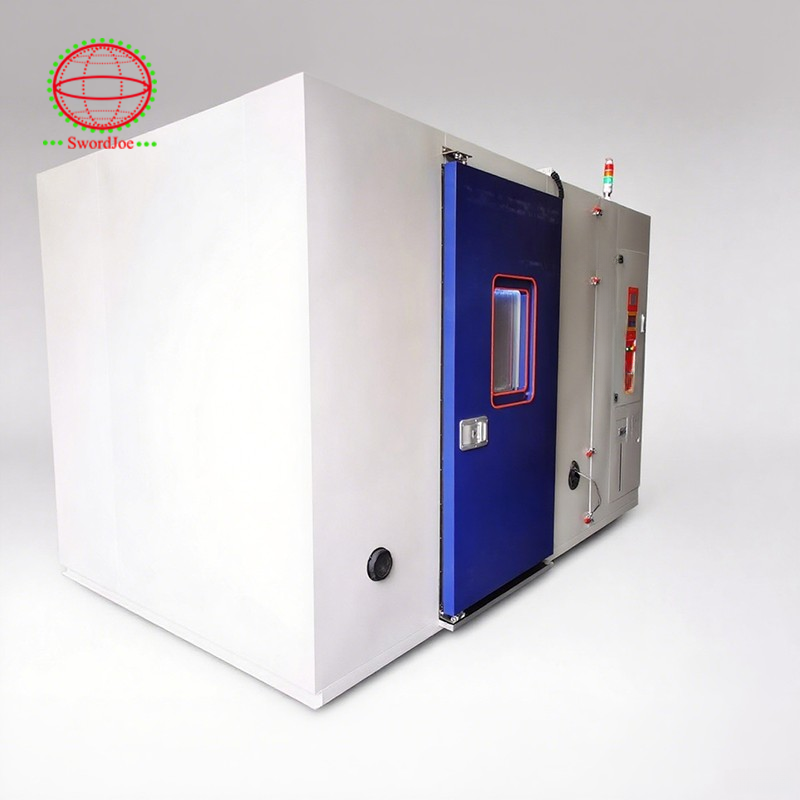

Environmental Constant Temperature And Humidity Chamber For Battery Pack

Brand Name:	Jianqiao
Model Number:	JQTH-150
MOQ:	1
Delivery Time:	20 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Electrodynamic Vibration Te...25.pdf

Power Supply:

AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire

Working Conditions:

RT To 35℃

Control Method:

PWM Control

Temp Uniformity:

±2℃(No-load)

Temp Fluctuation:

±0.5℃(No-load)

Temp Range:

Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized.

Packaging Details:

Wooden case

Supply Ability:

300 sets /year

Highlight:

Environmental Constant Temperature And Humidity Chamber

Battery Constant Temperature And Humidity Chamber

Environmental Constant Temperature Humidity Chamber

Product Description

Reliable Temperature and Humidity Chamber for Battery Pack Industry

Environmental Testing Solution for Battery Packs and Fuel Cells

Battery packs and fuel cells must operate safely in extreme environmental conditions. Our climate chambers simulate controlled, extreme conditions to rigorously test performance and durability, ensuring reliability in demanding environments.

Key Features

Precise Temperature Control: Range from -40°C to +90°C
Available Volumes: 16 m³ or 22 m³ (custom sizes available)
Safety Features: Optional system flooding for battery prototypes
Standards Compliance: IEC 60068-3-5 and other industry standards

Technical Specifications

Model	JQTH-100	JQTH-150	JQTH-225	JQTH-408	JQTH-800	JQTH-1000	JQTH-1200	JQTH-1500
Volume (L)	100L	150L	225L	408L	800L	1000L	1200L	1500L
Inner Size (cm)	50×40×50	50×50×60	70×46×70	70×75×80	100×80×100	100×100×100	150×80×100	150×100×100
Temp Range	Model S: -70°C~+150°C, Model L: -40°C~+150°C or customized
Humidity Range	10% to 98% RH
Power	5.5KW	6KW	8.5KW	9KW	13.5KW	15KW	17KW	18KW

Construction Details

Exterior: 1.5mm Electrolytic plate with Electrostatic painting
Interior: Matte Stainless steel plate SUS 304
Insulation: Rigid Polyurethane Foam and Glass Fiber Wool
Refrigeration: Hermetic Compressor, Cascade Refrigeration (CFC free)

Compliance Standards

IEC 60068: Environmental tests for electrotechnical products
IEC 61215/61646/62108: Testing standards for photovoltaic solar panels
ISO 10993: Biological evaluation of medical devices
ISO 16750: Environmental testing for automotive electrical equipment
MIL-STD-810: U.S. military environmental testing standard
GLP/GMP: Quality practices for pharmaceutical and life sciences
