Name: Climatic Battery Cell Testing Chamber PWM Control For R&D And Manufacturing
Brand: Guangdong Jianqiao Testing Equipment Co., Ltd.
SKU: JQTH-150
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Power Supply: AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire

Working Conditions: RT To 35℃

Control Method: PWM Control

Temp Uniformity: ±2℃(No-load)

Temp Fluctuation: ±0.5℃(No-load)

Temp Range: Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized.

Highlight:

Climatic Battery Cell Testing Chamber

Battery Cell Testing Chamber PWM Control

Basic Infomation

Place of Origin: China

Brand Name: Jianqiao

Certification: CE

Model Number: JQTH-150

Document: Electrodynamic Vibration Te...25.pdf

Payment & Shipping Terms

Packaging Details: Wooden case

Delivery Time: 20 days

Payment Terms: T/T

Supply Ability: 300 sets /year

Gallery

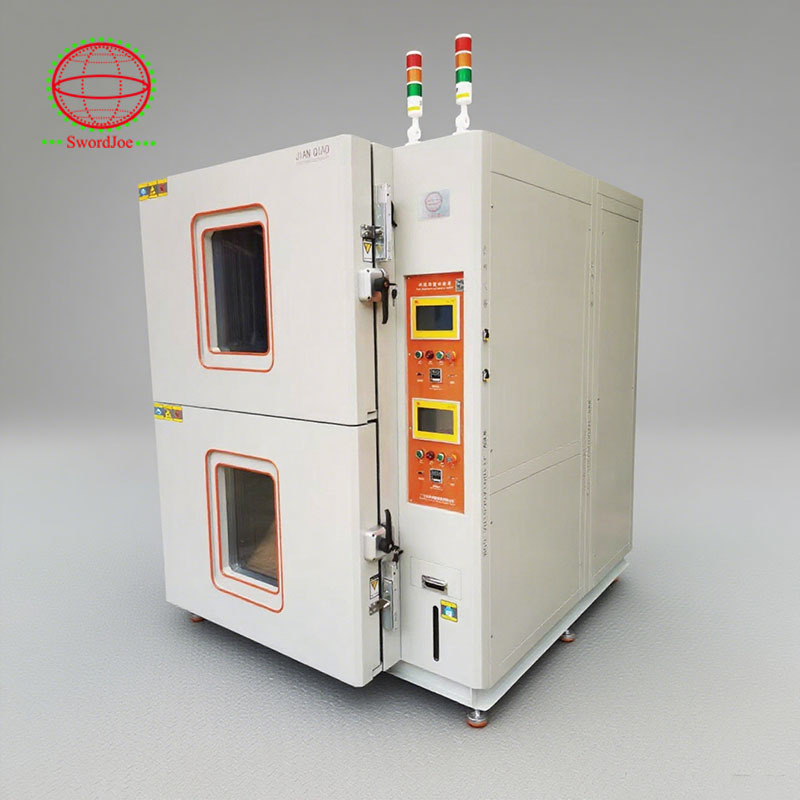

Climatic Battery Cell Testing Chamber PWM Control For R&D And Manufacturing

Product Description

Advanced Climatic Chamber Battery Cell Testing for R&D and Manufacturing

Our battery cell testing climatic chambers are designed to hold up to 12 or 16 cells, making them ideal for rigorous testing. They offer a wide temperature range from -40°C to 90°C and use environmentally friendly CO₂ as a refrigerant.

Key Features

Water-cooled system maintains optimal conditions with even airflow
Minimizes temperature fluctuations for consistent results
Rapid heating and cooling capabilities for various testing scenarios
Energy efficient design with heavy-duty construction
Supports racks with loads up to 500 kg (750 kg option available)

Battery Pack and Fuel Cell Testing Solutions

Our climatic chambers for battery pack and fuel cell testing provide precise temperature control from -40°C to +90°C. Available in 16 m³ or 22 m³ volumes with customizable sizes.

Features include safety flooding capability for battery prototypes, compliance with IEC 60068-3-5 standards, and carefully managed temperature gradients for reliable results.

Compliance Standards

IEC 60068: Environmental tests for electrotechnical products including damp heat, low temperature, thermal shock, and vibration tests.

IEC 61215, IEC 61646, IEC 62108: Standards for photovoltaic solar panel testing including thermal cycles and moist heat.

ISO 10993: Guidelines for biological evaluation of medical devices.

ISO 16750: Environmental conditions for electrical/electronic equipment in road vehicles.

ICH Q1A (R2), ICH Q1B, ICH Q5C: Pharmaceutical stability testing guidelines.

MIL-STD-810: U.S. military standard environmental testing procedures.

JIS C 60068-2-78: Japanese standard for humid/hot environment testing.

GLP and GMP: Good Laboratory and Manufacturing Practices for chemical/pharmaceutical industries.

Technical Specifications

Model	JQTH-100	JQTH-150	JQTH-225	JQTH-408	JQTH-800	JQTH-1000	JQTH-1200	JQTH-1500
Volume (L)	100L	150L	225L	408L	800L	1000L	1200L	1500L
Inner Size (cm)	50×40×50	50×50×60	70×46×70	70×75×80	100×80×100	100×100×100	150×80×100	150×100×100
Power	5.5KW	6KW	8.5KW	9KW	13.5KW	15KW	17KW	18KW
Weight (kg)	300	360	430	530	780	890	1100	1380

Additional Specifications

Temperature Range: Model S: -70°C to +150°C, Model L: -40°C to +150°C (customizable)
Exterior: 1.5mm Electrolytic plate with Electrostatic painting
Interior: Matte Stainless steel plate SUS 304
Insulation: Rigid Polyurethane Foam and Glass Fiber Wool
Refrigeration: Hermetic Compressor, Cascade Refrigeration (CFC free)
Humidity Range: 10% to 98% RH
Temperature Fluctuation: ±0.5°C (No-load)
Temperature Uniformity: ±2°C (No-load)
Controller: TW DELTA PLC, 7" color touch screen with multiple language support
