Constant Temperature And Humidity Test Chamber

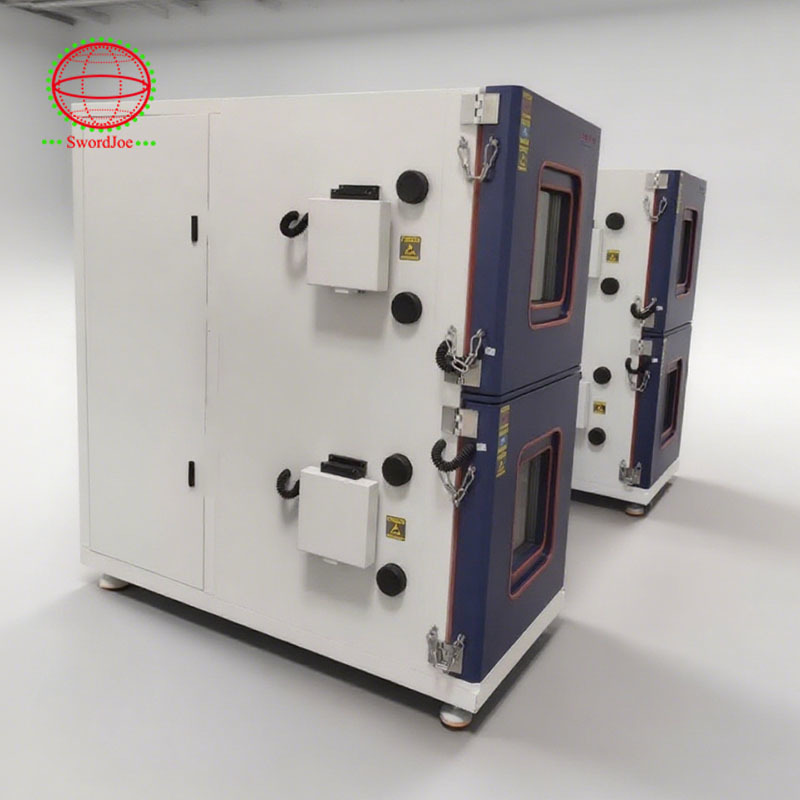

High Precision Accurate Environmental Chamber Temperature Humidity Control Chamber

Brand Name:	Jianqiao
Model Number:	JQTH-150
MOQ:	1
Delivery Time:	20 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Electrodynamic Vibration Te...25.pdf

Power Supply:

AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire

Working Conditions:

RT To 35℃

Control Method:

PWM Control

Temp Uniformity:

±2℃(No-load)

Temp Fluctuation:

±0.5℃(No-load)

Temp Range:

Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized.

Packaging Details:

Wooden case

Supply Ability:

300 sets /year

Highlight:

Accurate Environmental Chamber Temperature Humidity Control

Environmental Temperature Humidity Control Chamber

High Precision Temperature Humidity Control Chamber

Product Description

High-Precision Temperature and Humidity Chamber for Accurate Environmental Testing

An environmental chamber, also called a climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.

Key Applications

Stand-alone testing for environmental effects on test specimens
Preparation of test specimens for further physical or chemical tests
Creating environmental conditions for conducting specimen testing

Our environmental test chambers artificially replicate conditions which machinery, materials, devices or components might be exposed to, including accelerated exposure to extreme environmental factors. Chamber testing involves exposing products to various controlled environmental conditions.

Testing Capabilities

Extreme temperature testing (-70°C to +150°C)
Thermal shock testing (rapid temperature changes)
Altitude simulation
Humidity control (10% to 98% RH)
Vibration testing
Electromagnetic radiation exposure
Cyclic corrosion testing
Salt spray testing
Rain and weathering simulation
UV degradation testing
Vacuum environment testing

Standard Features

Extremely low noise level operation
Low energy consumption design
Independent temperature measurement for specimen safety
Easy-to-clean stainless steel test space (304# 1.2mm)
Wide humidity range for extreme climate simulation
Energy-efficient refrigeration with electronic expansion valve
Specialized humidity generation and control system
Thermal break construction for extreme testing
Includes 3" cable port, two shelves & casters
USB port for program and test data transfer
7"/10" imported DELTA touch screen controller
Optional APP and WLAN connectivity for remote monitoring
English interface standard

Technical Specifications

Model	JQTH-100	JQTH-150	JQTH-225	JQTH-408	JQTH-800	JQTH-1000	JQTH-1200	JQTH-1500
Volume (L)	100L	150L	225L	408L	800L	1000L	1200L	1500L
Inner Size W×D×H (cm)	50×40×50	50×50×60	70×46×70	70×75×80	100×80×100	100×100×100	150×80×100	150×100×100
Temperature Range	Model S: -70°C to +150°C, Model L: -40°C to +150°C (customizable)
Power Supply	AC 220V or AC380V 50Hz 3 PHASE with ground wire

Compliance Standards

IEC 60068: Comprehensive environmental testing standard for electrotechnical products including damp heat, low temperature, and vibration tests.

IEC 61215/61646/62108: Standards for photovoltaic solar panel testing including thermal cycles and moist heat.

ISO 10993: Guidelines for biological evaluation of medical devices.

MIL-STD-810: U.S. military standard for environmental testing procedures.

ICH Q1A (R2), Q1B, Q5C: Pharmaceutical industry guidelines for stability testing.
