products details

Home Products

Constant Temperature And Humidity Test Chamber

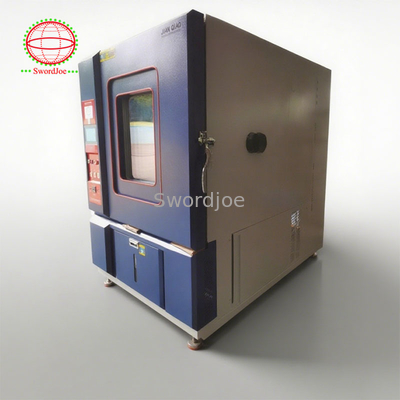

Stand Alone Constant Temperature And Humidity Test Chamber 150L Volume 6KW Power

Brand Name:	Jianqiao
Model Number:	JQTH-150
MOQ:	1
Delivery Time:	20 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Electrodynamic Vibration Te...25.pdf

Power Supply:

AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire

Working Conditions:

RT To 35℃

Control Method:

PWM Control

Temp Uniformity:

±2℃(No-load)

Temp Fluctuation:

±0.5℃(No-load)

Temp Range:

Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized.

Packaging Details:

Wooden case

Supply Ability:

300 sets /year

Highlight:

Constant Temperature And Humidity Test Chamber 150L

Constant Temperature And Humidity Test Chamber 6KW

Stand Alone Temperature Humidity Test Chamber

Product Description

Advanced Temperature and Humidity Chamber for Reliable Product Testing

An environmental chamber, also called a climatic chamber or climate chamber, is an enclosure used to test the effects of specified environmental conditions on biological items, industrial products, materials, and electronic devices and components.

Primary Applications

Stand-alone testing for environmental effects on test specimens
Preparation of test specimens for further physical or chemical tests
Creating environmental conditions for conducting specimen testing

Environmental test chambers artificially replicate conditions which machinery, materials, devices or components might be exposed to, often accelerating environmental effects in controlled laboratory conditions.

Testing Capabilities

Extreme temperatures and sudden temperature variations (thermal shock)
Altitude simulation and humidity control (10-98% RH)
Electrodynamic vibrations and electromagnetic radiation
Cyclic corrosion testing and salt spray exposure
Rain, weathering, and UV degradation testing
Vacuum environment simulation

Standard Features

Extremely low noise level operation
Energy-efficient design with low consumption
Independent temperature measurement for specimen safety
Easy-to-clean stainless steel test space (304# 1.2mm)
Wide humidity range for extreme climate simulation
Energy-efficient refrigeration with electronic expansion valve
Specialized humidity generation and control system
Thermal break construction for extreme testing
Includes 3" cable port, two shelves, and casters
USB port for program and data transfer
7"/10" imported DELTA touch screen controller
Optional APP and WLAN connectivity for remote access
English interface standard

Technical Specifications

Model	JQTH-100	JQTH-150	JQTH-225	JQTH-408	JQTH-800	JQTH-1000	JQTH-1200	JQTH-1500
Volume (L)	100L	150L	225L	408L	800L	1000L	1200L	1500L
Inner Size (cm)	50×40×50	50×50×60	70×46×70	70×75×80	100×80×100	100×100×100	150×80×100	150×100×100
Temperature Range	Model S: -70°C to +150°C, Model L: -40°C to +150°C (customizable)
Power	5.5KW	6KW	8.5KW	9KW	13.5KW	15KW	17KW	18KW

Compliance Standards

IEC 60068: Covers environmental tests for electrotechnical products including damp heat, low temperature, and vibration tests.

IEC 61215/61646/62108: Standards for photovoltaic solar panel testing including thermal cycles and moist heat.

ISO 10993: Guidelines for biological evaluation of medical devices.

MIL-STD-810: U.S. military standard for environmental testing procedures.

GLP/GMP: Good Laboratory/Manufacturing Practices for consistent testing and process control.
