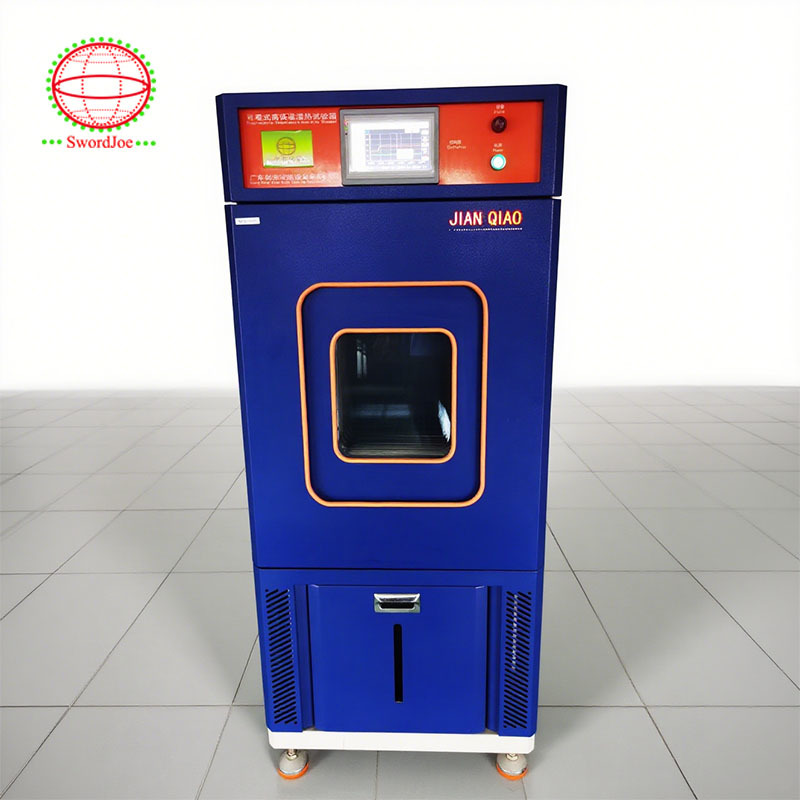

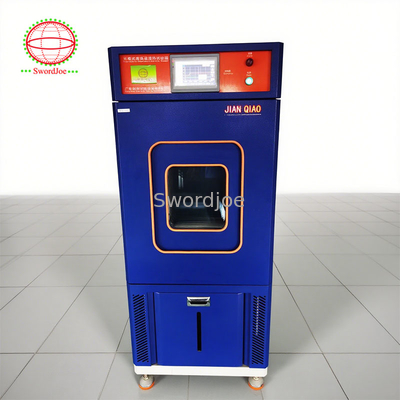

High Precision Climatic Constant Temperature And Humidity Test Chamber For Quality Control
Product Details
| Power Supply: | AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire | Working Conditions: | RT To 35℃ |
|---|---|---|---|
| Control Method: | PWM Control | Temp Uniformity: | ±2℃(No-load) |
| Temp Fluctuation: | ±0.5℃(No-load) | Temp Range: | Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized. |
| Highlight |
High Precision Constant Temperature And Humidity Test Chamber,Climatic Constant Temperature And Humidity Test Chamber,High Precision Climatic Test Chamber |
||
Product Description
- Testing environmental effects: Simulate extreme temperatures, humidity levels, and other factors to evaluate product behavior
- Test specimen preparation: Condition items for further physical or chemical testing
- Real-world simulation: Replicate environments like high altitudes, deserts, or fluctuating humidity/temperature conditions
- Precise environmental control: Temperature range from -70°C to +180°C and humidity from 10% to 98% RH
- Multiple configurations: Various sizes available to accommodate different testing needs
- Specialized applications: Custom designs for battery testing, fuel cells, plant growth, and more
- Electronics component testing under varying conditions
- Material durability assessment in extreme weather
- Pharmaceutical stability and shelf life testing
- Battery performance and safety evaluation
- Automotive component testing in diverse climates
- Extremely low noise level operation
- Energy-efficient design with low consumption
- Independent temperature measurement for specimen safety
- Easy-to-clean stainless steel test space (304# 1.2mm)
- Wide humidity range for extreme climate simulation
- Energy-efficient refrigeration with electronic expansion valve
- Specialized humidity generation and control system
- Thermal break construction for extreme testing
- Includes 3" cable port, two shelves, and casters
- USB port for program and test data transfer
- 7"/10" imported DELTA touch screen controller
- Optional APP and WLAN connectivity for remote access
- English interface standard
- IEC 60068: Environmental tests for electrotechnical products
- IEC 61215/61646/62108: Photovoltaic solar panel testing standards
- ISO 10993: Biological evaluation of medical devices
- ISO 16750: Environmental testing for automotive electronics
- ICH Q1A (R2)/Q1B/Q5C: Pharmaceutical stability guidelines
- MIL-STD-810: Military environmental testing procedures
- JIS C 60068-2-78: Japanese industrial standard for humid/hot environments
- GLP/GMP: Good Laboratory/Manufacturing Practices
| Model | JQTH-100 | JQTH-150 | JQTH-225 | JQTH-408 | JQTH-800 | JQTH-1000 | JQTH-1200 | JQTH-1500 |
|---|---|---|---|---|---|---|---|---|
| Volume (L) | 100L | 150L | 225L | 408L | 800L | 1000L | 1200L | 1500L |
| Inner Size W×D×H (cm) | 50×40×50 | 50×50×60 | 70×46×70 | 70×75×80 | 100×80×100 | 100×100×100 | 150×80×100 | 150×100×100 |
| Outer Size W×D×H (cm) | 70×125×157 | 70×135×167 | 90×157×185 | 90×188×195 | 120×185×215 | 120×205×215 | 200×135×215 | 200×155×215 |
| Power (KW) | 5.5 | 6 | 8.5 | 9 | 13.5 | 15 | 17 | 18 |
| Weight (kg) | 300 | 360 | 430 | 530 | 780 | 890 | 1100 | 1380 |
- Temperature Range: Model S: -70°C to +150°C, Model L: -40°C to +150°C (customizable)
- Materials: Exterior - 1.5mm electrolytic plate with electrostatic painting; Interior - Matte stainless steel SUS 304
- Insulation: Rigid polyurethane foam and glass fiber wool
- Refrigeration: Hermetic compressor, cascade system (CFC-free: HFC-R404A/HFC-23/HFC-R449/HFC-507)
- Control: PWM control method
- Humidity Range: 10% to 98% RH
- Temperature Stability: ±0.5°C (no-load)
- Temperature Uniformity: ±2°C (no-load)
- Cooling Rate: +150°C to -70°C at 0.8°C-1°C/min (non-linear)
- Heating Rate: -70°C to +150°C at 1°C-3°C/min (non-linear)
- Controller: TW DELTA PLC with 7" color touch screen (Chinese/English/Russian)
- Standard Accessories: Observation window, cable ports (￠50mm×2), shelves (2), chamber lamp, power cable (2m)
- Safety Features: Comprehensive protection system including no-fuse breaker, over-pressure/load/current/temp protection, dry heat protector, fault warning, and water shortage protection
- Interfaces: USB, WLAN, RS232/R485 (optional APP functionality)
- Power Supply: AC 220V or AC380V 50Hz 3 PHASE with ground wire
