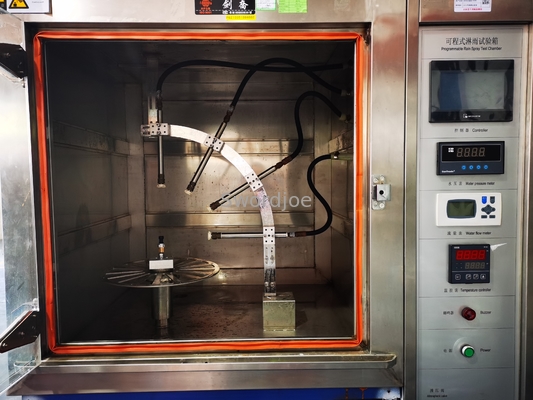

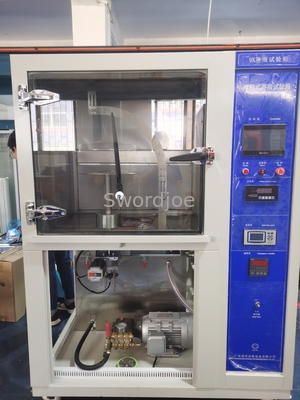

0.4mm Nozzle Size Rain Test Chamber IPX1 IPX2 IPX3 IPX4 IPX5 IPX6 IPX7 IPX8 IPX9
Product Details
| Applications: | Automotive, Aerospace, Electronics, Construction | Nozzle Size: | 0.4mm |
|---|---|---|---|
| Studio Temperature Range: | RT | Standard: | IEC60529, GB/T4208-2008, ISO20653-2013 |
| Highlight |
Rain Test Chamber IPX1,Rain Test Chamber IPX2 |
||
Product Description
-
This is the core of the chamber, responsible for generating and directing the simulated rainfall. The system can vary in complexity and performance depending on the specific testing requirements.
-
A control system manages the water flow rate, pressure, temperature, and duration of the simulated rain test.
-
This enclosure houses the product being tested and provides a controlled environment.
-
Some chambers include features like temperature and humidity control, adjustable spray angles, and the ability to create different types of rainfall (e.g., drops, sprays, jets).
- The product to be tested is placed inside the chamber's enclosure.
- The control system is programmed to simulate the desired rain conditions, such as water flow rate, pressure, and duration.
- The water spray system generates the simulated rainfall, exposing the product to the specified conditions.
- Throughout the test, the control system monitors and adjusts the parameters to maintain accuracy and repeatability.
- After the test, the product is inspected for any signs of water ingress, damage, or performance degradation.
-
Evaluating the water resistance of vehicle components, such as headlights, door seals, and electrical systems.
-
Testing the water resistance of electronic devices, including smartphones, laptops, and other portable devices.
-
Assessing the durability of outdoor lighting, satellite dishes, and other products exposed to the elements.
-
Testing the water resistance of components used in aircraft and spacecraft.
-
Ensuring products meet specific IP (Ingress Protection) ratings and other relevant standards for water resistance.
-
Rain test chambers provide a controlled and repeatable environment to simulate real-world rain conditions.
-
They help identify potential weaknesses and ensure products can withstand rain exposure.
-
They enable manufacturers to meet industry standards and certifications for water resistance.
-
Testing in a rain chamber can help identify and address design flaws before products reach the market.
The programmable rain test chamber is suitable for electrical and electronic products (including components), lighting products, automotive and motorcycle parts and seals, etc., for enclosure protection level test (IP waterproof rating test), simulating the transportation and use of its products.
Feature
1. The scientific design enables the device to provide realistic simulations of watering, splashing and water immersion.
2. The control system of the whole instrument and the adoption of frequency conversion technology make the rainfall, the rotation angle of the sample rack,
the swing angle of the water swing swing and the water spray amount, and the swing frequency can be freely set and adjustble
Satndard
The equipment complies with the international standard IEC60529, national standard GB/T4208-2008, international standard ISO20653-2013 and other testing standards "enclosure protection level (IP code)", applicable to products for IP level IPX1, IPX2, IPX3, IPX4, IPX5, IPX6,IPX7,IPX8,IPX9 waterproof test to meet the relevant test requirements of IP protection level
| IPX1+IPX2 , IPX3+IPX4 , IPX1+IPX2+ IPX3+IPX4 | ||||
| Model | JQR-500 | JQR-800 | JQR-1000 | JQR-1800 |
| Internal dimensions(W·H·D)(mm) | 500*500*500 | 800*800*800 | 1000*1000*1000 | 1000*1500*1200 |
| waterproof level | IPX1,IPX2/ IPX3,IPX4 | IPX1,IPX2/ IPX3,IPX4 | IPX1,IPX2/ IPX3,IPX4 | IPX1,IPX2/ IPX3,IPX4 |
| Studio temperature range | RT | RT | RT | RT |
| Nozzle diameter | 0.4mm | 0.4mm | 0.4mm | 0.4mm |
| The main technical parameters | Water spray hole spacing 50mm Swing tube inner diameter 15mm The diameter of the turntable is 600mm (can be equipped with 200mm, 400mm table top) Flow rate 0-3L/min Pendulum angle 120° (IPX3), 350° (IPX4) or custom settings Swing tube swing speed 240° back and forth 4s, 720° back and forth 12s (precise control) or custom settings Turntable lifting height 550-1000mm The turntable bears about 50Kg Turntable speed 1-5r/min (adjustable accuracy) |
|||
Product Highlights
A rain test chamber is a specialized environmental test chamber designed to simulate rainfall conditions for evaluating the performance and durability of products under wet conditions. These chambers are used to assess how well products resist water ingress, ensuring they can withstand rain exposure ...
