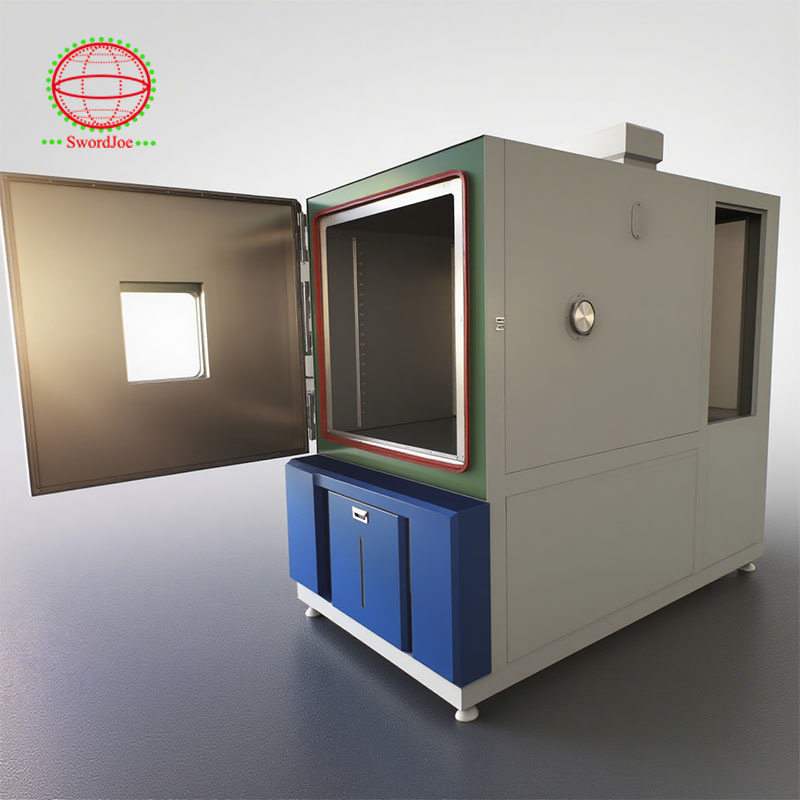

Temperature Humidity Altitude Test Chamber For Product Testing AC380V 50Hz

1
MOQ
Temperature Humidity Altitude Test Chamber For Product Testing AC380V 50Hz
Features Gallery Product Description Chat Now
Features
Specifications
Humidity Range: 20% To 98% RH
Interior Material: Stainless Steel Plate SUS304
Power Supply: AC380V 50Hz
Temp Fluctuation: ±0.5℃
Air Pressure Range: Normal Pressure To ~1kPa
Configuration Interface: USB, WLAN, RS232 Port (APP Function Optional)
Temp Cooling Rate: 0.7℃~1℃/min
Temp Rising Rate: 0.7℃~1℃/min
Highlight:

Altitude Test Chamber AC380V

,

Product Altitude Testing Chamber

,

Altitude Test Chamber 50Hz
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQTA-225
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 5 WEEKS
Payment Terms: T/T
Supply Ability: 300/YEAR
Product Description
Affordable Temperature, Humidity, and Altitude Chamber for Product Testing
Our altitude chambers simulate high-altitude, low-pressure environments for comprehensive product testing. These chambers meet international standards including the UN Manual of Tests and Criteria, enabling low-pressure tests required for air transport certification. With precise temperature and pressure control, they provide reliable testing for product development, qualification, and safety evaluations across multiple industries.
Common Applications
  • Avionics and aerospace equipment testing under simulated flight conditions
  • Simulation of high-altitude environments similar to mountainous regions
Key Features
  • Temperature range from -70°C to 170°C
  • Altitude simulation from ground level to 100,000 feet
  • Optional humidity control (when altitude system is inactive)
  • Customizable chamber interior dimensions
  • Automatic altitude control integrated with temperature controller
  • Vacuum pump sized for required climb/dive rates
  • Available with viewing window and cable ports
Compatible Test Standards
  • Mil-Std 202G (conditions 105C, A/B/C/F)
  • Mil-Std 810G (condition 500.5)
  • IEC 60068-2-39
  • IEC 60068-2-40
  • RTCA/DO-160F
  • JIS W 0812
Technical Specifications
Model JQTA-225 JQTA-504 JQTA-1000 JQTA-1700 JQTA-3400
Inner size (cm) 50×75×65 80×70×90 100×100×100 195×315×516 407×210×407
Volume (L) 225L 504L 1000L 1700L 3400L
Temperature Range L type: -40°C to 150°C
S type: -70°C to 150°C (customizable)
Humidity Range 20% to 98% RH
Temperature Fluctuation ±0.5°C
Cooling Rate 0.7°C to 1°C/min
Heating Rate 0.7°C to 1°C/min
Interior Material Stainless steel plate SUS304
Air Pressure Range Normal pressure to ~1kPa
Controller TW DELTA PLC, 7" or 10" color touch screen
Compressor French Tecumseh, Germany Bitzer, or Bock brand
Power Supply AC380V @50Hz
Additional Options & Notes
  • Low GWP refrigerants available (R449a, R448a, R508B)
  • Performance data based on ambient temperature of +26°C and 415V/50Hz nominal voltage
  • Specifications apply without test specimen or accessories
Contact us with your specific test requirements and we'll provide a tailored system solution for your application.
