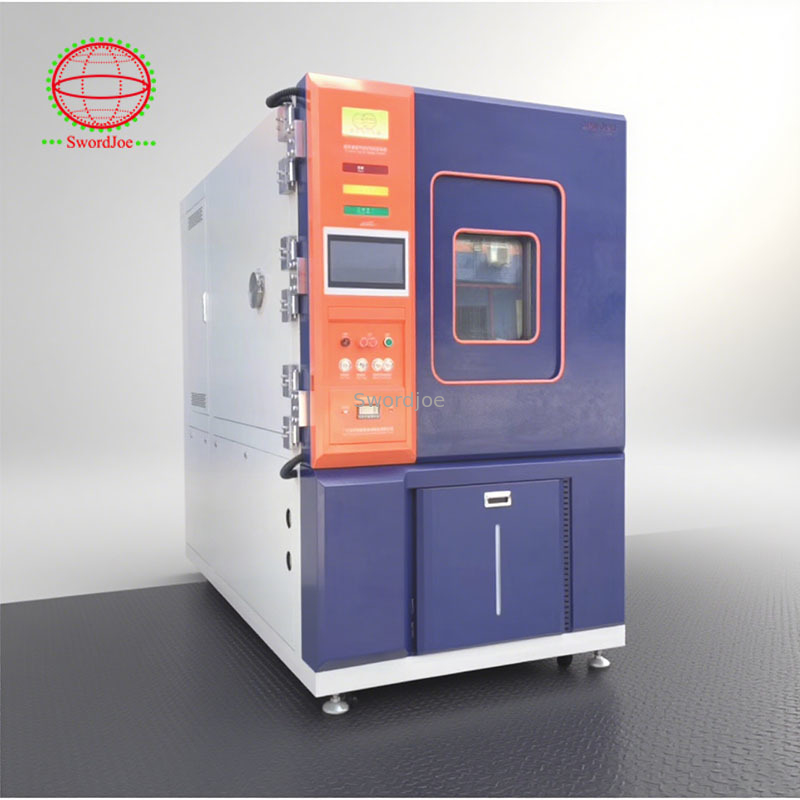

Precise Altitude Test Chamber 100000 Ft Temperature Humidity & Altitude Chamber
Product Details
| Humidity Range: | 20% To 98% RH | Interior Material: | Stainless Steel Plate SUS304 |
|---|---|---|---|
| Power Supply: | AC380V 50Hz | Temp Fluctuation: | ±0.5℃ |
| Air Pressure Range: | Normal Pressure To ~1kPa | Configuration Interface: | USB, WLAN, RS232 Port (APP Function Optional) |
| Temp Cooling Rate: | 0.7℃~1℃/min | Temp Rising Rate: | 0.7℃~1℃/min |
| Highlight |
Precise Altitude Test Chamber,Altitude Test Chamber 100000 Ft,Temperature Altitude Chamber |
||
Product Description
Altitude Test Chambers can test products at varying temperatures and altitudes up to 100,000 feet with an optional humidity add-on to precisely simulate real-life conditions. Standard safety features include a cam action lock, internal pressure liner, and interlocked heaters. Our Altitude Chambers are ideal for military, aerospace, automotive, electronics, and other industrial applications.
- Altitude Range up to 100,000 ft (30.5 km; 8 torr)
- Standard* Range of Sizes: 4 to 96 ft³ (113 to 2,718 Liters)
- Temperature Range: -73°C to 177°C (-100°F to 350°F)
- 2700 Controller
- Worldwide Service and Support
- Extended Altitude Range up to 150,000 ft (45.7 km; 1 torr)
- Humidity System (range from 20% to 95% RH)
- Humidity Water Purification System
- Remote Air-Cooled Condenser
- Heat-Tempered, Multi-Pane Window with Bars
- Interior Light
- Shelves
- Access Ports
- Casters
- Refrigeration Quiet Package
- Electrical Disconnect Switch
- Chart Recorder
- CE Compliant
- External Pressure Member
Thermotron's exclusive 2700 Controller, with 12" color touchscreen, makes chamber operation and data collection easy and reliable. Quick navigation buttons provide shortcuts to user-selected screens. The 2700 Controller is standard on all Altitude Chambers.
With this Controller, receive:
- Multi-level, password-based security system to protect data
- Test data can be downloaded to spreadsheet formats
- An Activity Log: record and retain 15+ years of chamber history
- Product Temperature Control to improve product change rates by over-compensating the air temperature to control the product temperature
- The System Monitor to detect excessive refrigeration pressures and temperatures and notify users when problems occur
| Model | JQTA-225 | JQTA-504 | JQTA-1000 | JQTA-1700 | JQTA-3400 |
|---|---|---|---|---|---|
| Inner size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 | 407*210*407 |
| Outer size (cm) | Subject to the actual weight | ||||
| Volume (L) | 225L | 504L | 1000L | 1700L | 3400L |
| Temp.Range | L type:-40℃~150℃ S type:-70℃~150℃ customized | ||||
| Humidity range | 20% to 98% RH | ||||
| Temp Fluctuation | ±0.5℃ | ||||
| Temp variation in space | No-load at atmospheric pressure ±3℃ (≥100℃),±2℃ (≤100℃) | ||||
| Temp cooling rate | 0.7℃~1℃/min | ||||
| Temp rising rate | 0.7℃~1℃/min | ||||
| Weight(kg) | Subject to the actual weight | ||||
| Exterior material | Standard 1.5mm Electrolytic plate Electrostatic painting | ||||
| Interior material | Stainless steel plate sus304 | ||||
| Air pressure range | normal pressure to ~1kPa | ||||
| Pressure error | PWM control technology cold-end | ||||
| Depressurization rate | ≧40kPa,±2kPa,4kPa~40kPa,±0.5kPa,≦4kPa,±0.1kPa | ||||
| Pressure recovery | Normal pressure to 1kPa≦30min | ||||
| Controller | TW DELTA PLC,7" or 10" color touch screen control | ||||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | ||||
| Compressor | French Tecumseh or Germany Bitzer brand or Bock | ||||
| Power supply | AC380V @50Hz | ||||
