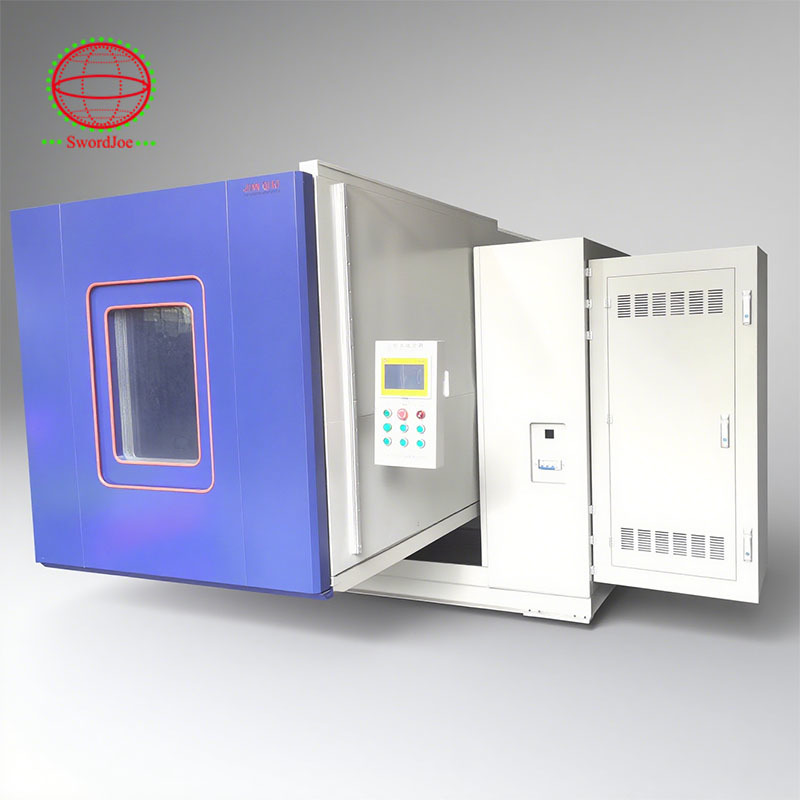

Environmental Agree Test Chamber For Temperature Humidity Simulation
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Environmental Agree Test Chamber,Temperature Agree Test Chamber,Humidity Agree Test Chamber |
||
Product Description
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
The Ultimate Agree Chamber is a specialized environmental test chamber designed for simultaneous temperature, humidity, and vibration simulation. This essential testing equipment subjects products to combined environmental stresses, making it invaluable for reliability testing in aerospace, automotive, and electronics industries.
- Combined Environment Testing: Simultaneous temperature, humidity, and vibration testing reduces overall testing time compared to sequential methods.
- Versatile Operation: Can interface with existing vibration shakers or function as standalone temperature/humidity chambers.
- Customizable Configurations: Adaptable to specific test requirements including temperature ranges, humidity levels, and vibration profiles.
- Advanced Controls: User-friendly interfaces with modern control systems for easy operation and integration.
- Efficient Refrigeration: Advanced systems provide precise temperature control while extending compressor lifespan.
- Comprehensive Safety: Built-in safety cutouts protect both the chamber and test specimens during operation.
- Data Monitoring: Sophisticated data logging capabilities enable detailed analysis of test results.
- Aerospace: Reliability testing of aircraft components under extreme conditions.
- Automotive: Durability assessment of ECUs and other components in harsh environments.
- Electronics: Performance evaluation of devices under combined environmental stresses.
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D:-70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃ /Min or Optional specified | |||
| Heating Rate | Standard 3℃ /Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Exterior Material | 1.2mm Electrolytic plate with Electrostatic spray paint | |||
| Interior Material | SUS 304# Stainless steel plate | |||
| Controller | TW DELTA PLC, 7" or 10" color touch screen | |||
| Compressor | French Tecumseh or German Bitzer/Bock | |||
| Power Supply | AC380V @50Hz | |||
