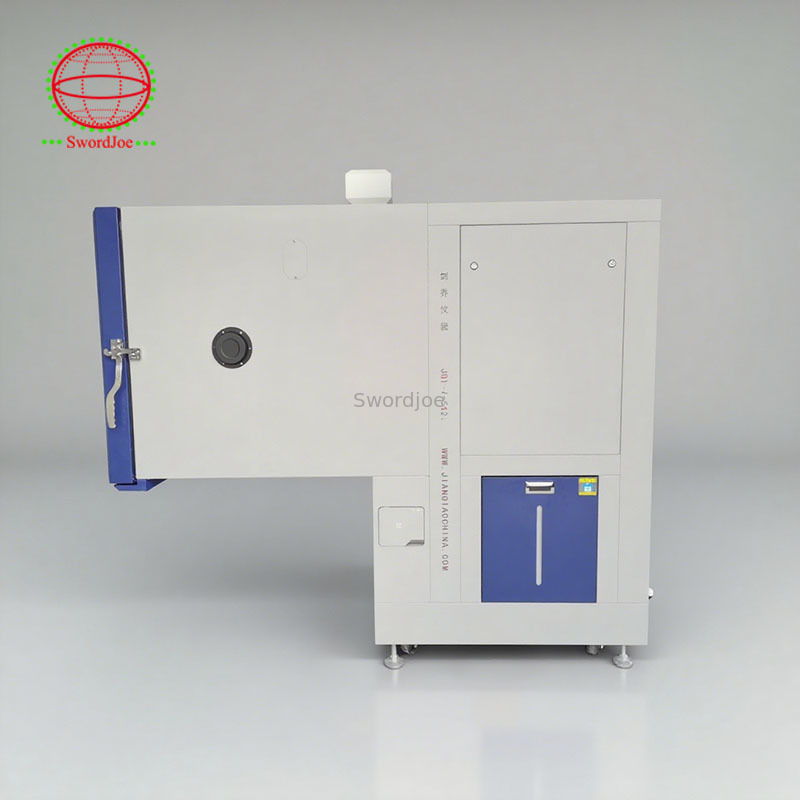

State Of The Art AGREE Testing Chamber Customizable For Environmental Testing
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
AGREE Testing Chamber Customizable,Environmental AGREE Testing Chamber |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
- Removable chamber-to-shaker interface for easy test item loading/unloading
- Optional chamber lift system for multi-axis testing
- Optional solid floor plug for non-vibration testing
- Brushed 304 series stainless steel liner, heliarc welded and dye checked
- Fiberglass insulation with .25k factor
- Welded steel frame construction
- Full-opening chamber door with dual gaskets
- Removable access panels for serviceable components
- Durable blue enamel finishes (custom colors available)
- Multipane tempered heated window
- Microprocessor temperature/humidity programmer
- Single stage refrigeration: -22°F/-30°C to 356°F/180°C
- Cascade refrigeration: -100°F/-73°C to 356°F/180°C
- Change rates from 9°F/5°C/min to 36°F/20°C/min
- Humidity range: 10% to 95% RH (185°F/85°C max dry bulb, 40°F/4°C min dewpoint)
- Low or zero ozone depletion refrigerants
- Energy saving refrigeration bypass capacity control
- Low stage desuperheater
- Oil pressure switches
- Compressor suction and discharge pressure switches
- Water cooled condenser
- ASME certified vapor tank and condenser
- Compressor overload protection
- High stage compressor crankcase heater
- Compressor head fans
- Low stage oil separator
- All piping joints silfos or silver soldered
- Stainless steel compressor condensate pans
- All wiring meets NEC standards
- 120v control circuit transformer
- Fully enclosed electrical panel
- All circuits fused or circuit breaker protected
- Full system function switches with system status pilot lights
- Incandescent interior lighting
- All wiring numbered or color coded
- High Temperature limit safety
- Master heating circuit contactor
- Air circulator/heater interlock
- Balanced load on three phase power
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to actual weight | |||
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D:-70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃/Min or optional specified | |||
| Heating Rate | Standard 3℃/Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg for chooses or specified | |||
| Displacement (mm) | Please see vibration shaker details | |||
| Max Load (kg) | Please see vibration shaker details | |||
| Exterior Material | 1.2mm Electrolytic plate Electrostatic spray paint | |||
| Interior Material | SUS 304# Stainless steel plate | |||
| Floor Load Resistance | Customized | |||
| Languages | Chinese, English, Russian | |||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | |||
| Configuration Interface | USB, WLAN, RS232 port, APP function optional | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power Supply | AC380V @50Hz | |||
