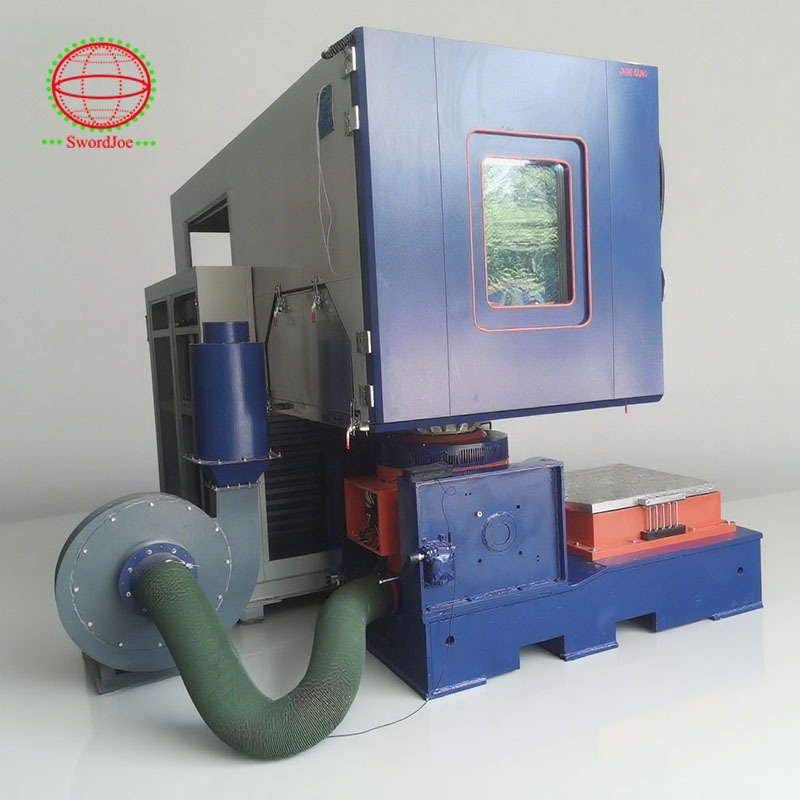

380V AC Agree Chamber Stainless Steel For Stress Testing Quality Control
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Agree Chamber Stainless Steel,380V AC Agree Chamber,380V AC Stress Testing Chamber |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
The AGREE (Advisory Group on Reliability of Electronics Equipment) testing method was originally developed by the Department of Defense for military equipment reliability testing. Today, these chambers are widely used across multiple industries for comprehensive environmental stress testing.
Key Features:
- Compatible with electrodynamic or mechanical vibration systems
- Available in horizontal and vertical operation modes
- Fully customizable configurations including two-sided doors, vertical lifts, and rear sliding doors
- Allows simultaneous testing of three environmental conditions, reducing testing costs
- Accelerates design and production processes, reducing time to market
- Specialized floor design accommodates various shaker heads for diverse applications
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to the actual weight | |||
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D:-70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃/Min or Optional specified | |||
| Heating Up Rate | Standard 3℃/Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg for chooses or specified (300kg~35t) | |||
| Displacement (mm) | Please see vibration shaker details | |||
| Max.Load (kg) | Please see vibration shaker details | |||
| Exterior material | Standard 1.2mm Electrolytic plate Electrostatic spray paint | |||
| Interior material | SUS 304# Stainless steel plate | |||
| Floor load resistance | Customized | |||
| Languages | Chinese, English, Russian | |||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | |||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power supply | AC380V @50Hz | |||
