Dependable Agree Chamber Machine For Accurate Results In Harsh Conditions
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Dependable Agree Chamber,Accurate Agree Chamber,Accurate Agree Machine |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
AGREE chambers are specialized environmental testing equipment that combine temperature, humidity, and vibration testing capabilities. Originally developed to meet US military specifications, these chambers remain essential for rigorous product testing in harsh conditions.

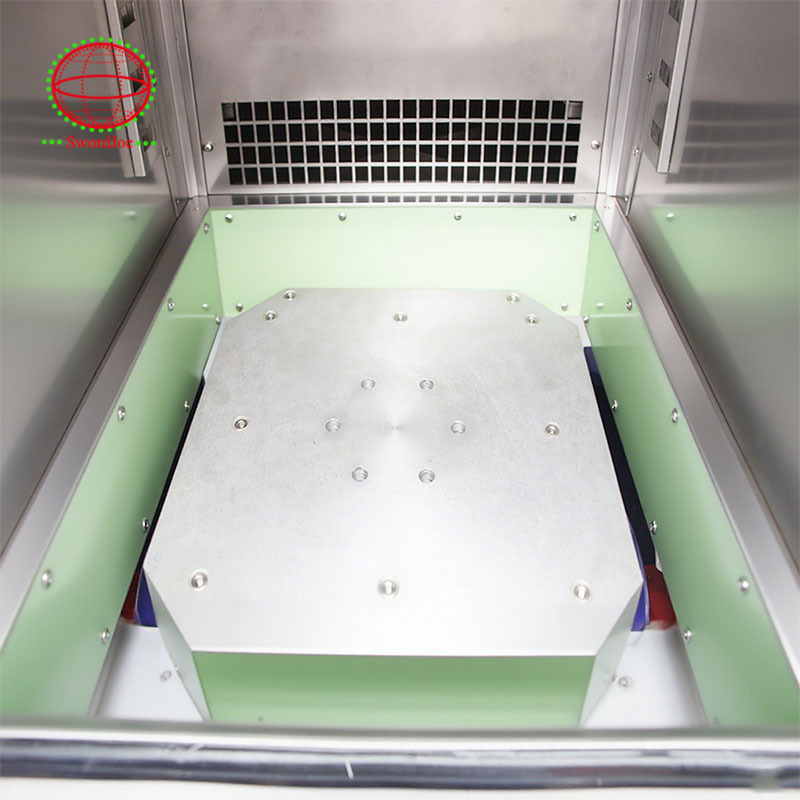

Our AGREE chambers feature a unique design with open space underneath and a special removable floor (diaphragm floor plug) to accommodate vibration shakers. This innovative design allows for:
- Flexible integration with various vibration shaker systems
- Custom configurations for specific testing requirements
- Maintenance of air-tight seals during testing
- Wire heaters in the frame prevent frosting during extreme cold tests
- Integrated drains remove accumulated moisture from humidity tests
- Two-layer diaphragm floor plug with silicone sheet and dense-cell foam
- Customizable to work with specific shaker systems
- Robust stainless steel construction for durability
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D:-70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃/Min or Optional specified | |||
| Heating Rate | Standard 3℃/Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Exterior Material | 1.2mm Electrolytic plate with Electrostatic spray paint | |||
| Interior Material | SUS 304# Stainless steel plate | |||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | |||
| Power Supply | AC380V @50Hz | |||
