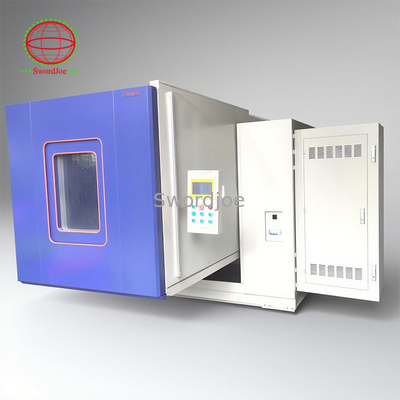

Laboratory Agree Chamber Testing Equipment 0.8 - 1.5°C/Min Temperature Cooling Rate
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Laboratory Agree Chamber,Agree Chamber 1.5°C/Min,Laboratory Agree Testing Equipment |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
AGREE chambers have been the industry standard for environmental testing, originally developed to meet military standards. Their versatile design makes them suitable for diverse applications, featuring:
- Rapid temperature changes of 5 to 25°C/min, even with significant loads
- Removable floor for integration with vibration test systems
- Special model EADX52 compatible with both vertical and horizontal vibration systems
- ETL-listed electrical panel conforming to UL 508A
The intuitive touch-screen controller simplifies operation with its full-color interface. Remote management is available via Ethernet/LAN-based Web Controller or RS-232 serial port.
Nearly every AGREE chamber is custom-designed for specific applications, with options for:
- Full-opening door with silicone gaskets and cam latch
- Recessed interior lighting
- Exterior painted in ESPEC slate blue and gray
- Changeable chamber floor with Teflon glides for easy replacement
- Standard diaphragm floor plug for vertical vibration (other options available)
- Custom models for vertical/horizontal movement with combo-base vibration systems
- Plenum with cooling coil and nichrome wire heaters
- ¾ hp blower motors with stainless steel shafts
- Non-CFC cascade refrigeration system with Copeland Scroll or Discus compressors
- Automatic water regulator for water-cooled models
- Humidity models include steam generator and dehumidification coil
- Right-mounted instrumentation console
- Three levels of overheat protection
- Main power disconnect switch
- Specimen power interlock relay for protection
- User-friendly 6.5" color touch-screen operation
- USB functionality for program transfer and data logging
- Stores 40 programs (up to 99 steps each)
- Trend-graph display for monitoring setpoints and actual values
- Two time signal relays for automated device control
- System alarm memory for historical review
- Built-in timer functions for automated operation
- Pattern Manager Lite PC software for program editing
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D:-70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃/Min or optional specified rate | |||
| Heating Rate | Standard 3℃/Min or specified rate | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Exterior Material | 1.2mm Electrolytic plate with electrostatic spray paint | |||
| Interior Material | SUS 304# Stainless steel plate | |||
