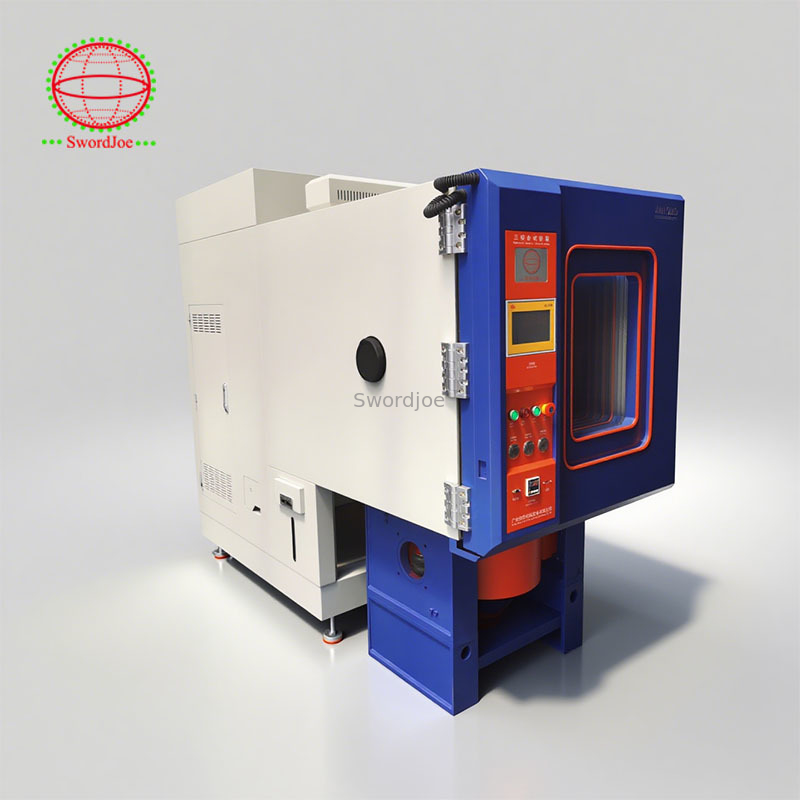

Stainless Steel Agree Test Chamber For Laboratory Industrial Applications
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Industrial Agree Test Chamber,Laboratory Agree Test Chamber |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to the actual weight | |||
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D: -70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃ /Min or Optional specified | |||
| Heating Up Rate | Standard 3℃ /Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg for chooses or specified (300kg~35t) | |||
| Displacement (mm) | Please see vibration shaker details | |||
| Max.Load (kg) | Please see vibration shaker details | |||
| Exterior material | Standard 1.2mm Electrolytic plate Electrostatic spray paint | |||
| Interior material | SUS 304# Stainless steel plate | |||
| Floor load resistance | Customized | |||
| Languages | Chinese, English, Russian | |||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | |||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power supply | AC380V @50Hz | |||
Product Highlights
Advanced Agree Chamber for Laboratory & Industrial Applications Product Specifications Attribute Value Certifications CE, ISO 9001:2008 Power Source 380V AC 50/60Hz Internal Material Stainless steel (SUS304) Inner Chamber 1000*1000*1000 Temperature cooling rate 0.8~1.5°C/Min Frequency Range 3-2000Hz ...
Industrial Vibration Table For Automotive Electronics And Construction Industries
Industrial Vibration Table Designed for rigorous vibration resistance testing, this industrial vibration table is widely used across automotive, electronics, and construction industries to ensure product durability under transport conditions. Key Specifications Frequency: 2000Hz Sine force: 50kN / 5000kg Random force: 50kN / 5000kg Shock force: 98kN / 9800kg / 9918lbf Channel options: 2/4/8/16 Maximum acceleration: 100g Maximum displacement: 100mm (4") / 76mm (3") / 51mm (2")
Digital Control Hydraulic Shock Test System For ISTA Package Test
Hydraulic Shock Test System for ISTA Package Test IS Shock Test Machine The Shock Test Machine is a high-acceleration testing system specifically designed to meet military industry and home appliance testing requirements. Utilizing drop principle technology with air pressure reverse thrust or spring energy storage, it achieves various acceleration levels through adjustable inflation pressure. For higher accelerations, the system includes a waveform amplifier. This automatic
AC380V 50Hz Temperature Humidity Altitude Chamber environmental testing chamber
Reliable Temperature, Humidity, & Altitude Chamber for Quality Testing The Temperature, Humidity, and Altitude Chamber is a state-of-the-art testing solution designed to simulate a variety of environmental conditions for research, product testing, and quality control. These chambers offer precise control over temperature, humidity, and altitude levels, making them ideal for industries such as aerospace, automotive, electronics, and pharmaceuticals. Key Features Programmable
2000Hz Horizontal Slip Table Vibration Testing Humidity Range ≤90%
Slip Table for Vibration Shaker System A slip table in vibration testing is an auxiliary table used with a vibration exciter (shaker) to transmit motion in the horizontal direction. It's essential for testing specimens in a horizontal orientation, particularly when the specimen's orientation must be maintained throughout the test. Slip tables also enable testing of large and heavy specimens that might exceed the capacity of the shaker's vertical table.Key Functions and
