Environmental AGREE Testing Chamber 380V AC For Controlled Testing Environments
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Environmental AGREE Testing Chamber,AGREE Testing Chamber 380V AC |
||
Product Description
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |

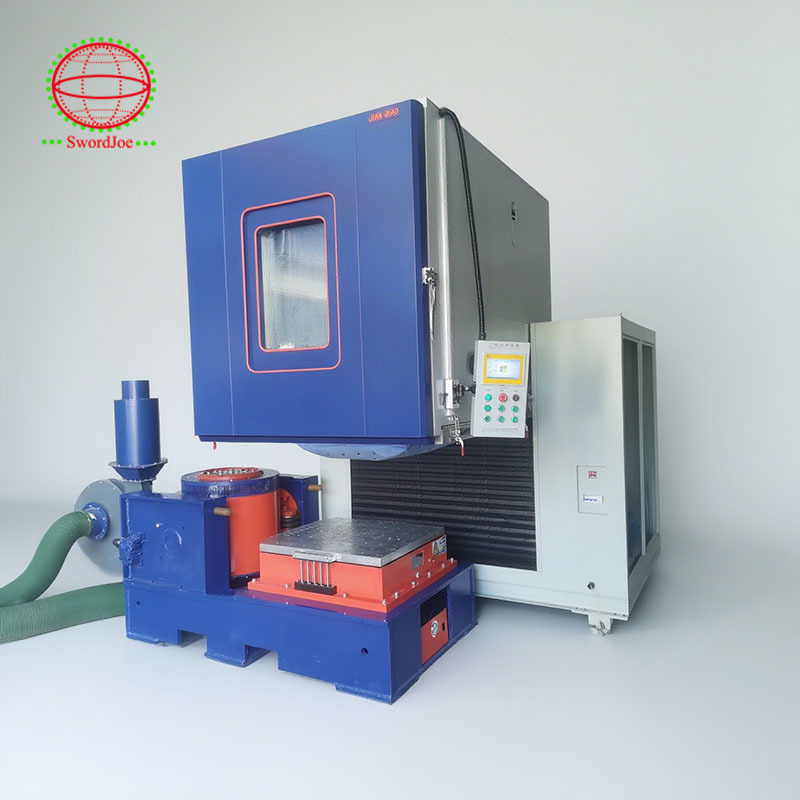

Jianqiao JQTHV-Series chambers offer rapid temperature change rates to reduce product development time and improve product reliability. These chambers are available for temperature & vibration testing or temperature, humidity and vibration. All models are designed for compatibility with your choice of electrodynamic or mechanical vibration systems.
While each model is manufactured to standard designs, they may also be custom engineered to meet a wide range of stringent test requirements.
- Simulates up to 3 Combined Environments in one Chamber
- Versatile - Chamber may interface with your existing vibration shaker or new shaker of your choice
- Dual Purpose - May be operated as a separate temperature/humidity chamber maximizing your investment
- High performance with fast change rates for accelerated stress testing
- Customizable design to meet stringent test requirements
- User-friendly controls for easy integration into your test system
- Refrigeration design protects compressors and prolongs life keeping cool during all operating conditions
- Refrigeration design uses less power saving operating costs
- An electronic humidity sensor is used on all humidity models for accuracy and minimal maintenance
- Humidity water filtration system is included to filter impurities and protect your chamber interior
Cascade: -70ºC to +190ºC (-94ºF to +375ºF)
Single Stage: -34°C to 190°C (-30°F to 375°F)
CONTROLLE -45°C to 190°C (-49°F to 375°F)
CONTROLLER II: -54°C to 190°C (-65°F to 375°F)
10% to 95% relative humidity as limited by a +85ºC (+185ºF) maximum dry bulb and +7ºC (+45ºF) minimum dewpoint.
- 2.875" Access Port
- Non-Settling Fiberglass Insulation
- Fog-Free Wiperless Window
- Diaphragm Interface to Shaker
- Adjustable Chamber Height
- Rear Sliding Door
- Brushed Stainless Steel Interior
- High Volume Air Flow
- EZT-570i Touch Screen Controller
- Internal Light with Switch
- EIA-232/485 Computer Interface
- Solid State RH Sensor*
- Refrigeration Service Taps
- Digital Display Temp. Limit & Alarm
- Zero Ozone Depletion Refrigerants
- Refrigeration High Temperature Protection
- Water Cooled Condenser
- Refrigeration Pressure Gauges
- Humidity Demineralizer Water System*
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to the actual weight | |||
| Temperature Range | -70℃ to +150℃(A:0℃ B:-20℃ C:-40℃ D: -70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃ /Min or Optional specified | |||
| Heating Up Rate | Standard 3℃ /Min or specified | |||
| Frequency Range | 3~5000 Hz(adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg for chooses or specified.300kg~35t | |||
| Displacement (mm) | Please see vibration shaker details | |||
| Max.Load (kg) | Please see vibration shaker details | |||
| Exterior material | Standard 1.2mm Electrolytic plate Electrostatic spray paint | |||
| Interior material | SUS 304# Stainless steel plate | |||
| Floor load resistance | customized | |||
| Languages | Chinese, English, Russian | |||
| Controller | TW DELTA PLC,7" or 10" color touch screen control | |||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power supply | AC380V @50Hz | |||
