Environmental Agree Test Chamber 1000L 1700L Water Cooled Refrigeration Systems
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Agree Test Chamber 1000L,Agree Test Chamber 1700L,Agree Test Chamber Water Cooled |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |

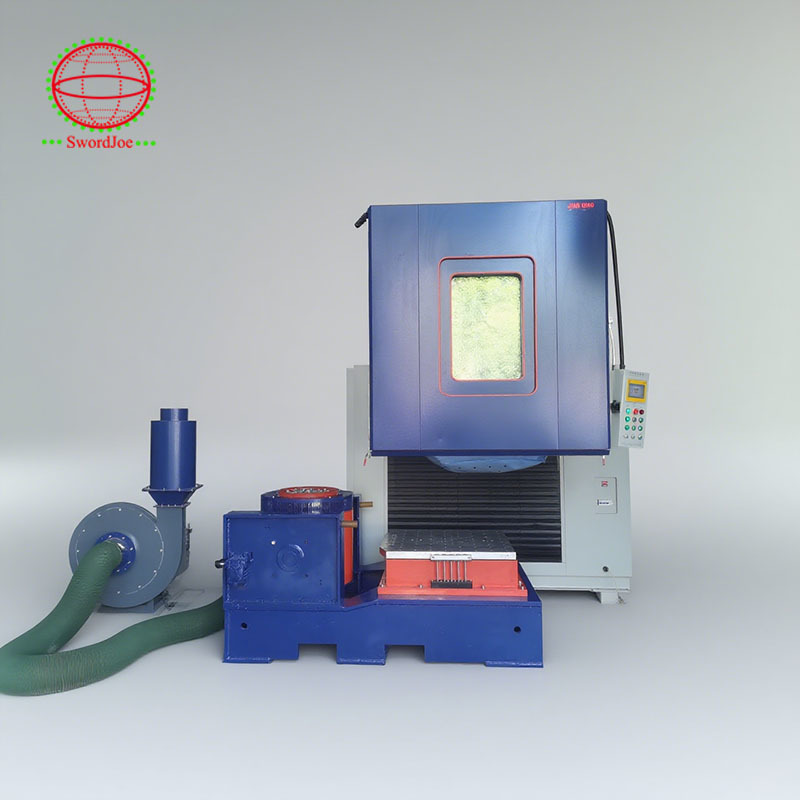

Simulate real-world conditions with our Combined Vibration & Climate Series AGREE Test Chambers, designed to meet evolving environmental testing requirements. These chambers are available in temperature-only or temperature and humidity configurations, offering rapid thermal change rates from 5°C up to 20°C. When integrated with an electrodynamic vibration shaker or repetitive shock vibration table, these chambers can seamlessly transform into vibration chambers.
Originally developed for defense and aerospace applications to comply with IEC 60068 and MIL-STD standards for temperature, humidity, and vibration tests, AGREE Vibration Chambers are now widely used for reliability testing, qualification, and Environmental Stress Screening (ESS) across multiple industries including electronics, aerospace, automotive, and telecommunications.
- Additional Port Holes: 50MM, 100MM, 125MM & 150MM
- Customizable floor loading capacity
- Air Dryer for Low RH Applications
- Heavy duty Customized Shelves
- Water-Cooled Refrigeration Systems
- Remote Refrigeration/Condensing Unit
- Booster Cooling through LN2 up to -150°C
- Incoming power supply EMF (Electromagnetic interference filter) protection reduces electromagnetic field radiation
- Dedicated MPCB protection for refrigeration compressors, air heater, circulation fan motor, movement basket motor assembly, and condenser motor
- Dedicated MCB protection for HMI, PLC, test space lamp, and control circuit to ensure system stability
- Three Phase Preventer for under voltage and over voltage protection from main input power
- Dual safety mechanisms with mechanical thermostats and adjustable electronic safety controllers
- Level 1: High and Low temperature adjustable electronic safety controllers
- Level 2: High and Low temperature mechanical thermostats
High and Low Refrigeration safety pressure protection safeguards the refrigeration system.
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to actual weight | |||
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D:-70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃ /Min or optional specified | |||
| Heating Up Rate | Standard 3℃ /Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg available or specified | |||
| Exterior material | 1.2mm Electrolytic plate with electrostatic spray paint | |||
| Interior material | SUS 304# Stainless steel plate | |||
| Controller | TW DELTA PLC, 7" or 10" color touch screen control | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power supply | AC380V @50Hz | |||
Product Highlights
