Premium Agree Vibration Chamber For Precision environmental testing
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Agree Vibration Chamber,Precision Agree Vibration Chamber |
||
Product Description
| Attribute | Value |
|---|---|
| Certifications | CE, ISO 9001:2008 |
| Power Source | 380V AC 50/60Hz |
| Internal Material | Stainless steel (SUS304) |
| Inner Chamber | 1000*1000*1000 |
| Temperature cooling rate | 0.8~1.5°C/Min |
| Frequency Range | 3-2000Hz |
| Controller | Standard: South Korea TEMI-1500 |
| Usage | Environmental testing |
| Fan | Centrifugal blower |
| Internal Dimensions | Customizable |
| Chamber Material | Stainless steel |
Premium Agree Chamber designed for precision testing applications to optimize performance in environmental testing conditions.
Our worldwide field service engineers and sales representatives provide superior service before and after the sale. An annual service seminar gives customers hands-on experience with chamber and shaker troubleshooting and repair.

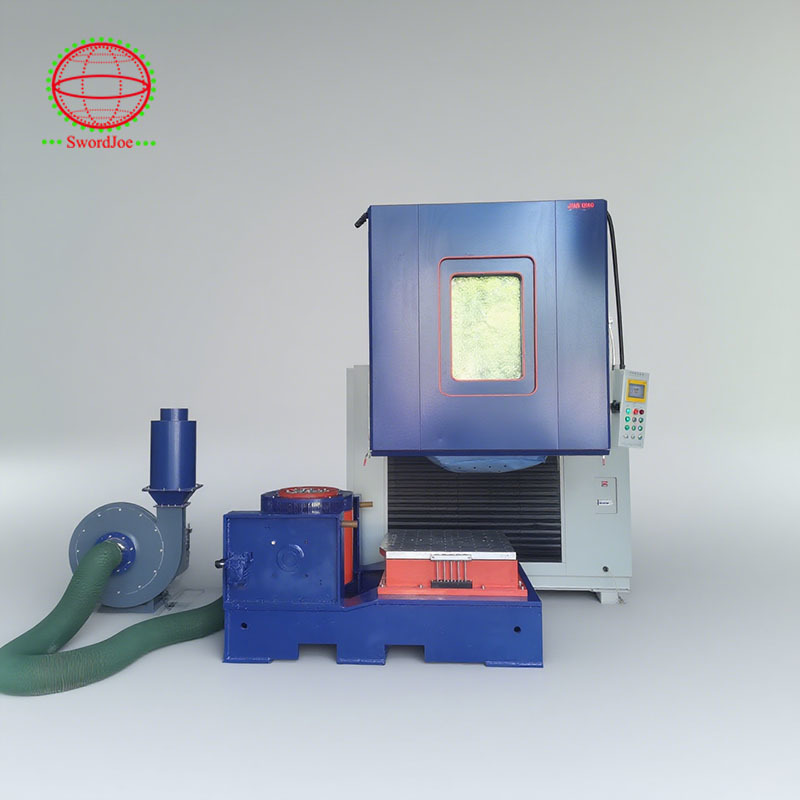

This combined system uses an 8,000 force pound electrodynamic shaker with dual slip tables. The large sliptable interfaces with the adjustable-height AGREE chamber for temperature and vibration testing.
The shaker can then flip 180 degrees to connect with the small sliptable to perform the 100g/11 ms automotive shock specification with a 100-pound payload horizontally. This custom design provides a cost-effective solution for specialized testing needs.
| Model | JQTHV-500 | JQTHV-1000 | JQTHV-1700 | JQTHV-3400 |
|---|---|---|---|---|
| Inner Size (cm) | 50*75*65 | 80*70*90 | 100*100*100 | 195*315*516 |
| Volume (L) | 512L | 1000L | 1700L | 3400L |
| Weight (KG) | Subject to the actual weight | |||
| Temperature Range | -70℃ to +150℃ (A:0℃ B:-20℃ C:-40℃ D: -70℃) | |||
| Humidity Range | 10%~98% RH | |||
| Cooling Rate | Standard 1℃ /Min or Optional specified | |||
| Heating Up Rate | Standard 3℃ /Min or specified | |||
| Frequency Range | 3~5000 Hz (adjustable) | |||
| Sine Force (kg) | 300kg to 35000kg for chooses or specified.300kg~35t | |||
| Displacement (mm) | Please see vibration shaker details | |||
| Max.Load (kg) | Please see vibration shaker details | |||
| Exterior material | Standard 1.2mm Electrolytic plate Electrostatic spray paint | |||
| Interior material | SUS 304# Stainless steel plate | |||
| Floor load resistance | Customized | |||
| Languages | Chinese, English, Russian | |||
| Controller | TW DELTA PLC,7" or 10" color touch screen control | |||
| Configuration interface | With USB, WLAN, RS232 port, APP function is optional | |||
| Compressor | French Tecumseh or German Bitzer brand or Bock | |||
| Power supply | AC380V @50Hz | |||
