Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries

1
MOQ
Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries
Features Gallery Product Description Chat Now
Features
Specifications
Frequency: 2000Hz
Sine Force: 50kN /5000kg
Random Force: 50kN /5000kg
Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16
Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2")
Maximum Load: 800KG
Moving Parts Mass: 20KG
Armature Diameter: 335mm
Highlight:

adjustable vibration test table

,

vibration test table for electronics

,

Automotive Vibration Test Machine
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQA-202-335
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 300 sets
Product Description

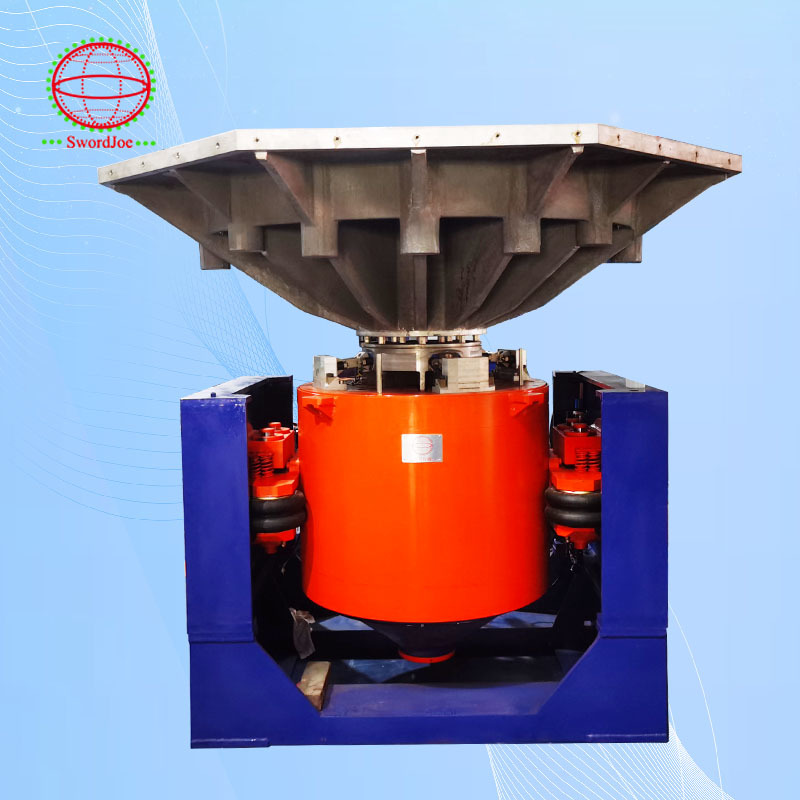

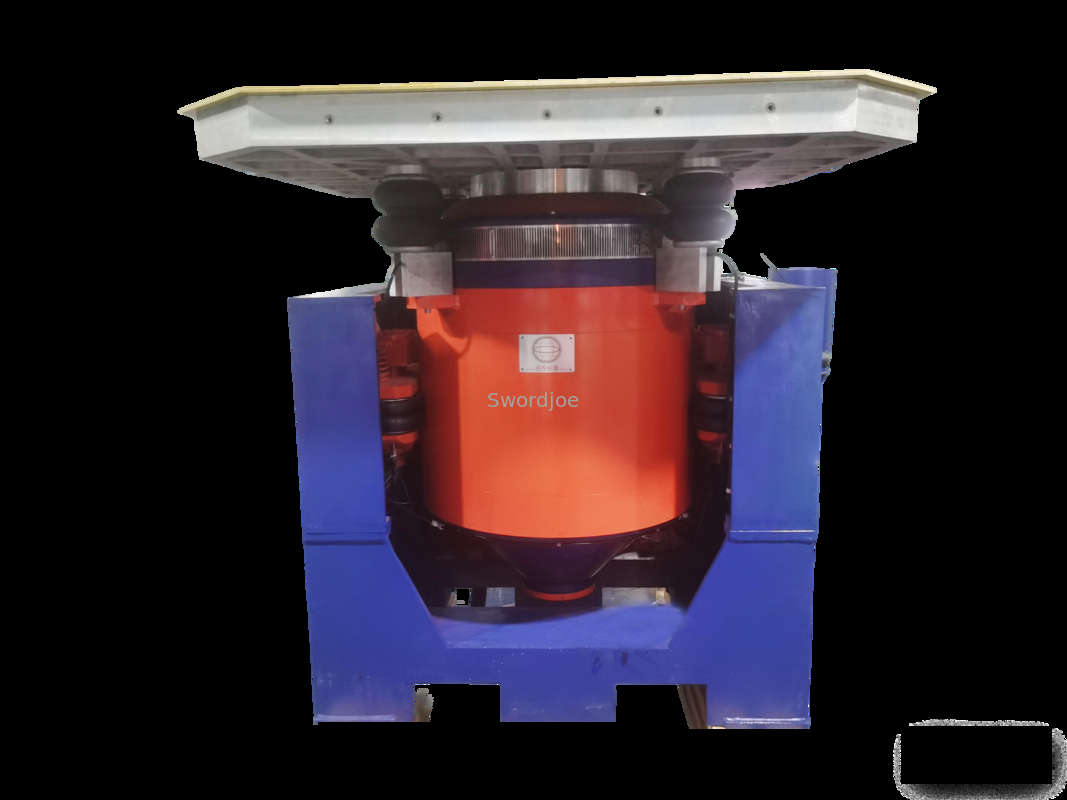

Adjustable Vibration Test Table
Suitable for product testing in electronics, automotive, and mechanical industries, offering flexible testing solutions.
Product Specifications
Attribute Value
Frequency 2000Hz
Sine force 50kN /5000kg
Random force 50kN /5000kg
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 800KG
Moving parts mass 20KG
Armature diameter 335mm
Product Description
The Adjustable Vibration Test Table is ideal for applications requiring high-performance vibration or shock testing of large payloads. Our High Force series shakers provide engineers with reliable solutions for developing robust products, including satellites and missiles.
Key Features
  • Peak force ratings from 89 kN to 289 kN - the highest available force of any shaker available today
  • Wide frequency range up to 2,500 Hz
  • High-performance armature design with water-cooled coils for excellent acceleration and velocity performance
  • Automatic armature and body position load compensation system for larger loads
  • Lin-E-Air suspension system for improved low-frequency performance and vibration isolation
  • Rolling strut armature suspension system with up to 50.8 mm displacement for sine operation
  • Vertical or horizontal operation, with optional slip table
  • Thermal barriers available for improved environmental test capability
  • Compatible with COMETUSB and NETWORK vibration controllers
Model Specifications
Model JQA-502-450 / JQA-503-450
Specification Value
Frequency Range (Hz) 5~2700
Sine force (KN) 50
Shock force (KN) 100/150
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. Displacement (mm p-p) 51/76
Max. load (kg) 800
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-50
Moving parts weight (kg) 50
Armature diameter (φmm) 450
Allowable eccentric moment(Nxm) 980
Outer dimension (W*H*D) 1650*1180*1060
Shaker weight (kg) 4500
Model JQA-402-440 / JQA-403-440
Specification Value
Frequency Range (Hz) 5~2700
Sine force (KN) 40
Shock force (KN) 80/120*
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. Displacement (mm p-p) 51/76*
Max. load (kg) 500
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-40
Moving parts weight (kg) 40
Armature diameter (φmm) 440
Allowable eccentric moment(Nxm) 490
Outer dimension (W*H*D) 1200*1120*900
Shaker weight (kg) 3000
Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries 0 Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries 1 Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries 2 Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries 3
About Guangdong Jianqiao Testing Equipment Co., Ltd
We are a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With our team of experienced R&D engineers and comprehensive after-sales service, we provide high-quality products and one-stop solutions for numerous top enterprises and end users.
Our products are manufactured in strict accordance with ISO9001 standards and meet various international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and GJB. They are widely used in new energy vehicles, aerospace, shipping, electronics industries, and scientific research institutions.
Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries 4 Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries 5 Adjustable Vibration Test Table Machine For Electronics Automotive And Mechanical Industries 6
