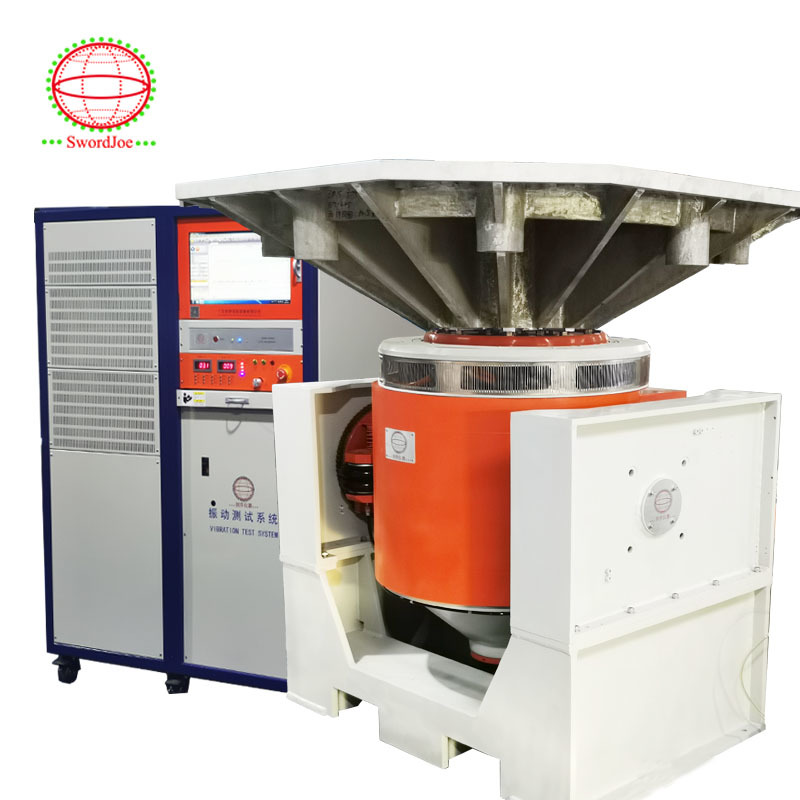

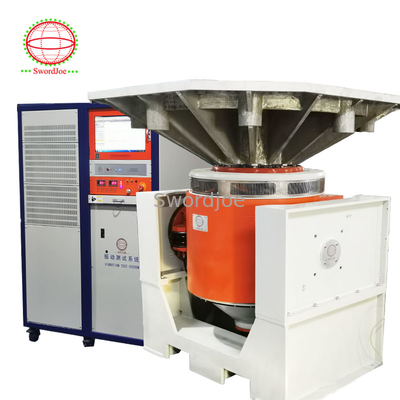

Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability

1
MOQ
Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability
Features Gallery Product Description Chat Now
Features
Specifications
Frequency: 2000Hz
Sine Force: 50kN /5000kg
Random Force: 50kN /5000kg
Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16
Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2")
Maximum Load: 800KG
Moving Parts Mass: 20KG
Armature Diameter: 335mm
Highlight:

Electrodynamic Vibration Test Bench

,

Industrial Vibration Test Bench

,

Durability vibration test bench
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQA-202-335
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 300 sets
Product Description
Vibration Test Bench
Simulates natural vibrations to help companies improve product durability and reliability.
Key Specifications
Attribute Value
Frequency 2000Hz
Sine force 50kN /5000kg
Random force 50kN /5000kg
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 800KG
Moving parts mass 20KG
Armature diameter 335mm
Product Description
The standard for high-force, long-duration vibration testing
Providing the versatility and capability demanded by production testing and research and development, the V9 shaker system offers exceptional performance combined with low capital and running costs. The high force shaker offers the highest achievable envelope of testing parameters.
High-force Long-duration Electrodynamic Shaker Features
  • Full water cooling, including body cooling, enables prolonged testing at maximum force levels
  • Long 76.2 mm stroke allows greater acceleration at low frequencies, combined with higher maximum velocity
  • Advanced switching power amplifier offers high reliability, simple installation and easy operation
  • Powerful vibration control system enables remote monitoring and control
  • Payloads up to 1,800 kg
  • Systems can be tailored for special applications such as load-bearing platforms
  • Vertical or horizontal operation with optional slip table
Industry Applications
  • High-force, long-duration automotive testing
  • Avionics and military hardware testing
  • Low-frequency and shock pulse testing
  • Product and package testing
Technical Specifications
JQA-502-450 / JQA-503-450 Model
Specification Value
Frequency Range (Hz) 5~2700
Sine force (KN) 50
Shock force (KN) 100/150
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. Displacement (mm p-p) 51/76
Max. load (kg) 800
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-50
Moving parts weight (kg) 50
Armature diameter (φmm) 450
Allowable eccentric moment(Nxm) 980
JQA-402-440 / JQA-403-440 Model Specifications
Specification Value
Frequency Range (Hz) 5~2700
Sine force (KN) 40
Shock force (KN) 80/120*
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. Displacement (mm p-p) 51/76*
Max. load (kg) 500
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-40
Moving parts weight (kg) 40
Armature diameter (φmm) 440
Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability 0 Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability 1 Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability 2 Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability 3
About Guangdong Jianqiao Testing Equipment Co., Ltd
We are a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With our advantage in technical R&D, professional production and sales teams, and perfect after-service department, we have several senior R&D engineers hired across the country.
Our marketing network covers major large and medium-sized cities nationwide. In the past 20 years, Jianqiao has provided high-quality products and one-stop solutions for dozens of top 100 enterprises and 11,289 end users.
We manufacture all vibration and environmental testing equipment in strict accordance with ISO9001 standards, meeting ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and other domestic and international standards. Our products are widely used in new energy vehicles, aerospace, shipping, electronics industry and other industries, applicable to all scientific research units, quality inspection institutions and academic fields.
Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability 4 Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability 5 Industrial Electrodynamic Vibration Test Bench To Improve Product Durability And Reliability 6
