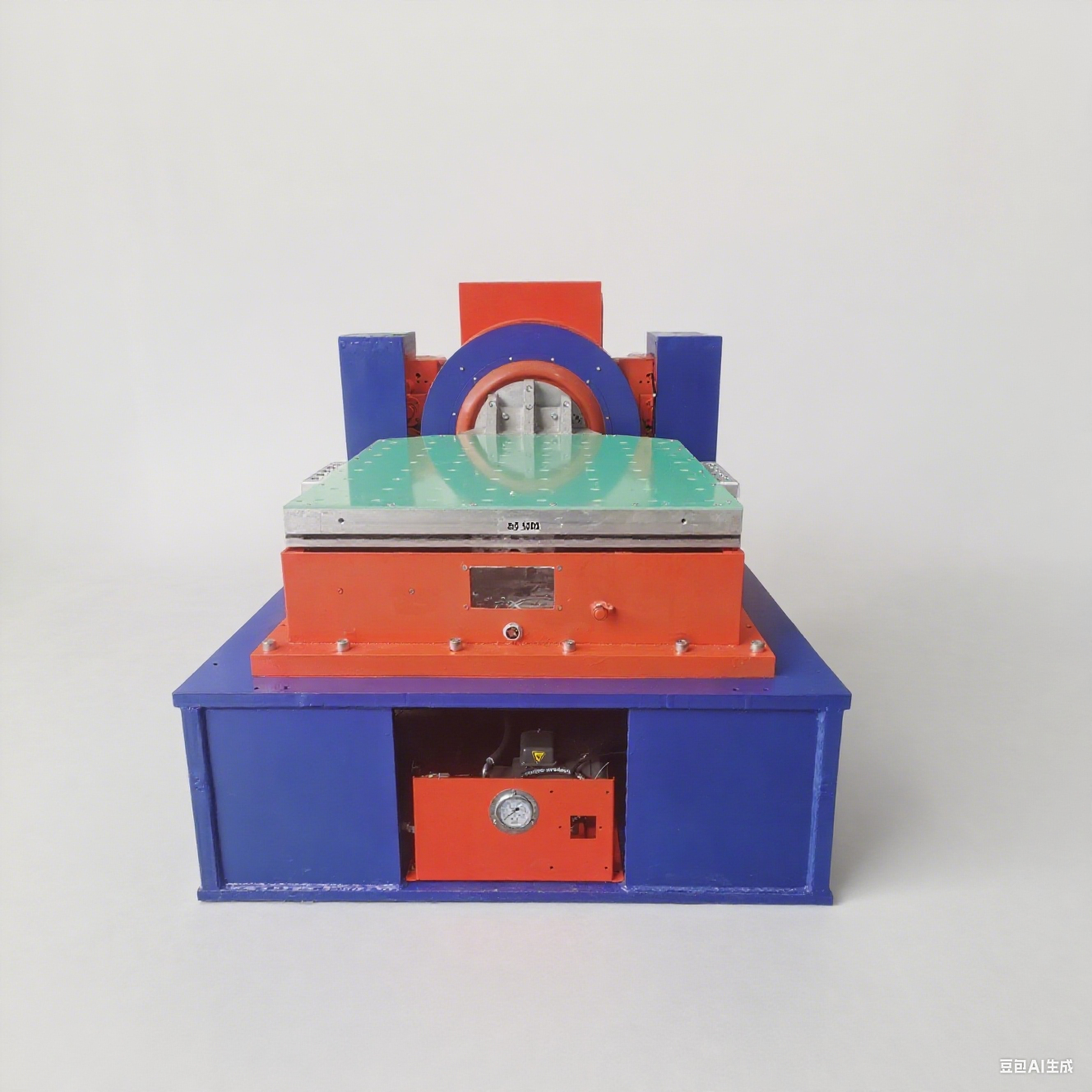

Precise Smart Vibration Test Table Automated Control Systems Real Time Monitoring

Brand Name:	Jianqiao
Model Number:	JQA-202-335
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Climatic Test Chamber Catal...25.pdf

Frequency:

2000Hz

Sine Force:

50kN /5000kg

Random Force:

50kN /5000kg

Shock Force:

98kN /9800kg/9918lbf

Channel:

2/4/8/16

Maximum Acceleration:

100g

Maximum Displacement:

100mm (4"）/76mm (3")/51mm (2")

Maximum Load:

800KG

Moving Parts Mass:

20KG

Armature Diameter:

335mm

Packaging Details:

Wooden case

Supply Ability:

300 sets

Highlight:

Smart Vibration Test Table

Precise Vibration Test Table

Vibration Test Table Automated Control

Product Description

Smart Vibration Table

Features advanced automated control systems for real-time monitoring of vibrations, ensuring precise test results.

Key Specifications

Attribute	Value
Frequency	2000Hz
Sine force	50kN /5000kg
Random force	50kN /5000kg
Shock force	98kN /9800kg/9918lbf
Channel	2/4/8/16
Maximum acceleration	100g
Maximum displacement	100mm (4")/76mm (3")/51mm (2")
Maximum load	800KG
Moving parts mass	20KG
Armature diameter	335mm

Product Features

Middle force series shaker systems are ideal for sine, random and high-acceleration shock tests, and many more control profiles.

Lightweight yet robust interchangeable armatures give the highest performance with reduced capital cost
Advanced switching power amplifiers offer high reliability, reduced space requirements, and simple installation and operation
Systems can be tailored for special applications
State-of-the-art vibration control system enables remote monitoring and control
Compatible with COMETUSB and LASERUSB vibration controllers
Vertical or horizontal operation with optional slip table

Industry standard for automotive, military and electronic testing. Providing the versatility and capability demanded by research and development, product qualification and stress screening, the middle force series shaker systems combine superior performance with low capital and running costs.

Technical Specifications

Model: JQA-502-450 / JQA-503-450

Specification	Value
Frequency Range (Hz)	5~2700
Sine force (KN)	50
Shock force (KN)	100/150
Max. acceleration (m/s²)	980
Max. speed (m/s)	2
Max. Displacement (mm p-p)	51/76
Max. load (kg)	800
Vibration isolation frequency(Hz)	2.5
Shaking table type	JQ-50
Moving parts weight (kg)	50
Armature diameter (φmm)	450
Allowable eccentric moment(Nxm)	980
Outer dimension (WHD)	165011801060
Shaker weight (kg)	4500

Model: JQA-402-440 / JQA-403-440

Specification	Value
Frequency Range (Hz)	5~2700
Sine force (KN)	40
Shock force (KN)	80/120*
Max. acceleration (m/s²)	980
Max. speed (m/s)	2
Max. Displacement (mm p-p)	51/76*
Max. load (kg)	500
Vibration isolation frequency(Hz)	2.5
Shaking table type	JQ-40
Moving parts weight (kg)	40
Armature diameter (φmm)	440
Allowable eccentric moment(Nxm)	490
Outer dimension (WHD)	12001120900
Shaker weight (kg)	3000

About Guangdong Jianqiao Testing Equipment Co., Ltd

We are a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With advantages in our R&D department technicians, professional production and sales teams, and perfect after-service department, we have hired several senior R&D engineers across the country. Our marketing network covers major large and medium-sized cities.

In the past 20 years, Jianqiao has provided high-quality products and one-stop solutions for dozens of top 100 enterprises and 11,289 end users. Our products are manufactured in strict accordance with ISO9001 and meet the standards of ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and other domestic and international standards.

Our products are widely used in new energy vehicles, aerospace, shipping, electronics industry and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields.
