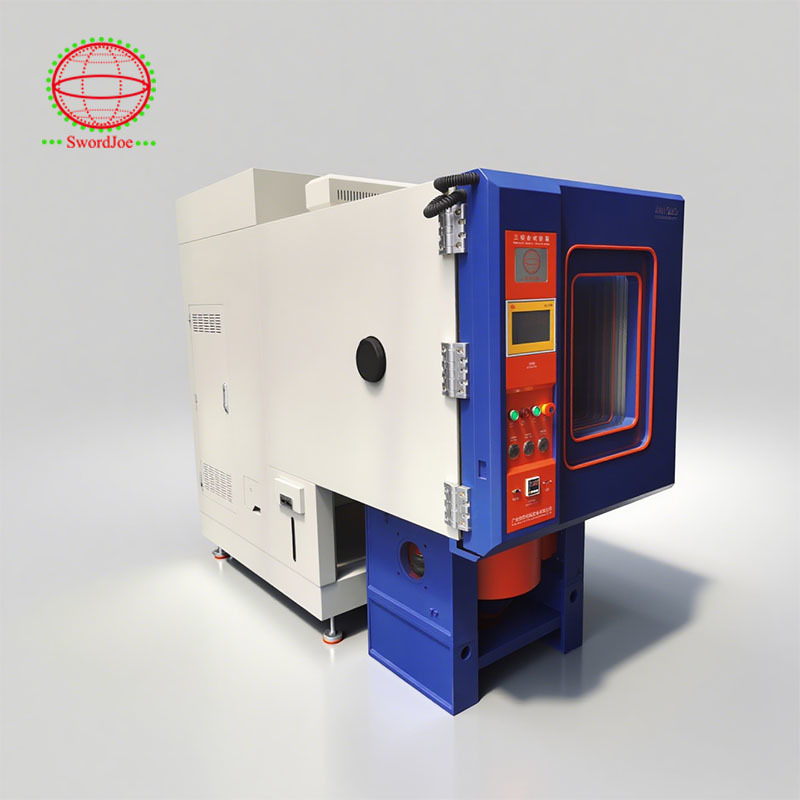

Precision Vibration Testing Table Adjustment And Amplitude Control Guarantee

Brand Name: Jianqiao
Model Number: JQA-202-335
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Supply Ability: 300 sets
Tags

vibration test machine

Vibration Testing Machine

Vibration Machine Test

Product Details

Frequency: 2000Hz Sine Force: 20kN /2000kg/4409lbf
Random Force: 20kN /2000kg/4409lbf Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16 Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2") Maximum Load: 300KG
Moving Parts Mass: 20KG Armature Diameter: 335mm
Highlight

precision vibration test table

,

vibration frequency adjustment table

,

amplitude control vibration tester

Product Description

Vibration Table Performance Testing
Precision vibration frequency adjustment and amplitude control guarantee consistent test results every time.
Key Specifications
Attribute Value
Frequency 2000Hz
Sine force 20kN /2000kg/4409lbf
Random force 20kN /2000kg/4409lbf
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 300KG
Moving parts mass 20KG
Armature diameter 335mm
Applications
Ground Transportation
Manufacturers of cars, motorcycles, trucks, buses and rail vehicles all face similar requirements for improving performance, durability, comfort and safety. At Jianqiao, we provide a range of solutions to meet your needs.
Squeak & Rattle Testing
Our quiet electrodynamic shakers support industry standard QA practices for Squeak & Rattle vibration testing, ensuring automotive components and interiors remain durable and free from noise for greater passenger comfort.
As hybrid and electrical vehicles become more common, battery durability testing is key to the next generation of transport. We have developed a custom vibration test system for hybrid battery testing in conjunction with Highly Accelerated Life Testing (HALT) of multi-cell computer managed batteries.
NVH Structural & Modal Testing
Jianqiao products provide solutions for a wide variety of noise, vibration and harshness test requirements. Field test applications include in-vehicle, structural, modal and rotating machinery diagnosis. Jianqiao also offers complete solutions, from transducers and data acquisition hardware to shakers and controllers, for both field and lab testing such as road test simulation.
Rotating Machinery Testing
Jianqiao provides all the tools you need to rapidly isolate and diagnose vibration and noise problems in rotating machinery. Order tracking analysis, real-time waterfalls and spectrograms, octave band analysis, orbit plots and cepstrum analysis are all available.
Technical Specifications
Parameter JQA-502-450 / JQA-503-450
Frequency Range (Hz) 5~2700
Sine force (KN) 50
Shock force (KN) 100/150
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. Displacement (mm p-p) 51/76
Max. load (kg) 800
Vibration isolation frequency(Hz) 2.5
Shaking table type JQ-50
Moving parts weight (kg) 50
Armature diameter (φmm) 450
Allowable eccentric moment(Nxm) 980
Outer dimension (W*H*D) 1650*1180*1060
Shaker weight (kg) 4500
Vibration test table in operation
Close-up of vibration table mechanism
Guangdong Jianqiao Testing Equipment Co., Ltd is a large scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With the advantage in technicians in R&D department, professional production and sales team and perfect after-service department, and several senior R&D Engineers hired across the country.
Our marketing network covers major large and medium-sized cities among the country. In the past 20 years, Jianqiao has provided high quality products and one-stop solutions for dozens of top 100 enterprises and 11,289 end users.
The company manufactures all kinds of vibration and environmental testing equipment in strict accordance with ISO9001 and products meet the standard of ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, JIS, ANIS, UL, IEC etc. and other domestic and international standards.
Our products are widely used in new energy vehicles, aerospace, shipping, electronics industry and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields.
Jianqiao testing equipment in laboratory setting
Engineer operating vibration testing system
Quality control inspection of vibration table

Product Highlights

Vibration Table Performance Testing Precision vibration frequency adjustment and amplitude control guarantee consistent test results every time. Key Specifications Attribute Value Frequency 2000Hz Sine force 20kN /2000kg/4409lbf Random force 20kN /2000kg/4409lbf Shock force 98kN /9800kg/9918lbf ...
