Vibiratlion Response Investigation during Automotive Parts Testing

Brand Name: Jianqiao
Model Number: JQA-202-335
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Supply Ability: 300 sets
Tags

vibration test machine

Vibration Testing Machine

Vibration Machine Test

Product Details

Frequency: 2000Hz Sine Force: 20kN /2000kg/4409lbf
Random Force: 20kN /2000kg/4409lbf Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16 Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2") Maximum Load: 300KG
Moving Parts Mass: 20KG Armature Diameter: 335mm
Highlight

vibration test table for automotive parts

,

automotive parts vibration testing equipment

,

vibration response investigation test table

Product Description

Vibration Response Investigation during Automotive Parts Testing
Product Specifications
Attribute Value
Frequency 2000Hz
Sine force 20kN /2000kg/4409lbf
Random force 20kN /2000kg/4409lbf
Shock force 98kN /9800kg/9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4")/76mm (3")/51mm (2")
Maximum load 300KG
Moving parts mass 20KG
Armature diameter 335mm
Product Description
The vibration response investigation is the first step after mounting the test object, with the purpose of checking its function and examining the influence of resonances throughout the frequency range. For all types of tests, resonances are found by a sine sweep. The resonance frequencies are measured and the behavior of the structure is studied in detail by manually controlling the frequency.

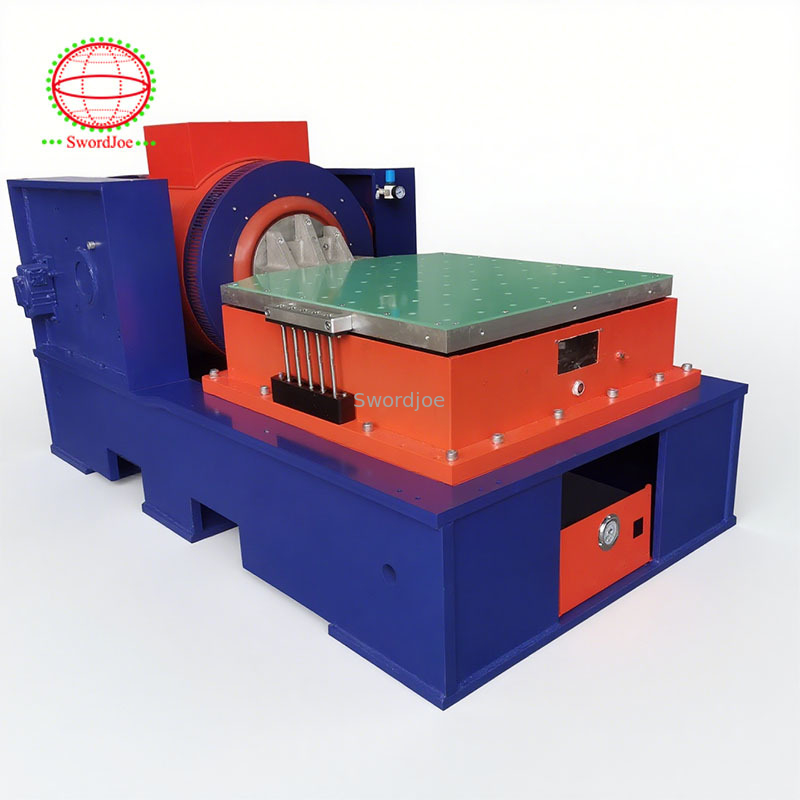

Vibration testing equipment in operation
Endurance Conditioning
During endurance conditioning, the specimen is subjected to vibration that in severity (frequency range, level and time) should ensure it can survive in the real environment. Depending on requirements, conditioning is performed by sine sweeping, sine testing at resonance frequencies or other predetermined frequencies, or by random vibration.
Swept Sine Testing
In the swept sine test, the signal to the exciter is continuously swept back and forth over the appropriate frequency range. The main control parameter is the acceleration level, but below a certain frequency (the crossover point) a constant displacement is chosen. The exciter control used for environmental sine testing has at least two measuring channels with integrators to calculate displacement and velocity levels from the acceleration level measured by the control accelerometer.
Vibration test system setup Close-up of vibration testing equipment
About Guangdong Jianqiao Testing Equipment Co., Ltd
We are a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With our advantage in technical R&D, professional production and sales teams, and comprehensive after-sales service, we provide high-quality products and one-stop solutions for numerous top enterprises and end users.
Our products are manufactured in strict accordance with ISO9001 standards and meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and others. They are widely used in new energy vehicles, aerospace, shipping, electronics industry and other sectors, serving scientific research units, quality inspection institutions and academic fields.
Testing equipment in laboratory setting Quality control inspection Manufacturing facility overview Contact us for more information

Product Highlights

Vibration Response Investigation during Automotive Parts Testing Product Specifications Attribute Value Frequency 2000Hz Sine force 20kN /2000kg/4409lbf Random force 20kN /2000kg/4409lbf Shock force 98kN /9800kg/9918lbf Channel 2/4/8/16 Maximum acceleration 100g Maximum displacement 100mm (4")/76mm ...
