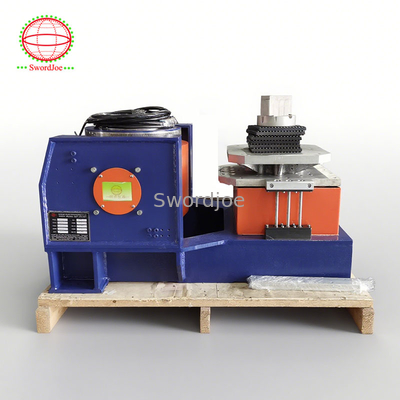

High Speed Vibration Testing Equipment For IEC MIL-STD ISO ASTM GB/T Standards

Brand Name:	Jianqiao
Model Number:	JQA-202-335
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Climatic Test Chamber Catal...25.pdf

Frequency:

2000Hz

Sine Force:

20kN /2000kg/4409lbf

Random Force:

20kN /2000kg/4409lbf

Shock Force:

98kN /9800kg/9918lbf

Channel:

2/4/8/16

Maximum Acceleration:

100g

Maximum Displacement:

100mm (4"）/76mm (3")/51mm (2")

Maximum Load:

300KG

Moving Parts Mass:

20KG

Armature Diameter:

335mm

Packaging Details:

Wooden case

Supply Ability:

300 sets

Highlight:

High Speed Vibration Testing Equipment

IEC Vibration Testing Equipment

ASTM Vibration Testing Equipment

Product Description

Vibration Testing Equipment for IEC, MIL-STD, ISO, ASTM, GB/T Standards

Key Specifications

Attribute	Value
Frequency	2000Hz
Sine force	20kN / 2000kg / 4409lbf
Random force	20kN / 2000kg / 4409lbf
Shock force	98kN / 9800kg / 9918lbf
Channel	2/4/8/16
Maximum acceleration	100g
Maximum displacement	100mm (4") / 76mm (3") / 51mm (2")
Maximum load	300KG
Moving parts mass	20KG
Armature diameter	335mm

Why Vibration Testing?

Modern machinery demands high-speed operation and lightweight structures, making static stress/strain measurements insufficient. Dynamic measurements through vibration testing have become essential for quality assurance programs, often combined with temperature and humidity tests to ensure product reliability.

How Does an Exciter Work?

The electromagnetic vibration exciter operates similarly to a loudspeaker, generating movement through current passing through a coil in a magnetic field. The acceleration force is proportional to drive current and magnetic flux, allowing precise vibration level control through current regulation.

The Power Amplifier

The exciter's frequency response shows three distinct regions: the spring-mass system of the moving element (typically 20Hz resonance), the operational range, and upper frequency limits set by axial resonances (typically above 5kHz for large exciters). Voltage control through low impedance amplifiers is generally preferred for better level control.

Technical Specifications

Model	JQA-202-335 / JQA-203-335
Frequency Range (Hz)	5~3000
Rated sinusoidal force (KN)	20
Shock force (KN)	40/60✱
Max. acceleration (m/s²)	980
Max. speed (m/s)	2
Max. displacement (mmp-p)	51/76
Max. load (kg)	300
Vibration isolation frequency (Hz)	2.5
Shaking table type	JQ-20
Moving parts weight (kg)	23
Armature diameter (φmm)	335
Allowable eccentric moment (N x m)	490
Outer dimension (WHD) (mm)	1080990860
Shaker weight (kg)	1600
