Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T

1
MOQ
Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T
Features Gallery Product Description Chat Now
Features
Specifications
Frequency: 2000Hz
Sine Force: 20kN /2000kg/4409lbf
Random Force: 20kN /2000kg/4409lbf
Shock Force: 98kN /9800kg/9918lbf
Channel: 2/4/8/16
Maximum Acceleration: 100g
Maximum Displacement: 100mm (4"）/76mm (3")/51mm (2")
Maximum Load: 300KG
Moving Parts Mass: 20KG
Armature Diameter: 335mm
Highlight:

electromagnetic vibration test machine

,

vibration test table for compliance tests

,

standard compliance vibration test equipment
Basic Infomation
Place of Origin: China
Brand Name: Jianqiao
Certification: CE
Model Number: JQA-202-335
Document: Climatic Test Chamber Catal...25.pdf
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 300 sets
Product Description

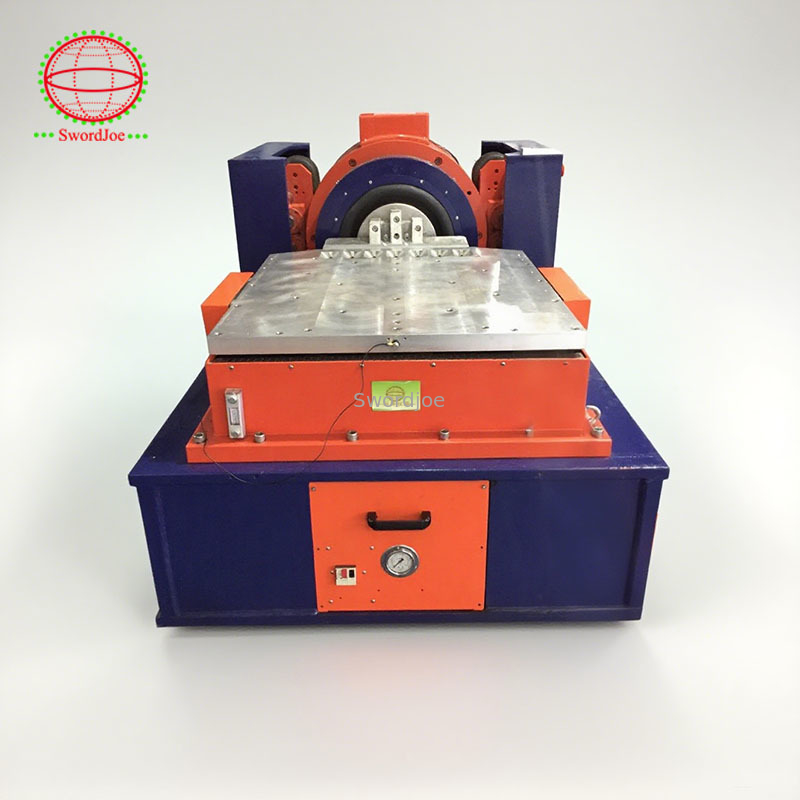

Electromagnetic Vibration Test Machine
For conducting standard compliance tests (IEC, MIL-STD, ISO, ASTM, GB/T)
Product Specifications
Attribute Value
Frequency 2000Hz
Sine force 20kN / 2000kg / 4409lbf
Random force 20kN / 2000kg / 4409lbf
Shock force 98kN / 9800kg / 9918lbf
Channel 2/4/8/16
Maximum acceleration 100g
Maximum displacement 100mm (4") / 76mm (3") / 51mm (2")
Maximum load 300KG
Moving parts mass 20KG
Armature diameter 335mm
About Vibration Test Systems
A vibration test system is specialized equipment designed to simulate the vibration environments that products may encounter during transportation, operation, or real-world usage. It helps evaluate the structural integrity, durability, and performance of components or full assemblies under different vibration conditions.
Main Components
  • Vibration shaker (table or armature)
  • Power amplifier (for electrodynamic type)
  • Vibration controller (digital, programmable)
  • Fixture system for DUT (Device Under Test)
  • Air-cooling or water-cooling system (for high-power models)
  • Optional: Vertical/Horizontal slip table, head expander
Key Functions
  • Simulate sinusoidal vibration, random vibration, shock, and resonance search
  • Test fatigue life, mechanical wear, connection reliability, and transport safety
  • Conduct standard compliance tests (e.g., IEC, MIL-STD, ISO, ASTM, GB/T)
  • Program custom vibration profiles based on real-world data
Application Industries
  • Automotive - Sensors, ECUs, batteries, dashboards
  • Electronics - PCBs, phones, hard drives, cameras
  • Aerospace - Avionics, guidance systems, connectors
  • Defense & Military - Missiles, control boxes, radar
  • Energy & Batteries - EV packs, lithium modules, power devices
  • Packaging - Transit vibration simulation for fragile goods
Technical Specifications
Parameter Value
Frequency Range (Hz) 5~3000
Rated sinusoidal force (KN) 20
Shock force (KN) 40/60✱
Max. acceleration (m/s²) 980
Max. speed (m/s) 2
Max. displacement (mmp-p) 51/76
Max. load (kg) 300
Vibration isolation frequency (Hz) 2.5
Shaking table type JQ-20
Moving parts weight (kg) 23
Armature diameter (φmm) 335
System Advantages
  • Wide Force Range: From 50kgf to 300kN
  • Frequency Range: 1Hz to 5,000Hz+
  • Advanced Controller: Touchscreen or PC software with closed-loop control
  • Low Noise Operation: Efficient operation with silent cooling
  • Modular Design: Easy integration with climate chambers for combined tests
  • Long Service Life: Robust structure and world-class components
  • Customization Options: Fixtures, slip tables, head expanders, multi-axis configurations
Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T 0 Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T 1 Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T 2 Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T 3
Guangdong Jianqiao Testing Equipment Co., Ltd is a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With the advantage in technicians in R&D department, professional production and sales team and perfect after-service department, and several senior R&D engineers hired across the country.
Our marketing network covers major large and medium-sized cities among the country. In the past 20 years, Jianqiao has provided high quality products and one-stop solutions for dozens of top 100 enterprises and 11,289 end users.
The company manufactures all kinds of vibration and environmental testing equipment in strict accordance with ISO9001 and products meet the standards of ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, JIS, ANIS, UL, IEC and other domestic and international standards. Our products are widely used in new energy vehicles, aerospace, shipping, electronics industry and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields.
Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T 4 Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T 5 Electromagnetic Vibration Test Machine Standard IEC MIL-STD ISO ASTM GB/T 6
