Modular Walk In Environmental Chamber For IEC MIL GB ASTM Standards

1
MOQ

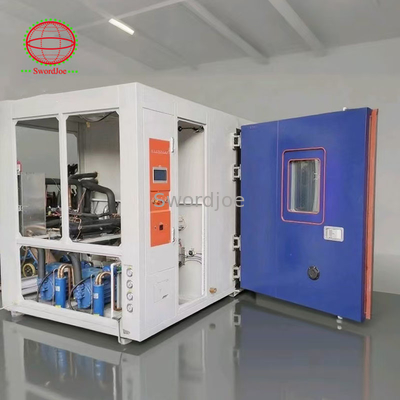

Modular Walk In Environmental Chamber For IEC MIL GB ASTM Standards
Features Gallery Product Description Chat Now
Features
Specifications
Humidity Range: 30~98% R.H (complex)
Weight(kg): Subject To The Actual Weight
Interior Material: Stainless Steel Plate Sus304
Temp.Range: -70℃/-40℃~85℃/120℃/150℃/180℃ Customized
Spray Method: Continuous Spray
Design: Modular
Highlight:

Modular Walk In Environmental Chamber

,

MIL Walk In Environmental Chamber

,

IEC Walk In Environmental Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: Jianqiao
Certification: CE
Model Number: JQWI-2000
Payment & Shipping Terms
Packaging Details: Wooden case
Delivery Time: 5WEEKS
Payment Terms: T/T
Supply Ability: 300
Product Description
Walk-in Environmental Chambers for IEC, MIL, GB, ASTM Standards
Key Features That Make Our Walk-in Chambers Stand Out

Built for Innovation. Designed for Efficiency.

When you invest in a walk-in chamber, you're not just buying a box — you're investing in a precision-engineered climate testing system. Here's what sets ours apart:

  • Modular Design - Easy to install and expand
  • Smart Controller - Touchscreen PLC with programmable cycles
  • Efficient Lighting & Insulation - Lower energy costs
  • Customizable Conditions - Meet IEC, MIL, GB, ASTM standards
  • Reliable Components - Long-lasting compressors, sensors, valves
Walk-in vs. Benchtop Environmental Chambers: Which Is Right for You?

Scale Up Smart with Our Walk-in Solutions

Small benchtop chambers are great for small samples — but if you're testing full-size products, prototypes, or batches, a walk-in chamber gives you the space and flexibility to do more, faster.

Feature Benchtop Chamber Walk-in Chamber
Capacity Limited Large-scale
Access External only Walk-in for easy loading
Test Speed One-by-one Batch testing
ROI Slower Faster, better efficiency

Bottom line? Walk-in chambers are ideal if you want to increase capacity, improve test control, and boost productivity.

Technical Specifications
Model JQ-8000C JQ-12000C JQ-16000C Non-standard customization
Volume 8 cubic meters 12 cubic meters 16 cubic meters Non-standard customization
Dimensions of working chamber (mm) 2000×2000×2000 3000×2000×2000 4000×2000×2000 Non-standard customization
Chamber temperature: Salt water test method (NSS AASS) 35°C ±1°C / corrosion resistance test method (CASS) 50°C ±1°C / 10°C~70°C (composite)
Pressure tank temperature: Salt water test method (NSS AASS) 47°C ±1°C / corrosion resistance test method (CASS) 63°C ±1°C
Saline concentration: Add 0.26 g of copper chloride per liter in 5% sodium chloride solution or 5% sodium chloride solution
Humidity range: 30~98% R.H (complex)
Compressed air pressure: 1.00 ±0.01 kgf/cm²
Amount of spray: 1.0~2.0ml/80 cm²/h (Collect at least 16 hours, take the average)
Chamber relative humidity: Over 85%
pH value: 6.5~7.2 (NSS AASS) / 3.0~3.2 (CASS)
Spray method: Continuous spray
Power supply: AC380V Φ 3 phase 28.6KW (JQ-8000C) / 30.6KW (JQ-12000C) / 32.6KW (JQ-16000C) / AC380V Φ 3 phase (Custom)
