Modular Solid Walk In Test Chambers For Cosmetics Prducts Stability Test

Brand Name:	Jianqiao
Model Number:	JQWI-2000
MOQ:	1
Delivery Time:	5WEEKS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Humidity Range:

20 % To 98% RH

Weight(kg):

Subject To The Actual Weight

Interior Material:

Stainless Steel Plate Sus304

Temp.Range:

-70℃/-40℃~85℃/120℃/150℃/180℃ Customized

Temp Fluctuation:

±0.5℃

Design:

Modular

Packaging Details:

Wooden case

Supply Ability:

300

Highlight:

Modular Walk in Test Chamber

Solid Walk in Test Chamber

Product Description

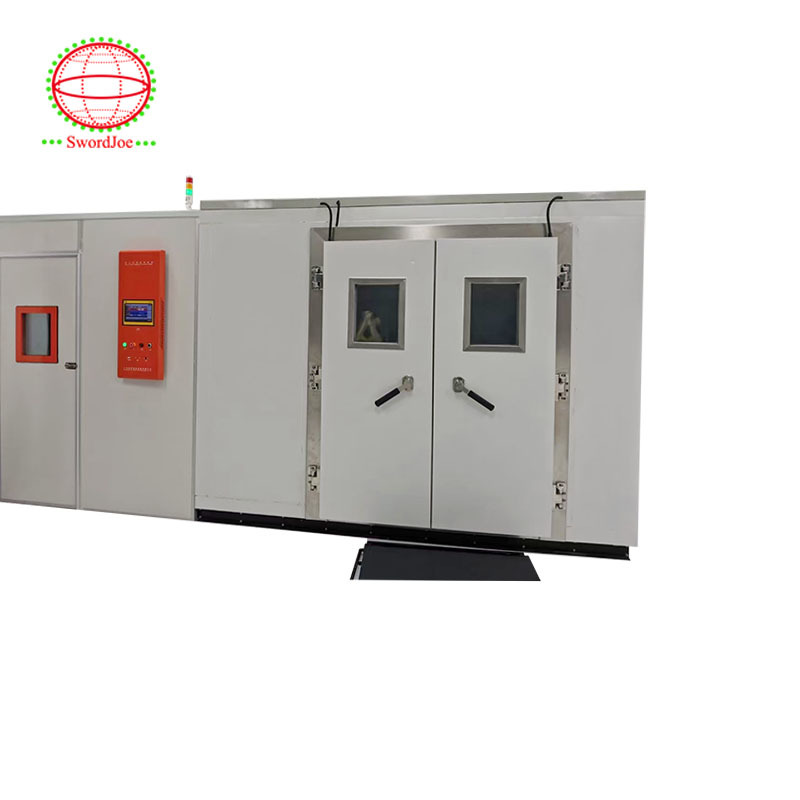

Modular Walk-in Test Chambers for Cosmetics Products Stability Testing

Product development requires accurate determination of a product's life cycle, endurance, strength, and resilience. While real-world testing is possible, it often proves time-consuming, expensive, and unreliable. Walk-in test chambers provide controlled environments that simulate various conditions, offering precise data about product quality and service life.

These chambers enable engineers to recreate environmental conditions products may encounter worldwide. The resulting data helps companies optimize product formulations for different markets while preventing costly product failures. Though requiring initial investment, walk-in test chambers deliver invaluable stability data that far outweighs their cost.

Stability Walk-in Test Chambers

Stability walk-in test chambers maintain precise, consistent temperature and humidity levels for extended periods. They combine heating, cooling, and water systems to replicate environmental conditions. For humidity testing, chambers generate steam that's circulated in an airtight space. Temperature-only chambers omit this feature. Achieving target conditions depends on chamber quality and may require time.

Once established, conditions remain stable for product evaluation. Cold testing utilizes fans to circulate chilled air. Effective environmental simulation requires perfectly sealed chambers. This testing helps manufacturers develop durable, long-lasting products while determining accurate shelf life estimates.

Key Features of Stability Walk-in Test Chambers

Temperature Reliability: Chambers maintain ±0.5°C precision across ranges from -20°C to 94°C (-4°F to 201°F) for consistent durability testing.
Humidity Range: Standard chambers offer 20% to 95% RH, with specialty units reaching 98% RH. Desiccant dryers can extend lower limits to 5% RH.
Cooling System: Durable self-contained mechanical refrigeration systems ensure reliable performance.
Remote Monitoring: Optional connectivity allows engineers to monitor test conditions remotely via USB, WLAN, or RS232 interfaces.

Technical Specifications

Model	JQWI-08	JQWI-12	JQWI-16	JQWI-25	JQWI-34	JQWI-40
Internal Dimensions (cm)	200×200×200	200×300×200	220×350×210	300×400×210	340×480×220	400×500×220
External Dimensions (cm)	230×360×240	230×460×240	246×520×250	330×560×250	370×660×270	430×660×270
Volume	8.0 m³	12 m³	16 m³	25 m³	34 m³	40 m³
Temperature Range	-70°C/-40°C to 85°C/120°C/150°C/180°C (customizable)
Humidity Range	20% to 98% RH
Temperature Stability	±0.5°C
Cooling Rate	1°C/min (customizable)
Heating Rate	3°C/min (customizable)
Construction Materials	Exterior: Powder-coated steel/cold-rolled steel/metal panel Interior: SUS304 stainless steel
Door	PWM controlled cold-end temperature
Controller	TW DELTA PLC with 7" or 10" color touchscreen
Compressor	Tecumseh (France), Bitzer or Bock (Germany)
Power Supply	AC 380V @ 50Hz
