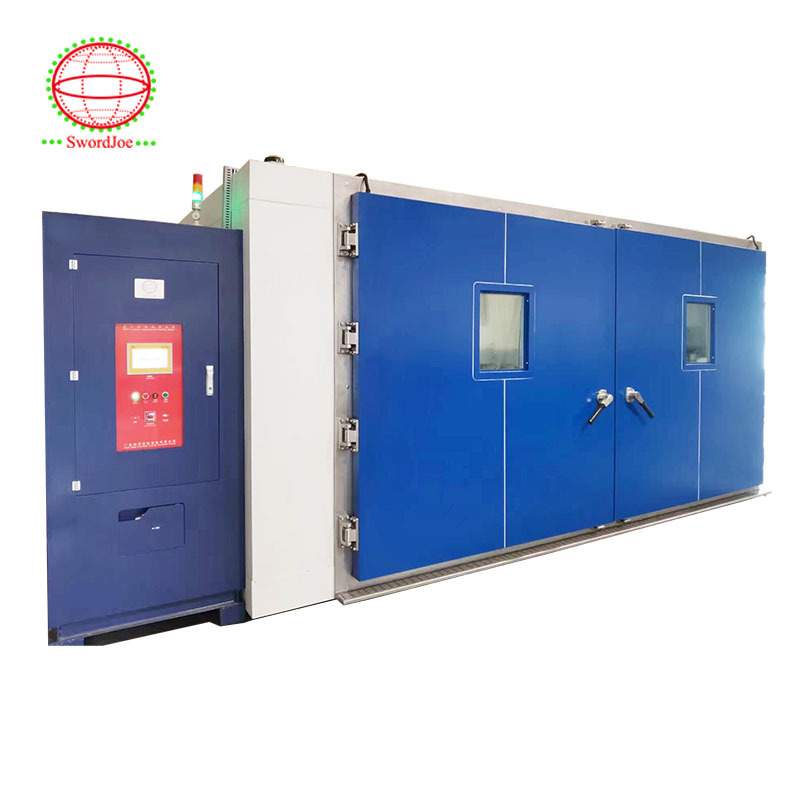

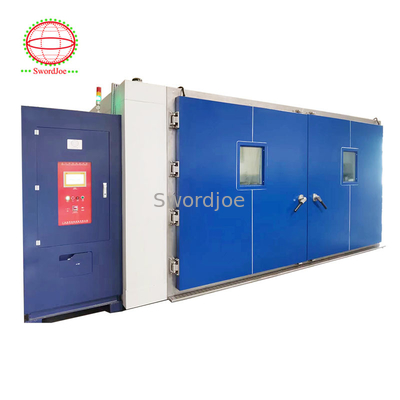

Precise Walk In Environmental Test Chamber temperature Humidity Control
Product Details
| Humidity Range: | 20 % To 98% RH | Weight(kg): | Subject To The Actual Weight |
|---|---|---|---|
| Interior Material: | Stainless Steel Plate Sus304 | Temp.Range: | -70℃/-40℃~85℃/120℃/150℃/180℃ Customized |
| Temp Fluctuation: | ±0.5℃ | Design: | Modular |
| Highlight |
Precise Walk In Environmental Test Chamber,Walk In Environmental Test Chamber,Precise Environmental Chamber Humidity Control |
||
Product Description
Walk-in test chambers are specialized environmental testing units designed to simulate precise conditions including temperature, humidity, moisture, and other critical factors. These chambers play a vital role in product quality assessment, durability testing, and service life evaluation.
Their airtight construction enables precise control of climatic conditions that directly impact product performance. Walk-in chambers are essential for stability testing, shelf life analysis, and accelerated aging studies.
- Spacious interior accommodates personnel and large test specimens
- Fully customizable configurations to meet specific testing requirements
- Capable of housing internal test benches when needed
- Superior environmental control compared to benchtop or reach-in models
Walk-in chambers support comprehensive testing protocols including:
- Product stability and reliability testing
- Accelerated aging and shelf life studies
- Microbial cultivation and environmental simulation
- Precise control of temperature, humidity, and vibration parameters
| Model | JQWI-08 | JQWI-12 | JQWI-16 | JQWI-25 | JQWI-34 | JQWI-40 |
|---|---|---|---|---|---|---|
| Internal Dimensions (cm) | 200×200×200 | 200×300×200 | 220×350×210 | 300×400×210 | 340×480×220 | 400×500×220 |
| External Dimensions (cm) | 230×360×240 | 230×460×240 | 246×520×250 | 330×560×250 | 370×660×270 | 430×660×270 |
| Volume | 8.0 m³ | 12 m³ | 16 m³ | 25 m³ | 34 m³ | 40 m³ |
| Temperature Range | -70°C/-40°C to +85°C/+120°C/+150°C/+180°C (customizable) | |||||
| Humidity Range | 20% to 98% RH | |||||
| Temperature Stability | ±0.5°C | |||||
| Temperature Uniformity | ±2°C | |||||
| Cooling Rate | 1°C/min (standard) or customizable | |||||
| Heating Rate | 3°C/min (standard) or customizable | |||||
| Exterior Material | Powder-coated steel/cold-rolled steel/membrane-coated metal panel | |||||
| Interior Material | SUS304 stainless steel | |||||
| Floor Load Capacity | Customizable | |||||
| Door System | PWM controlled cold-end temperature | |||||
| Controller | TW DELTA PLC with 7" or 10" color touch screen | |||||
| Interface Options | USB, WLAN, RS232 ports, optional APP functionality | |||||
| Compressor | Tecumseh (France), Bitzer or Bock (Germany) | |||||
| Power Supply | AC 380V @ 50Hz | |||||
