Large Scale Precision Walk In Environmental Test Chamber Accommodate Multiple Samples

Brand Name:	Jianqiao
Model Number:	JQWI-2000
MOQ:	1
Delivery Time:	5WEEKS
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Design:

Modular

Humidity Range:

20 % To 98% RH

Weight(kg):

Subject To The Actual Weight

Interior Material:

Stainless Steel Plate Sus304

Temp.Range:

-70℃/-40℃~85℃/120℃/150℃/180℃ Customized

Temp Fluctuation:

±0.5℃

Packaging Details:

Wooden case

Supply Ability:

300

Highlight:

Large Scale Walk In Environmental Test Chamber

Precision Walk In Environmental Test Chamber

Product Description

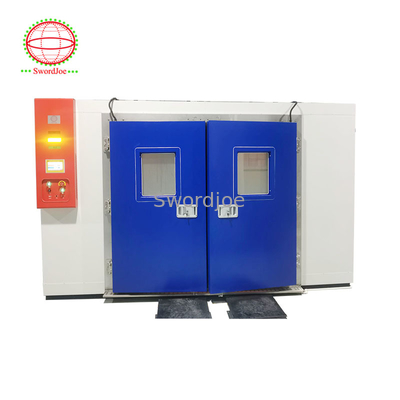

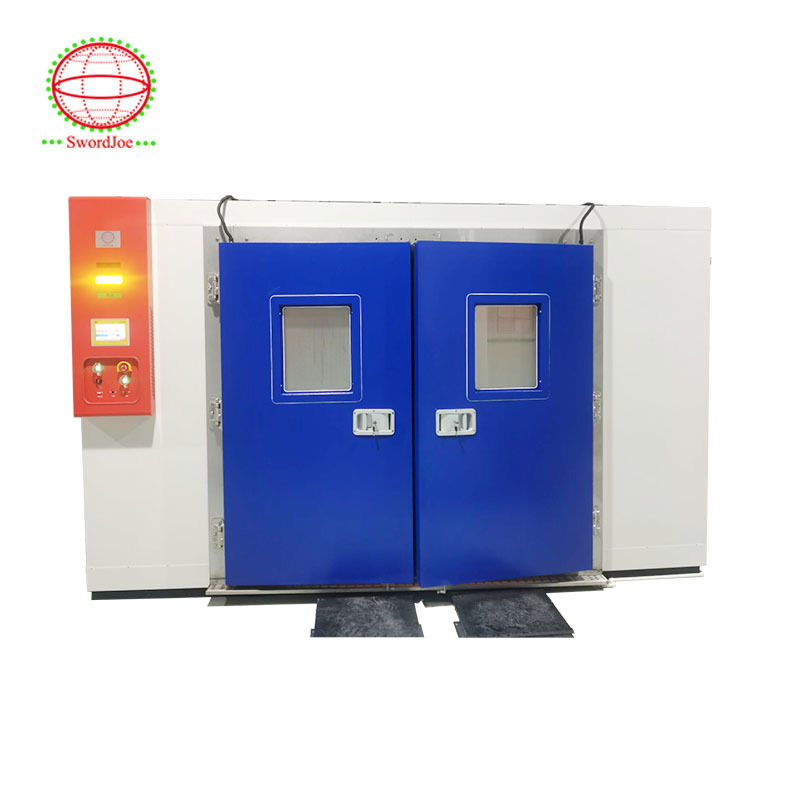

Walk-in Environmental Test Chamber

Ideal for Testing Large Items and Accommodating Multiple Samples

Walk-in environmental test chambers are large-scale testing solutions that enable users to evaluate large products or multiple test samples under precisely controlled conditions. These chambers simulate specific environmental parameters such as temperature and humidity to assess product performance in real-world scenarios.

Structure and Operation

Our walk-in chambers feature an insulated enclosure with airtight construction, combined with advanced refrigeration and humidity control systems. The integrated control panel allows precise management of environmental parameters, test cycle programming, and real-time monitoring.

Key Advantages

Large Testing Capacity
Accommodates oversized products or high-volume sample testing for automotive, aerospace, electronics, and pharmaceutical applications.
Precision Environmental Control
Simulates extreme temperatures (-70°C to +180°C) and humidity levels (20% to 98% RH) with ±0.5°C accuracy.
Comprehensive Product Evaluation
Identifies potential weaknesses by replicating real-world environmental stresses throughout product lifecycles.
Cost-Effective Testing Solution
Enables simultaneous testing of multiple samples, reducing per-unit testing costs for large-scale evaluations.
Enhanced Product Reliability
Rigorous testing protocols improve product quality, safety, and long-term performance.

Technical Specifications

Model	JQWI-08	JQWI-12	JQWI-16	JQWI-25	JQWI-34	JQWI-40
Internal Dimensions (cm)	200×200×200	200×300×200	220×350×210	300×400×210	340×480×220	400×500×220
Volume	8.0 m³	12 m³	16 m³	25 m³	34 m³	40 m³
Temperature Range	-70°C/-40°C to +85°C/+120°C/+150°C/+180°C (customizable)
Humidity Range	20% to 98% RH
Temperature Stability	±0.5°C
Cooling Rate	1°C/min (standard) or customizable
Heating Rate	3°C/min (standard) or customizable
Construction	Exterior: Powder-coated steel/cold-rolled steel/metal clad panel Interior: SUS304 stainless steel
Control System	TW DELTA PLC with 7" or 10" color touchscreen
Compressor	Tecumseh (France), Bitzer or Bock (Germany)
Power Supply	AC 380V @ 50Hz

Customization Options

All models feature customizable floor load capacity, door configurations (including PWM-controlled cold-end temperature doors), and optional interfaces (USB, WLAN, RS232 ports, and APP functionality).
