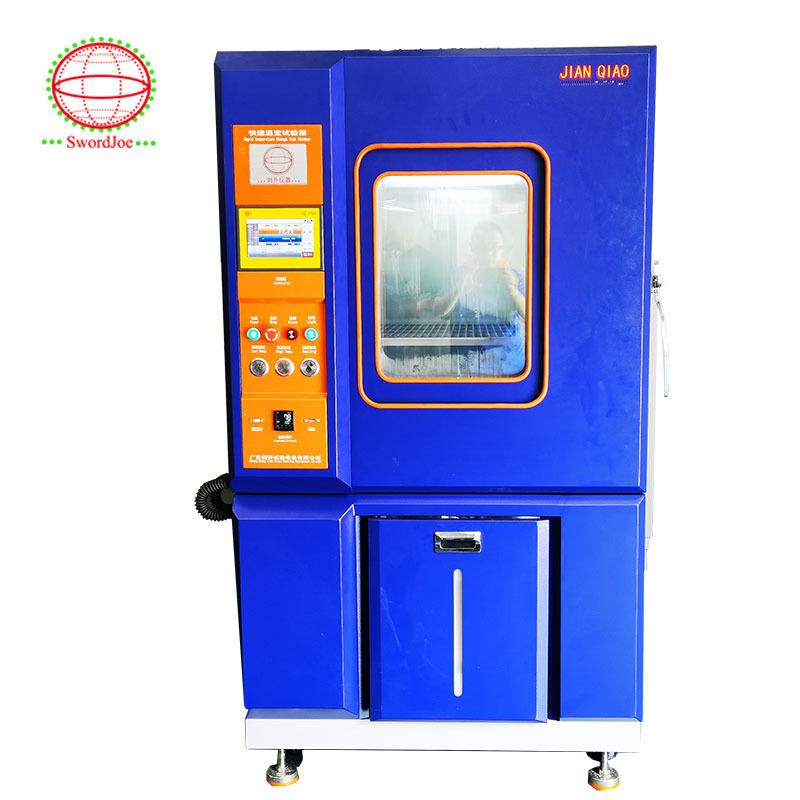

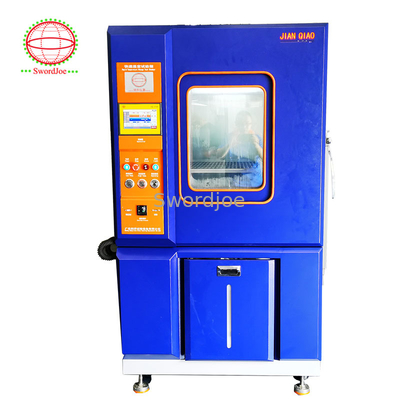

Electronics Environmental Stress Screening Chamber Rapid Temperature Cycling Chamber
Product Details
| Heating System: | Stainless Steel Tubular Heater | Cooling System: | Mechanical Refrigeration |
|---|---|---|---|
| Warranty: | 1 Year | Refrigeration Compressor: | Hermetic Compressor(Tecumseh) |
| Humidity Uniformity: | ±2.0％RH | Fan: | Centrifugal Blower |
| Humidifier: | Steam Humidifier | Humidity Control Range: | 20.0%RH～95.0%RH |
| Evaporator: | Fin - And - Tube Heat Exchanger | Chamber Size: | 1000mm X 1000mm X 1000mm |
| Humidity Control: | 10% ~95%RH | ||
| Highlight |
Electronics Environmental Stress Screening Chamber,Rapid Environmental Stress Screening Chamber,Rapid Temperature Cycling Chamber |
||
Product Description
| Component | Description |
|---|---|
| Test Area / Work Space | Stainless steel inner chamber where products are placed |
| Insulation Layer | High-performance insulation to ensure efficiency and temperature uniformity |
| Temperature Control System | PID controller with programmable profiles for ramp rate, dwell time |
| Refrigeration System | Mechanical refrigeration with hermetic compressor (Tecumseh) |
| Heating System | Stainless steel tubular heater with rapid response capability |
| Air Circulation | Centrifugal blower for fast and uniform temperature changes |
| Safety System | Overheat/overcool protection, door interlock, emergency stop, thermal fuses |
- IEC 60068-2-14: Temperature change test
- MIL-STD-810H Method 503: Temperature shock
- JEDEC JESD22-A104: Thermal cycling for electronic components
- ISO 16750-4: Road vehicles - Electrical and electronic equipment
- Automotive ECUs, batteries, and sensors
- Aerospace components testing
- Semiconductor devices and PCBs
- LED modules and displays
- Plastics and composite materials
Product Highlights
