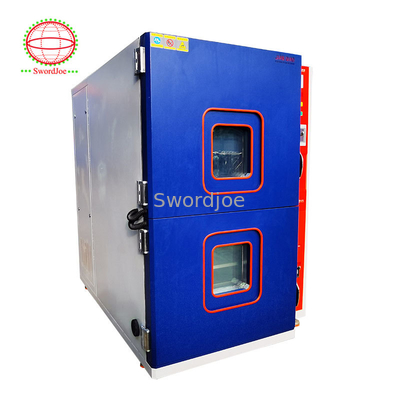

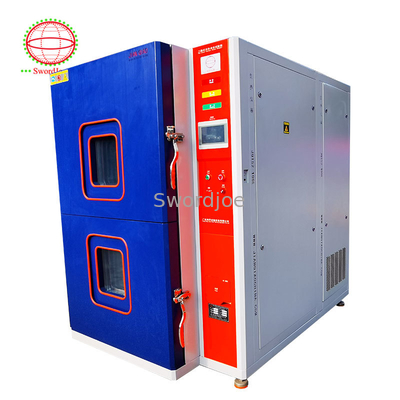

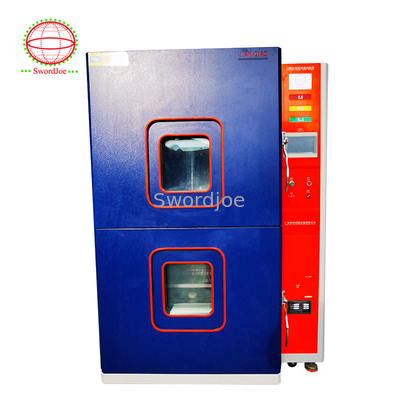

2 Zone Thermal Shock Testing Machine To Evaluate Material And Product Durability
Product Details
| Model: | JQTS-100 | Temperature Range: | -40°C/-55°C/-65°C~+150°C |
|---|---|---|---|
| Highlight |
2 Zone Thermal Shock Testing Machine,Durability Thermal Shock Testing Machine |
||
Product Description
A two-zone thermal shock test chamber is specialized equipment designed to evaluate material and product durability by rapidly exposing them to extreme temperature fluctuations. This testing is critical for industries like automotive, aerospace, and electronics where components face rapid temperature changes in real-world applications.
| Model | JQTS-100 |
|---|---|
| Temperature Range | -40°C/-55°C/-65°C~+150°C |
- Consists of two separate temperature-controlled chambers: one hot and one cold
- Automated basket mechanism transfers test specimens between chambers
- Subjects specimens to alternating high and low temperatures for defined durations
- Repeats cycles to evaluate thermal shock resilience
- Failure Detection: Reveals material weaknesses under rapid temperature changes
- Reliability Assessment: Evaluates product performance in harsh conditions
- Standards Compliance: Meets MIL-STD-883H, IEC 60068-2-14 and other industry standards
- Automotive: Testing ECUs, sensors, and components for weather reliability
- Aerospace: Evaluating systems for extreme temperature variations
- Electronics: Assessing durability of circuits and boards
- Medical Devices: Ensuring reliability during sterilization and use
| Model | JQTS2-50 | JQTS2-80 | JQTS2-100 | JQTS2-150 | JQTS2-225 | JQTS2-408 |
|---|---|---|---|---|---|---|
| Inner Size (W×D×H cm) | 35×32×40 | 50×40×40 | 50×50×40 | 65×50×46 | 65×70×50 | 85×80×60 |
| Capacity (L) | 50 | 80 | 100 | 150 | 225 | 408 |
| Temperature Shock Range | A: -40℃～180℃ | B: -55℃～180℃ | C: -65℃～180℃ | |||||
| Temperature Transfer Time | -40℃/-55°C/-65℃～+180℃ in <5 seconds (Two Zone) | |||||
| Chamber Material | Outer: 1.5mm electrolytic plate | Inner: 1.2mm SUS#304 stainless steel | |||||
| Controller | 7" LCD touch screen (10" optional), 120 programs, USB/RS232/R485 interface | |||||
