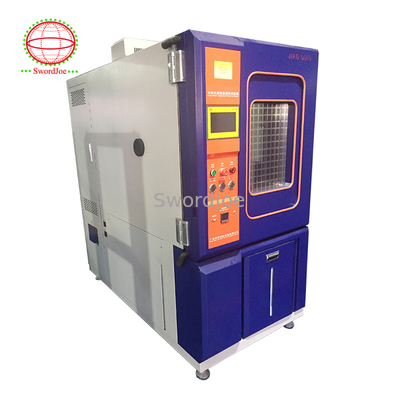

- 70℃ To 150℃ Lab High Temperature And Humididty Test Chamber AC220V / AC380V 50Hz 3 Phase
Product Details
| Power Supply: | AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire | Working Conditions: | RT To 35℃ |
|---|---|---|---|
| Control Method: | PWM Control | Temp Uniformity: | ±2℃(No-load) |
| Temp Fluctuation: | ±0.5℃(No-load) | Temp Range: | Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized. |
| Highlight |
High Temperature And Humididty Test Chamber,Lab Temperature And Humididty Test Chamber,Lab Humidity Chamber AC220V |
||
Product Description
Climatic test chambers simulate environmental conditions for product testing, with international standards ensuring products can withstand temperature, humidity, and other environmental stresses.
- IEC 60068: Environmental tests for electrotechnical products including damp heat, low temperature, thermal shock, and vibration tests
- IEC 61215, IEC 61646, IEC 62108: Standards for photovoltaic solar panel testing
- ISO 10993: Biological evaluation guidelines for medical devices
- ISO 16750: Environmental testing for automotive electrical/electronic equipment
- ICH Q1A (R2), ICH Q1B, ICH Q5C: Pharmaceutical stability testing guidelines
- MIL-STD-810: U.S. military environmental testing procedures
- JIS C 60068-2-78: Japanese industrial standard for humid/hot environments
- Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP)
Essential for manufacturers of electrical/electronic equipment, solar panels, medical devices, and pharmaceuticals to ensure product reliability under various environmental conditions.
- Damp heat test (IEC 60068-2-30)
- Low temperature test (IEC 60068-2-1)
- Thermal shock test (IEC 60068-2-14)
- Vibration test (IEC 60068-2-6)
| Model | JQTH-100 | JQTH-150 | JQTH-225 | JQTH-408 | JQTH-800 | JQTH-1000 | JQTH-1200 | JQTH-1500 |
|---|---|---|---|---|---|---|---|---|
| Volume (L) | 100L | 150L | 225L | 408L | 800L | 1000L | 1200L | 1500L |
| Inner Size (cm) | 50×40×50 | 50×50×60 | 70×46×70 | 70×75×80 | 100×80×100 | 100×100×100 | 150×80×100 | 150×100×100 |
| Power | 5.5KW | 6KW | 8.5KW | 9KW | 13.5KW | 15KW | 17KW | 18KW |
| Weight (kg) | 300 | 360 | 430 | 530 | 780 | 890 | 1100 | 1380 |
- Observation Window ×1
- Cable Port (￠50mm×2)
- Shelves ×2
- Chamber lamp ×1
- Power cable 2m
- No-Fuse Breaker
- Over-pressure, Over-load and Over-current protection
- Over-Temp Protector
- Over-voltage coolant protector
- Dry heat protector
- Fault warning system
- Short of water protector
