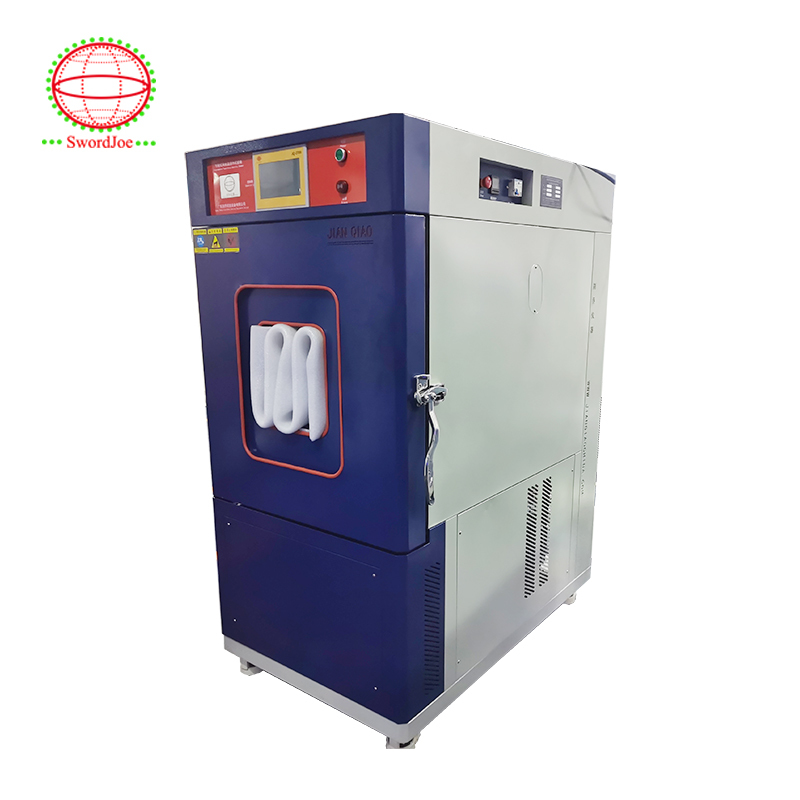

150L High Temperature And Humidity Testing Chamber For Electronic Automotive Aerospace Parts
Product Details
| Power Supply: | AC 220V Or AC380V 50Hz 3 PHASE With Ground Wire | Working Conditions: | RT To 35℃ |
|---|---|---|---|
| Control Method: | PWM Control | Temp Uniformity: | ±2℃(No-load) |
| Temp Fluctuation: | ±0.5℃(No-load) | Temp Range: | Model S:-70°C~+150°C , Model L: -40°C~+150°C Or Customized. |
| Highlight |
150L Temperature And Humidity Testing Chamber,Automotive Humidity Testing Chamber,150L Humidity Testing Chamber |
||
Product Description
JQTH 150L series Climatic Test Chambers is ideal for larger test specimens. The chambers contain a patented climate and temperature conditioning system, setting standards with regards to ease of operation, performance and equipment.
The chambers are available in five capacities ranging from 100 to 1000 Litre and two different temperature ranges. Further options are available to enhance performance and meet specific customer requirements.
- Extremely low noise level
- Low energy consumption
- Safety to test specimens thanks to independent temperature measurement
- Easy to clean stainless steel test space
- Wide humidity range-extreme climate
- Stainless steel 304#1.2mm internally with outernal steel with polymer coating
- Energy-efficient refrigeration with exclusive electronic expansion valve system
- Specialized humidity generation and control
- Unique thermal break construction for extreme testing
- 3" cable port, two shelf & casters included
- New USB port for uploading and downloading programs and test data
- 7"/10" imported "DELTA" touch screen controller
- Optional APP and WLAN port for attached with PC, remote data and programming anywhere, anytime
- English interface
- IEC 60068: This standard covers a wide range of environmental tests for electrotechnical products, including damp heat, low temperature, thermal shock, and vibration tests.
- IEC 61215, IEC 61646, IEC 62108: These standards specifically address testing of photovoltaic solar panels, focusing on thermal cycles, moist heat, and condensing-freezing.
- ISO 10993: Provides guidelines for the biological evaluation of medical devices, including testing for cytotoxicity, sensitization, and irritation.
- ISO 16750: Covers environmental conditions and testing for electrical and electronic equipment used in road vehicles.
- ICH Q1A (R2), ICH Q1B, ICH Q5C: Used in the pharmaceutical industry for stability testing of active ingredients and finished drugs.
- MIL-STD-810: A U.S. military standard that includes a range of environmental testing procedures, including high humidity tests.
- JIS C 60068-2-78: A Japanese industrial standard focused on testing the performance of products and materials in humid and hot environments.
- Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP): Crucial in chemical, pharmaceutical, and life sciences industries for ensuring consistent testing and process control.
| Model | JQTH-100 | JQTH-150 | JQTH-225 | JQTH-408 | JQTH-800 | JQTH-1000 | JQTH-1200 | JQTH-1500 |
|---|---|---|---|---|---|---|---|---|
| Volume (L) | 100L | 150L | 225L | 408L | 800L | 1000L | 1200L | 1500L |
| Inner size (cm) W | 50 | 50 | 70 | 70 | 100 | 100 | 150 | 150 |
| Inner size (cm) D | 40 | 50 | 46 | 75 | 80 | 100 | 80 | 100 |
| Inner size (cm) H | 50 | 60 | 70 | 80 | 100 | 100 | 100 | 100 |
| Outer size (cm) W | 70 | 70 | 90 | 90 | 120 | 120 | 200 | 200 |
| Outer size (cm) D | 125 | 135 | 157 | 188 | 185 | 205 | 135 | 155 |
| Outer size (cm) H | 157 | 167 | 185 | 195 | 215 | 215 | 215 | 215 |
| Temp range | Model S:-70°C~+150°C , Model L: -40°C~+150°C or customized | |||||||
| Exterior material | Standard 1.5mm Electrolytic plate with Electrostatic painting | |||||||
| Interior material | Matte Stainless steel plate SUS 304 | |||||||
| Insulation material | Rigid Polyurethane Foam and Glass Fiber Wool | |||||||
| Refrigeration system | Hermetic Compressor, Cascade Refrigeration CFC free refrigeration system, HFC-R404A/HFC-23/HFC-R449 /HFC-507 | |||||||
| Control method | PWM control | |||||||
| Working conditions | RT to 35℃ | |||||||
| Humidity range | 10% to 98% RH | |||||||
| Temp fluctuation | ±0.5℃(No-load) | |||||||
| Temp uniformity | ±2℃(No-load) | |||||||
| Temp cooling rate | +150°C ~-70°C, 0.8°C~1℃/min (Non-Linear) | |||||||
| Temp rising rate | -70°C~+150°C, 1°C~3℃/min (Non-Linear) | |||||||
| Controller | TW DELTA PLC, 7" color touch screen control Chinese, English, Russian menu. Operation Model: Setting Fix /Program | |||||||
| Standard Accessories | Observation Window *1, Cable Port (￠50mm*2), Shelves*2, Chamber lamp*1, Power cable 2m | |||||||
| Safety device | No-Fuse Breaker, Over-pressure, Over-load and Over-current protector for compressor, Over-Temp Protector, Over-voltage coolant protector, Overload protector for fan, Dry heat protector and Fault warning system, short of water protector | |||||||
| Configuration interface | With USB, WLAN, RS232 or R485 port, APP function is optional | |||||||
| Power | 5.5KW | 6KW | 8.5KW | 9KW | 13.5KW | 15KW | 17KW | 18KW |
| Weight (kg) | 300 | 360 | 430 | 530 | 780 | 890 | 1100 | 1380 |
| Power supply | AC 220V or AC380V 50Hz 3 PHASE, Ground wire | |||||||
