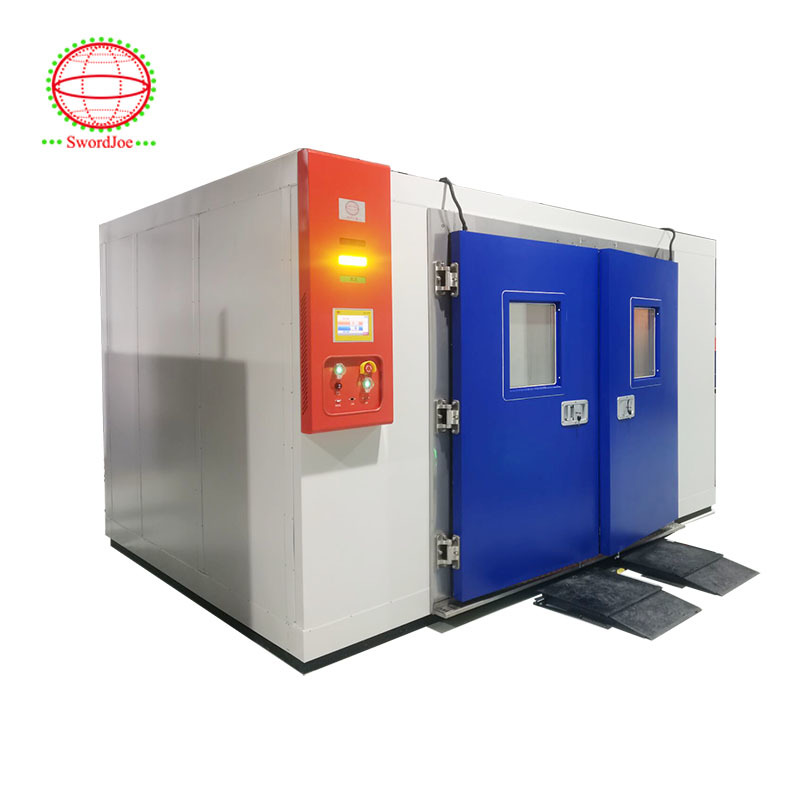

A walk-in environmental test chamber is a large-scale temperature and humidity-controlled enclosure that allows personnel to enter and conduct tests on large components, assemblies, or products under specific environmental conditions. These chambers simulate various environmental conditions, including extreme temperatures and humidity levels, and can be used for stress testing, accelerated aging, and other types of environmental simulation.
Model | JQWI-08 | JQWI-12 | JQWI-16 | JQWI-25 | JQWI-34 | JQWI-40 |
---|---|---|---|---|---|---|
Internal Dimensions (cm) | 200×200×200 | 200×300×200 | 220×350×210 | 300×400×210 | 340×480×220 | 400×500×220 |
External Dimensions (cm) | 230×360×240 | 230×460×240 | 246×520×250 | 330×560×250 | 370×660×270 | 430×660×270 |
Volume | 8.0 m³ | 12 m³ | 16 m³ | 25 m³ | 34 m³ | 40 m³ |
Temperature Range | -70°C/-40°C to +85°C/+120°C/+150°C/+180°C (customizable) | |||||
Humidity Range | 20% to 98% RH | |||||
Temperature Fluctuation | ±0.5°C | |||||
Temperature Cooling Rate | 1°C/min (customizable) | |||||
Temperature Heating Rate | 3°C/min (customizable) | |||||
Construction Materials | Exterior: Color steel plate/cold-rolled steel coating/metal laminate Interior: SUS304 stainless steel |
|||||
Control System | TW DELTA PLC with 7" or 10" color touch screen | |||||
Compressor | Tecumseh (France), Bitzer or Bock (Germany) | |||||
Power Supply | AC 380V @50Hz |
