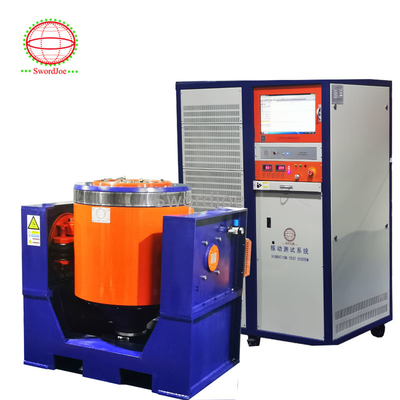

2/4/8/16 Channel Vibration Test Machine For In House Vibration Testing
Product Details
| Frequency: | 2000Hz | Sine Force: | 20kN /2000kg/4409lbf |
|---|---|---|---|
| Random Force: | 20kN /2000kg/4409lbf | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 300KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
16 Channel Vibration Test Machine,4 Channel Vibration Test Machine,8 Channel Vibration Test Machine |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 20kN / 2000kg / 4409lbf |
| Random force | 20kN / 2000kg / 4409lbf |
| Shock force | 98kN / 9800kg / 9918lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4") / 76mm (3") / 51mm (2") |
| Maximum load | 300KG |
| Moving parts mass | 20KG |
| Armature diameter | 335mm |
When considering vibration testing, companies face the choice between using external laboratories or establishing in-house capabilities. While outsourcing avoids capital costs and maintenance requirements, in-house testing provides superior scheduling control, eliminates transportation issues, and enhances security. Having dedicated equipment and trained personnel also facilitates rapid response to quality issues detected through vibration testing.
A complete vibration testing system typically includes four key components:
- Vibration Controller: The system's "brain" that compares measured signals to desired test profiles and computes necessary drive signals.
- Amplifier: Powers the system while monitoring all operational parameters for safety.
- Shaker: Provides the electromechanical force required for testing, with capacity for vertical and/or horizontal operation.
- Blower: Maintains proper cooling for the shaker system, with configurations varying by system size.
As a leading manufacturer specializing in vibration test systems, environmental test chambers, and battery testing equipment, we combine strong R&D capabilities with comprehensive sales and service networks. For 20 years, we've provided high-quality products and complete solutions to numerous Fortune 500 companies and over 11,000 end users.
Our products are manufactured in compliance with ISO9001 standards and meet international specifications including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and IEC. They are widely used in new energy vehicles, aerospace, marine, and electronics industries, serving research institutions, quality inspection agencies, and academic fields.
