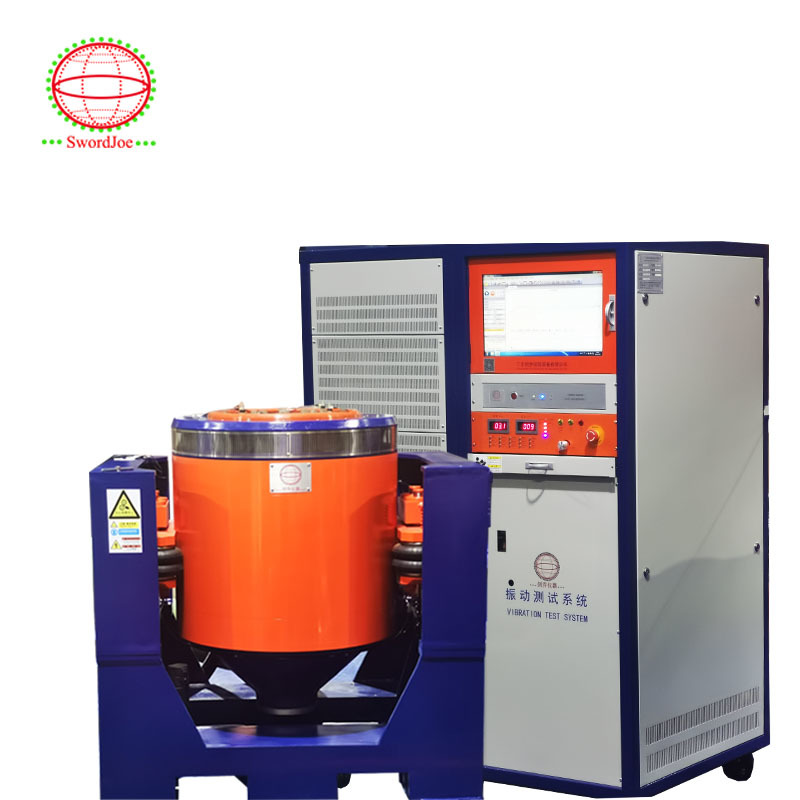

Automotive Electronics Vibration Test Machine Mechanical Shock And Vibration Table
Product Details
| Frequency: | 2000Hz | Sine Force: | 20kN /2000kg/4409lbf |
|---|---|---|---|
| Random Force: | 20kN /2000kg/4409lbf | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 300KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
Electronics Vibration Test Machine,Automotive Shock And Vibration Table,Mechanical Shock And Vibration Table |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 20kN / 2000kg / 4409lbf |
| Random force | 20kN / 2000kg / 4409lbf |
| Shock force | 98kN / 9800kg / 9918lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4") / 76mm (3") / 51mm (2") |
| Maximum load | 300KG |
| Moving parts mass | 20KG |
| Armature diameter | 335mm |
Our vibration testing and mechanical shock testing equipment helps develop higher quality products that can withstand vibration and shock stresses expected during end use. Industries such as automotive and electronics require these tests during product development.
Our laboratory provides comprehensive testing capabilities with hydraulic vibration tables and electrodynamic vibration shakers. The system can be combined with a climate chamber for more realistic test environments. We offer testing according to various standards as well as custom parameters specified by clients.
- Random vibration test (with or without controlled temperature)
- Sine vibration test (with or without controlled temperature)
- Sine on Random (with or without controlled temperature)
- Resonant frequency search test
- Mechanical shock test
- Bump test
- MSZ EN 60068-2-6 (IEC 60068-2-6) Environmental testing - Vibration (sinusoidal)
- MSZ EN 60068-2-64 (IEC 60068-2-64) Environmental testing - Vibration, broadband random
- MSZ EN 60068-2-27 (IEC 60068-2-27) Environmental testing - Shock
- ISO 16750-3 EN Road vehicles - Environmental conditions and testing Part 3 Mechanical Loads
- VW 80000 - Vibration and mechanical shock tests
- Various industrial standards
Guangdong Jianqiao Testing Equipment Co., Ltd. is a leading manufacturer specializing in vibration test systems, environmental test chambers, and battery testing equipment. With over 20 years of experience, we have provided high-quality products and comprehensive solutions to numerous Fortune 500 companies and over 11,000 end users.
Our products are manufactured in strict compliance with ISO9001 standards and meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and IEC. They are widely used in new energy vehicles, aerospace, shipbuilding, electronics, and other industries, serving research institutions, quality inspection agencies, and academic fields.
