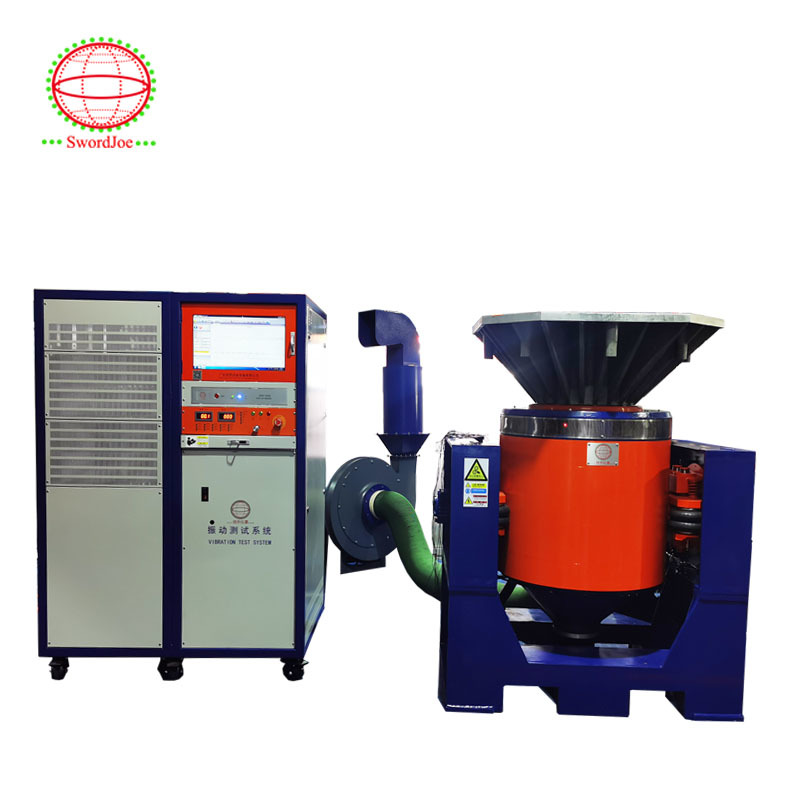

Industrial Vibration Table For Testing Automotive Components

Brand Name:	Jianqiao
Model Number:	JQA-202-335
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Climatic Test Chamber Catal...25.pdf

Frequency:

2000Hz

Sine Force:

20kN /2000kg/4409lbf

Random Force:

20kN /2000kg/4409lbf

Shock Force:

98kN /9800kg/9918lbf

Channel:

2/4/8/16

Maximum Acceleration:

100g

Maximum Displacement:

100mm (4"）/76mm (3")/51mm (2")

Maximum Load:

300KG

Moving Parts Mass:

20KG

Armature Diameter:

335mm

Packaging Details:

Wooden case

Supply Ability:

300 sets

Highlight:

Industrial Vibration Table For Testing

Automotive Vibration Table For Testing

Product Description

Vibration Testing for Automotive Component Quality Assurance

In automotive manufacturing, product quality is paramount. Vibration testing ensures components can withstand the rigorous demands of vehicle operation, going beyond basic certifications to deliver true reliability.

Technical Specifications

Attribute	Value
Frequency	2000Hz
Sine force	20kN / 2000kg / 4409lbf
Random force	20kN / 2000kg / 4409lbf
Shock force	98kN / 9800kg / 9918lbf
Channel	2/4/8/16
Maximum acceleration	100g
Maximum displacement	100mm (4") / 76mm (3") / 51mm (2")
Maximum load	300KG
Moving parts mass	20KG
Armature diameter	335mm

Comprehensive Automotive Component Testing

Automotive components must endure extreme conditions. Our vibration testing systems simulate real-world stresses to identify potential failures before production, ensuring components meet OEM and federal requirements.

Critical Testing Applications

Modern vehicles rely on sensitive electronics that must function in harsh environments. Our testing solutions address:

Circuit board durability under vibration stress
Resonance detection and mitigation
Thermal shock resistance
Material fatigue analysis
Non-destructive testing (NDT) with X-ray and CT scanning

Advanced Testing Methodologies

Our Resonance Search, Track and Dwell (RSTD) process begins with sine sweeps to identify resonant frequencies, followed by targeted stress testing. This specialized approach reveals weaknesses that standard testing might miss.

Detailed Analysis Capabilities

Comprehensive pre- and post-test analysis, including advanced X-ray techniques, allows for thorough component evaluation without destruction. This reduces testing costs while maintaining rigorous quality standards.

Shaker System Specifications

Model	JQA-202-335 / JQA-203-335
Frequency Range (Hz)	5~3000
Rated Sinusoidal Force (KN)	20
Shock Force (KN)	40/60✱
Max. Acceleration (m/s²)	980
Max. Speed (m/s)	2
Max. Displacement (mmp-p)	51/76
Max. Load (kg)	300
Vibration Isolation Frequency (Hz)	2.5
Shaking Table Type	JQ-20

About Guangdong Jianqiao Testing Equipment Co., Ltd

As a leading manufacturer with over 20 years of experience, we specialize in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment. Our team of senior R&D engineers and nationwide service network ensures top-quality products and comprehensive solutions.

Our products meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, and GB/T, serving industries such as new energy vehicles, aerospace, shipping, and electronics. We provide testing solutions for scientific research institutions, quality inspection agencies, and academic fields worldwide.
