Vibration Testing Machine for EV Battery Packs in Vibration Testing
Product Details
| Frequency: | 2000Hz | Sine Force: | 20kN /2000kg/4409lbf |
|---|---|---|---|
| Random Force: | 20kN /2000kg/4409lbf | Shock Force: | 98kN /9800kg/9918lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 300KG |
| Moving Parts Mass: | 20KG | Armature Diameter: | 335mm |
| Highlight |
2000hz vibration testing device,2000hz vibration testing machine |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 20kN / 2000kg / 4409lbf |
| Random force | 20kN / 2000kg / 4409lbf |
| Shock force | 98kN / 9800kg / 9918lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4") / 76mm (3") / 51mm (2") |
| Maximum load | 300KG |
| Moving parts mass | 20KG |
| Armature diameter | 335mm |

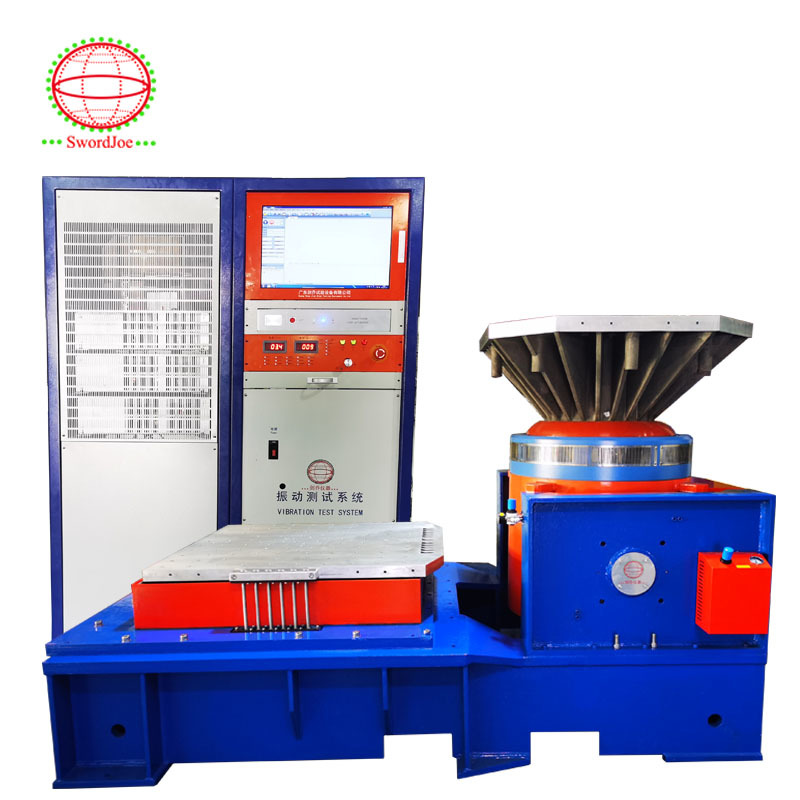

Electromagnetic Vibration Test Machine for EV battery pack durability testing including sinusoidal, random, and shock vibration tests.
Vibration testing for EV battery packs involves subjecting them to controlled vibrations to simulate real-world conditions and assess their durability and performance. These tests help identify potential weaknesses and ensure the battery can withstand the stresses of vehicle operation and transportation.
- Durability Assessment: Evaluates the battery's ability to withstand vibrations without failure
- Performance Validation: Verifies electrical performance remains within acceptable limits
- Compliance with Standards: Meets industry standards like UN 38.3 and IEC 62660-2
- Sinusoidal Vibration: Single frequency vibration to identify resonant frequencies
- Random Vibration: Simulates real-world driving conditions with multiple frequencies
- Sine-on-Random: Combines sinusoidal and random vibrations
- Shock Testing: Applies sudden, high-impact forces to simulate collisions
| Parameter | Value |
|---|---|
| Frequency Range (Hz) | 5~3000 |
| Rated sinusoidal force (KN) | 20 |
| Shock force (KN) | 40/60 |
| Max. acceleration (m/s²) | 980 |
| Max. speed (m/s) | 2 |
| Max. displacement (mmp-p) | 51/76 |
| Max. load (kg) | 300 |
| Vibration isolation frequency (Hz) | 2.5 |
| Moving parts weight (kg) | 23 |
| Armature diameter (φmm) | 335 |
We are a large-scale professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With our advantage in technical expertise, professional production and sales teams, and comprehensive after-sales service, we provide high-quality products and one-stop solutions for numerous top enterprises and end users.
Our products are manufactured in strict accordance with ISO9001 standards and meet various international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and GJB. They are widely used in new energy vehicles, aerospace, shipping, electronics and other industries, serving scientific research units, quality inspection institutions and academic fields.
