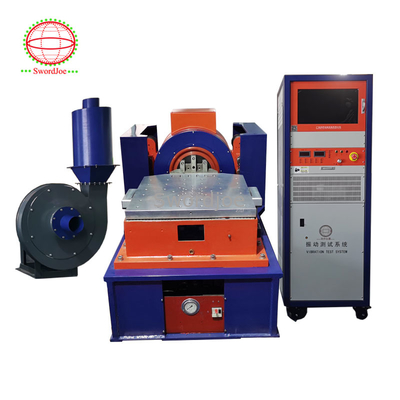

Electromagnetics Vibration Test Table Machine for Automotive Components ISO 16750 IEC 60068 ECE R100
Product Details
| Frequency: | 2000Hz | Sine Force: | 49kN /4900kg/826.3lbf |
|---|---|---|---|
| Random Force: | 49kN /4900kg/826.3lbf | Shock Force: | 98kN /9800kg/1652.6lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 800KG |
| Moving Parts Mass: | 49KG | Armature Diameter: | 450mm |
| Highlight |
Electromagnetics Vibration Test Table,Vibration Test Table IEC 60068 |
||
Product Description
| Attribute | Value |
|---|---|
| Frequency | 2000Hz |
| Sine force | 49kN / 4900kg / 826.3lbf |
| Random force | 49kN / 4900kg / 826.3lbf |
| Shock force | 98kN / 9800kg / 1652.6lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4") / 76mm (3") / 51mm (2") |
| Maximum load | 800KG |
| Moving parts mass | 49KG |
| Armature diameter | 450mm |
Our electromagnetic vibration test machines simulate real-world vibrational stresses encountered by automotive parts, including:
- Road-induced vibration (bumps, potholes, rough terrain)
- Engine and drivetrain vibration
- Aerodynamic forces (wind resistance, turbulence)
- Operational vibration (braking, acceleration, handling dynamics)
The system provides precise control over frequency, amplitude, and acceleration to accurately reproduce these conditions.
- Reliability Testing: Ensures components withstand long-term vibration exposure
- Fatigue & Durability Testing: Identifies weak points that could lead to premature wear
- NVH Analysis: Reduces unwanted vibration and noise to improve comfort
- Regulatory Compliance: Meets industry standards (ISO 16750, SAE J1455, IEC 60068)
- Product Development: Enables design optimization before mass production
| Parameter | Value |
|---|---|
| Model | JQA-502-450 |
| Frequency Range (Hz) | 5~2700 |
| Sine Force (KN) | 49 |
| Shock Force (KN) | 100/150* |
| Max. Acceleration (m/s²) | 980 |
| Max. Speed (m/s) | 2 |
| Max. Displacement (mmp-p) | 51/76 |
| Max. Load (kg) | 800 |
| Vibration Isolation Frequency (Hz) | 2.5 |
We are a professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment. With over 20 years of experience, we provide high-quality products and comprehensive solutions to top enterprises and research institutions worldwide.
Our products comply with international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, and are widely used in new energy vehicles, aerospace, shipping, electronics and scientific research.
