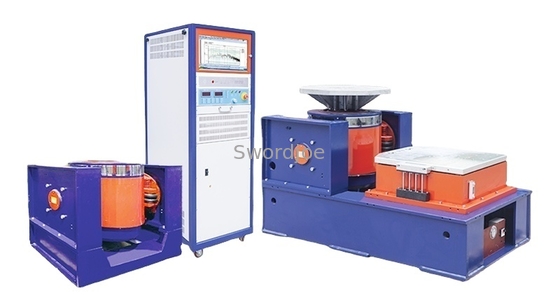

Vibration Test Machine For Military Standard (MIL-STD) The International Electrotechnical Commission (IEC)
Product Details
| Frequency: | 2000Hz | Sine Force: | 40kN /4000kg/674.43lbf |
|---|---|---|---|
| Random Force: | 40kN /4000kg/674.43lbf | Shock Force: | 80kN /8000kg/1348.86lbf |
| Channel: | 2/4/8/16 | Maximum Acceleration: | 100g |
| Maximum Displacement: | 100mm (4"）/76mm (3")/51mm (2") | Maximum Load: | 500KG |
| Moving Parts Mass: | 40KG | Armature Diameter: | 440mm |
| Highlight |
mil-std vibration machine test,mil-std vibration test machine,iec vibration machine test |
||
Product Description
| Attribute | Specification |
|---|---|
| Frequency | 2000Hz |
| Sine force | 40kN / 4000kg / 674.43lbf |
| Random force | 40kN / 4000kg / 674.43lbf |
| Shock force | 80kN / 8000kg / 1348.86lbf |
| Channel | 2/4/8/16 |
| Maximum acceleration | 100g |
| Maximum displacement | 100mm (4") / 76mm (3") / 51mm (2") |
| Maximum load | 500KG |
| Moving parts mass | 40KG |
| Armature diameter | 440mm |
When creating equipment for tough environments, reliability under physical stress is critical. Our vibration test machines help ensure products can survive demanding conditions in military operations or industrial settings.
Two key standards for these tests are:
- Military Standard (MIL-STD) - For defense and extreme environment applications
- International Electrotechnical Commission (IEC) Standard - For industrial and commercial compliance
Military Standards (MIL-STD) are developed by the U.S. Department of Defense to ensure equipment reliability in extreme conditions. MIL-STD-810 focuses on environmental stresses including shock, vibration, temperature extremes, and humidity.
IEC Standards ensure safe performance of electrical/electronic equipment in industrial settings. The IEC 60068 series covers environmental testing including shock and vibration.
Choose MIL-STD for extreme conditions in military, aerospace, or rugged industrial applications.
Choose IEC for cost-effective, globally recognized testing in industrial, transportation, or commercial environments.
| Shaker Model | JQA-502-450 | JQA-503-450 |
|---|---|---|
| Frequency Range (Hz) | 5~2700 | |
| Sine force (KN) | 50 | |
| Shock force (KN) | 100 | 150 |
| Max. acceleration (m/s²) | 980 | |
| Max. speed (m/s) | 2 | |
| Max. Displacement (mmp-p) | 51 | 76 |
Guangdong Jianqiao Testing Equipment Co., Ltd is a professional manufacturer specializing in R&D, production and sales of vibration test systems, environmental test chambers and battery testing equipment.
With over 20 years of experience, we provide high quality products and solutions that meet international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and IEC. Our equipment serves industries including:
- New energy vehicles
- Aerospace
- Shipping
- Electronics
- Scientific research
- Quality inspection
