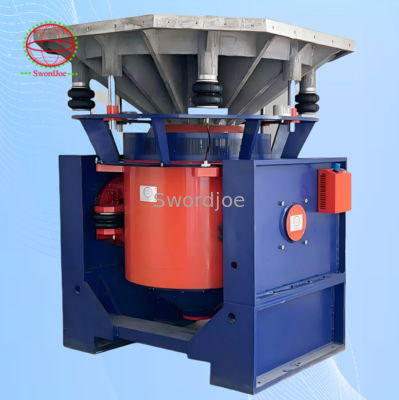

Electron-Dynamic Vibration Test Machine for ISTA1A/2A/3A/6A Package Vibration Test
Technical Specifications
| Frequency |
2000Hz |
| Sine force |
3kN /300kg/674.43lbf |
| Random force |
3kN /300kg/674.43lbf |
| Shock force |
6kN /600kg/1348.86lbf |
| Channel |
2/4/8/16 |
| Maximum acceleration |
100g |
| Maximum displacement |
100mm (4")/76mm (3")/51mm (2") |
| Maximum load |
120KG |
| Moving parts mass |
3KG |
| Armature diameter |
150mm |
Product Overview
The air-cooled series-electric vibration test system offers wide frequency range, excellent performance indicators, high reliability, compact footprint, easy mobility, and simple operation. Available in various models with excitation forces ranging from 1kN to 70kN and maximum loads from 70kg to 1000kg.
Key Applications
Widely used in aviation, aerospace, defense, marine, communications, automotive, electronics, electrical appliances, and other industries. Provides comprehensive testing solutions for multiple environmental conditions including climate and mechanical testing.
System Components
The complete system includes a vibration table, power amplifier, and cooling fan. Various controller options are available with multiple choices for additional control and measurement equipment.
Performance Features
- Forced air cooling system
- 1:1 ratio for random and sinusoidal excitation force
- Displacement peak-to-peak value up to 100mm
- Trunnion airbag with excellent isolation effect
- Double magnetic circuit design with low magnetic flux leakage and uniform magnetic field
- Sinusoidal excitation force range: 1kN ~ 70kN
- Double sinusoidal impact force (three times more than 2 tons)
- Light dynamic coil with optimized design and strong vibration resistance
- Center airbag with strong carrying capacity and excellent low frequency performance
- Configurable horizontal slide
- High-efficiency cooling fan with low noise operation
- Frequency range starting from 1Hz
High Dynamic Winding Reliability
The innovative structure and technology of the dynamic winding reinforcement ring significantly enhance vibration resistance reliability in high thrust, high acceleration vibration, impact, and high temperature environments.
Advanced Cooling System
The cooling fan features a unique air duct and structural design, providing excellent cooling efficiency with minimal noise.
Versatile Testing Orientation

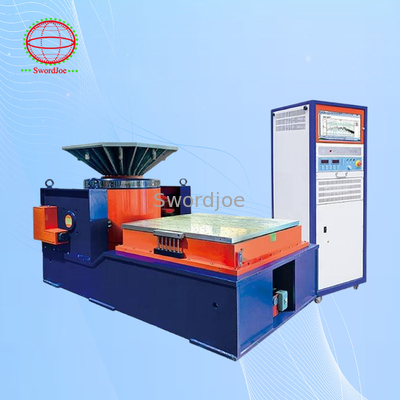

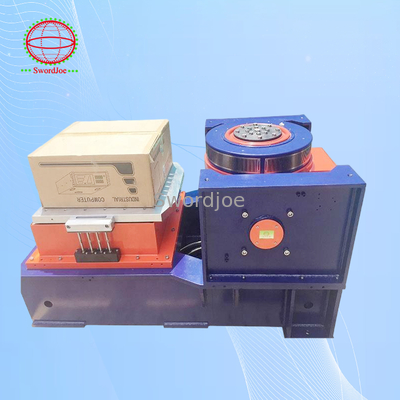

The electric vibration table with horizontal slide enables both horizontal and vertical testing, with simple and easy control for switching between orientations.
IGBT Module Technology
The amplifiers incorporate reliable MOSFET and IGBT modules for exceptional stability and reliability.
Detailed Specifications
| Parameter |
Value |
| Shaker Model |
JQA-202-335/JQA-203-335 |
| Frequency Range (Hz) |
5~3000 |
| Rated sinusoidal force (KN) |
20 |
| Shock force (KN) |
40/60 |
| Max. acceleration (m/s²) |
980 |
| Max. speed (m/s) |
2 |
| Max. displacement (mmp-p) |
51/76 |
| Max. load (kg) |
300 |
| Vibration isolation frequency(Hz) |
2.5 |
| Shaking table type |
JQ-20 |
| Moving parts weight (kg) |
23 |
| Armature diameter (φmm) |
335 |
| Allowable eccentric moment (N x m) |
490 |
| Outer dimension (W*H*D)(mm) |
1080*990*860 |
| Shaker weight (kg) |
1600 |
| Power amplifier model |
PA-20 |
| Max. output power (KVA) |
20 |
| Amplifier Size (W*H*D) |
550*1750*850 |
| Power amplifier Weight (kg) |
410 |
| Power Amplifier working model |
Switch |
| System power consumption (KVA) |
40 |
| Cooling method |
Forced air cooling |
| Fan model |
FJ-3000 |
| Rated flow (m³/min) |
40 |
| Rated wind pressure (kPa) |
3.5/8.8 |
| Fan power (KW) |
7.5 |
ISTA 1A/2A/3A/6A Package Vibration Test
Compliance with International Standards
IEC62660-2 (Secondary lithium-ion cells for electric road vehicles)
IEC 62281 (Safety during transport)
IEC 62133-2:2017 (Safety requirements)
IEC60068-2-64 (Broadband random vibration)
IEC60068-2-6 (Sinusoidal vibration)
IEC60086-4 (Lithium battery safety)
UN 38.3.4.3 (Dangerous goods transport)
UL-1642 (Lithium battery safety)
ISO16750-2 (Automotive electronic equipment)
ISTA6-AMAZON.COM-SIOC (Amazon distribution)
ISTA6-AMAZON.COM-Over Boxing (E-commerce fulfillment)
RTCA-DO-160G (Airborne equipment vibration)
SAE J1211 (Automotive module validation)
About Guangdong Jianqiao Testing Equipment Co., Ltd
As a large-scale professional manufacturer specializing in R&D, production, and sales of vibration test systems, environmental test chambers, and battery testing equipment, we combine technical expertise with comprehensive service. Our team includes senior R&D engineers and professionals across all departments, supported by a nationwide marketing network.
Over the past 20 years, we have provided high-quality products and complete solutions to numerous top enterprises and over 11,000 end users. Our manufacturing processes strictly adhere to ISO9001 standards, with products meeting international standards including ISO, ASTM, DIN, EN, BS, UL, JIS, GB/T, GJB, and others.
Our products serve diverse industries including new energy vehicles, aerospace, shipping, electronics, and scientific research institutions, quality inspection agencies, and academic fields.
