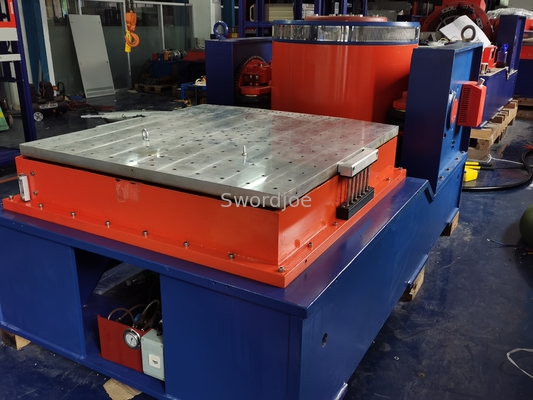

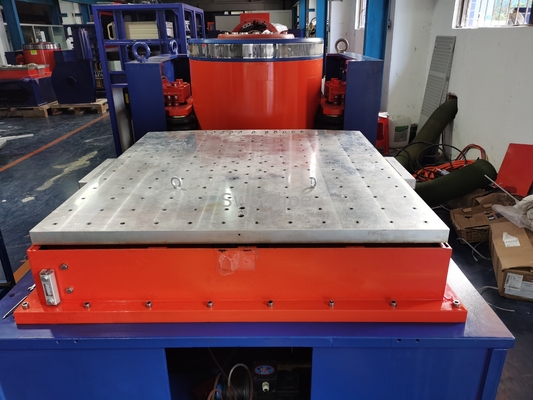

Vertical Horizontal Slip Table Vibration Test System With ISTA MIL-STD UN38.3 Standard
Product Details
| Power: | 380V 50Hz | Vibration Direction: | 3 Axis |
|---|---|---|---|
| Cooling Type: | Air Cooling | ||
| Highlight |
vertical vibration test table,vertical vibration test system,horizontal vibration test table |
||
Product Description
Application
Electrodynamic Vibration Test Table: composed of Vibration Table Body, Power Amplifier, Horizontal Slide Table, Head Expander Table, Vibration Controller, Accelerometer, etc., It can be divided into air-cooled type and water-cooled type Vibration Test Table . It is a necessary tool for design, development, production, quality control and quality assurance of modern products. It is different from ordinary vibration table. The electromagnetic vibration table is mainly for high frequency, large displacement . At the same time, the high-frequency vibration table has the advantages of wide vibration response frequency, high control precision, simulation of various waveforms and specifications, easy control, good expansion performance and easy maintenance.
Multi-Mode Regulation
Sine, Random, Resonant search and dwell, Classical Shock and Road simulation modes.
Strong Carrying Capacity
The central load airbag has large static stiffness, small dynamic rigidity, strong carrying capacity, and good effect when the amplitude changes.
Zero Interference Control
Double magnetic circuit design has low magnetic flux leakage, and the magnetic field is uniformly solved due to strong electromagnetic field control Circuit interference.
Professional Manufacturer
Independent research and development production in the same industry with high cost performance, excellent quality, maintenance and technical support.
|
Shaker Model |
JQA-502-450 |
|
Frequency Range (Hz) |
5~2700 |
|
Sine force (KN) |
50 |
|
Shock force (KN) |
100 |
|
Max. acceleration (m/s²) |
980 |
|
Max. speed (m/s) |
2 |
|
Max. Displacement (mmp-p) |
51/76 |
|
Max. load (kg) |
800 |
|
Vibration isolation frequency(Hz) |
2.5 |
|

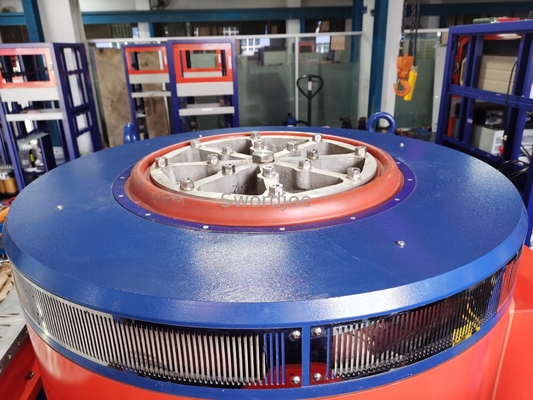

Shaking table type |
JQ-50 |
|
Moving parts weight (kg) |
50 |
|

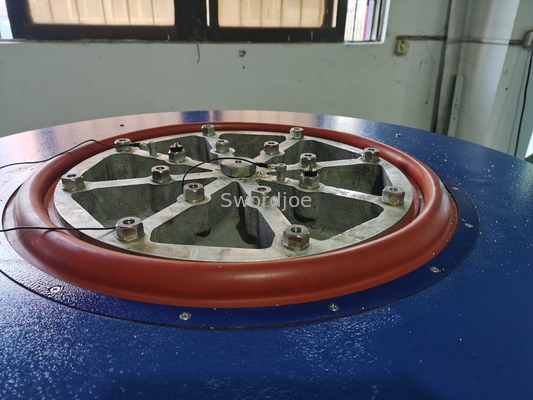

Armature diameter (φmm) |
450 |
|
Allowable eccentric moment(N x m) |
980 |
|
Outer dimension (W·H·D) |
1650*1180*1060 |
|
Shaker weight (kg) |
4500 |
|

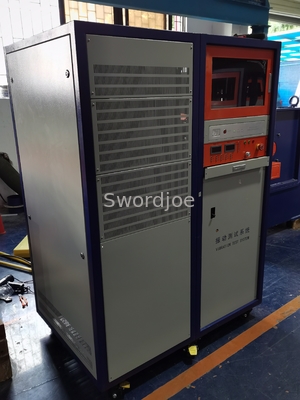

Power amplifier model |
PA-50 |
|
Max. output power(KVA) |
50 |
|
(W·H·D)shape |
550*1850*850 |
|
Power amplifier Weight (kg) |
650 |
|
System power consumption (KVA) |
80 |
|
Cooling method |
Forced air cooling |
|
Fan model |
FJ-5000 |
|
Rated flow (m³/min) |
56 |
|
Rated wind pressure (kPa) |
7.7 |
|
Fan power (KW) |
15 |
