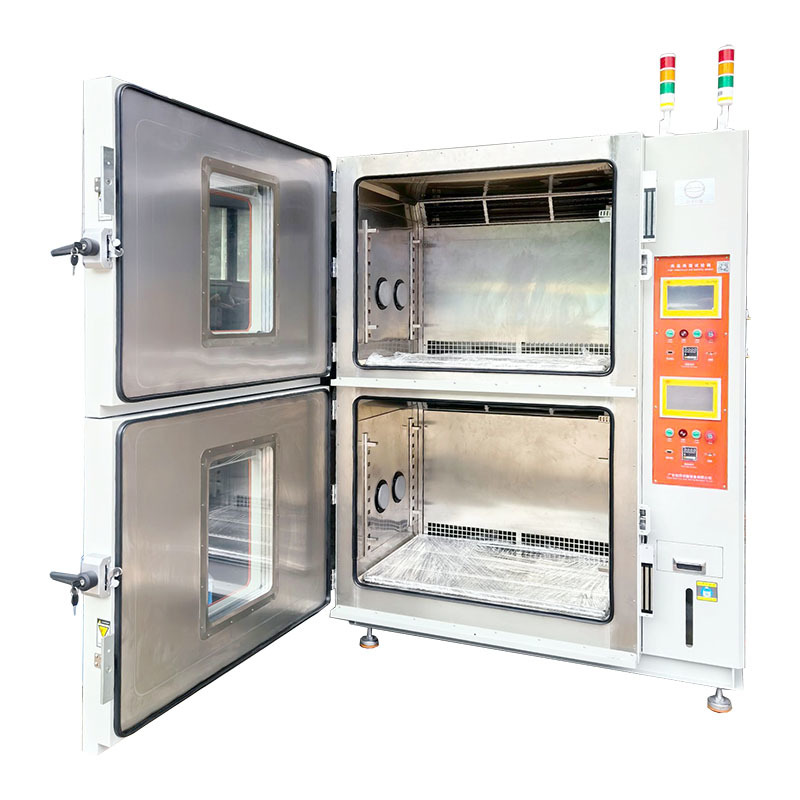

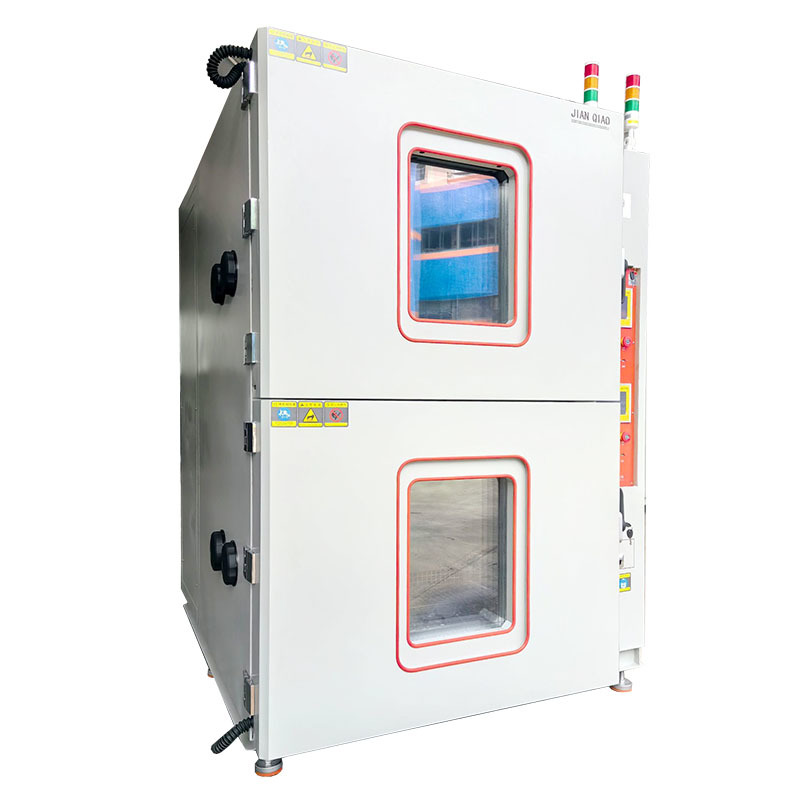

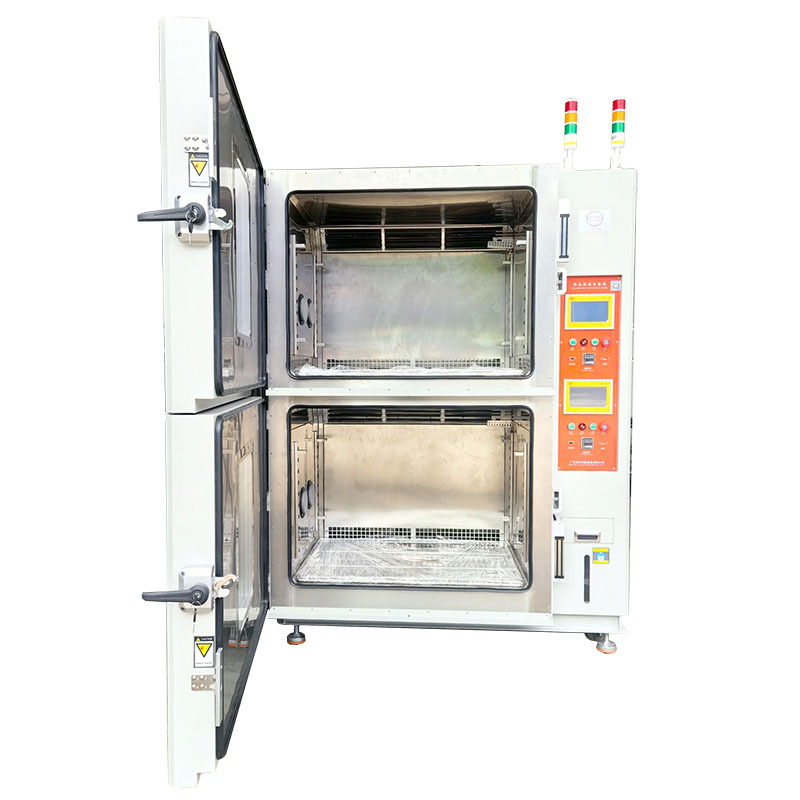

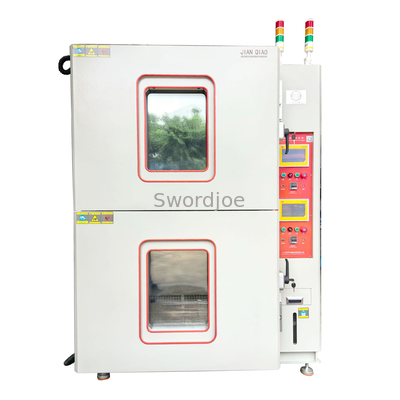

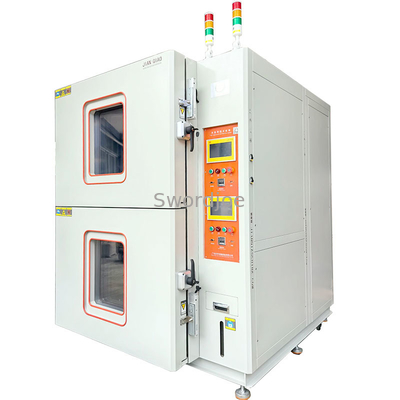

Battery Double Layer High Temperature Aging Test Chamber Explosion Proof
Product Details
| Highlight |
Double Layer Aging Test Chamber,Aging Test Chamber Explosion Proof,Battery Aging Test Chamber |
||
|---|---|---|---|
Product Description
It is mainly used for furnace heat test and heating test in battery safety performance tester .
|
Model |
Inner Size (W·H·D) |
Outer Size (W·H·D) |
Volume |
Temperature range |
Fluctuation/ Uniformity |
Heating time |
Cooling time |
|
|
JQ-G-80-A |
400*400*500 |
600*1450*1050 |
80L |
-40℃~150℃ |
±0.5℃ |
±2℃ |
25℃~150℃ /25min |
+25°C~-40°C /60min |
|
JQ-G-150-A |
500*500*600 |
700*1550*1150 |
150L |
|||||
|
JQ-G-240-A |
500*600*750 |
700*1650*1300 |
240L |
|||||
|
JQ-G-480-A |
800*600*850 |
1000*1650*1400 |
480L |
|||||
|
JQ-G-80-B |
400*400*500 |
600*1450*1050 |
80L |
-70℃~150℃ |
±0.5℃ |
±2℃ |
25℃~150℃ /35min |
+25°C~-70°C /90min |
|
JQ-G-150-B |
500*500*600 |
700*1550*1150 |
150L |
|||||
|
JQ-G-240-B |
500*600*750 |
700*1650*1300 |
240L |
|||||
|
JQ-G-480-B |
800*600*850 |
1000*1650*1400 |
480L |
|||||
