Electrical Control Battery Test Equipment Temperature Cycling Tester AC220V AC380V
Product Details
| Temperature Uniformity: | ±1℃ | Heating Rate: | 3~5℃/min |
|---|---|---|---|
| Sensor: | Imported PT100, Precision 0.01 | Insulation Materials: | PU+ Fiberglass |
| Highlight |
Electrical Battery Test Equipment,Battery Test Equipment AC220V,Battery Temperature Cycling Tester |
||
Product Description

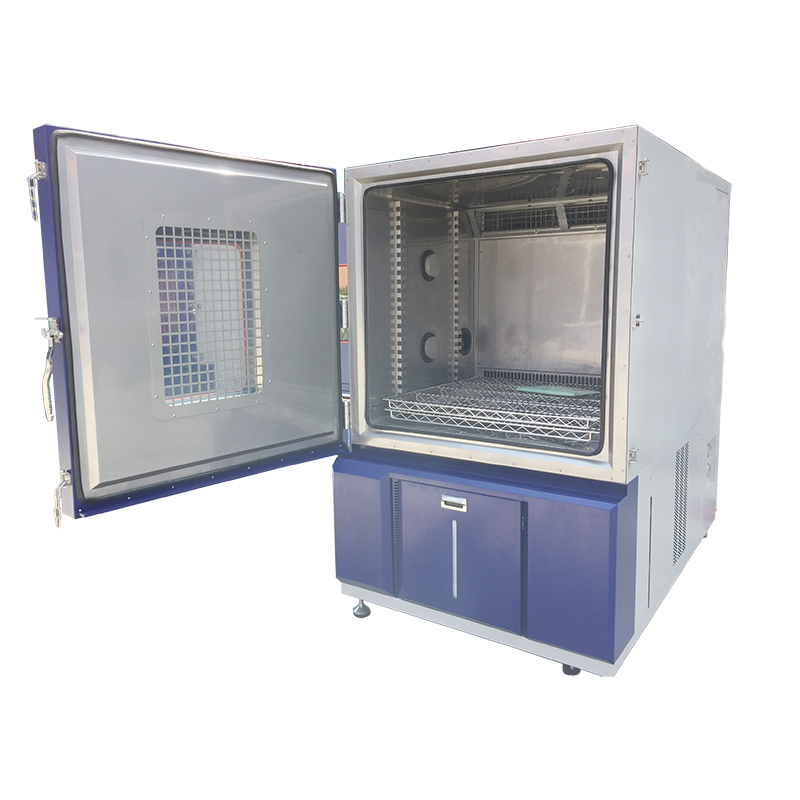

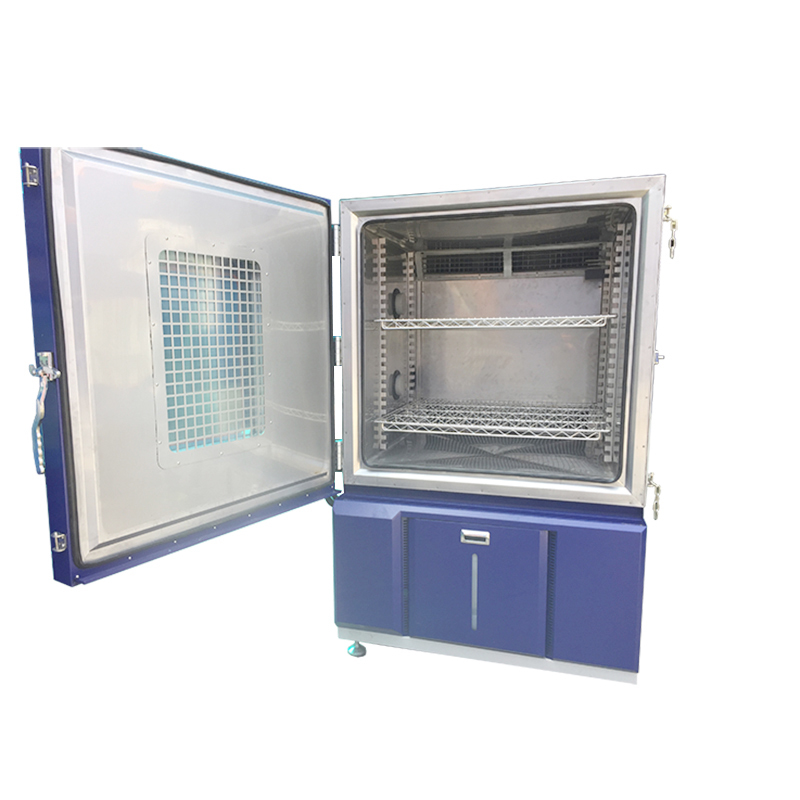

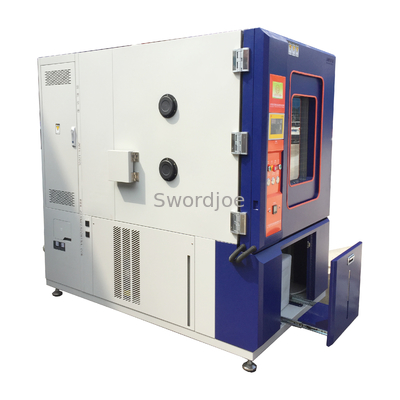

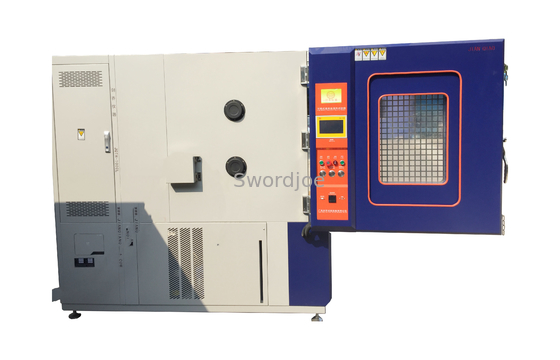

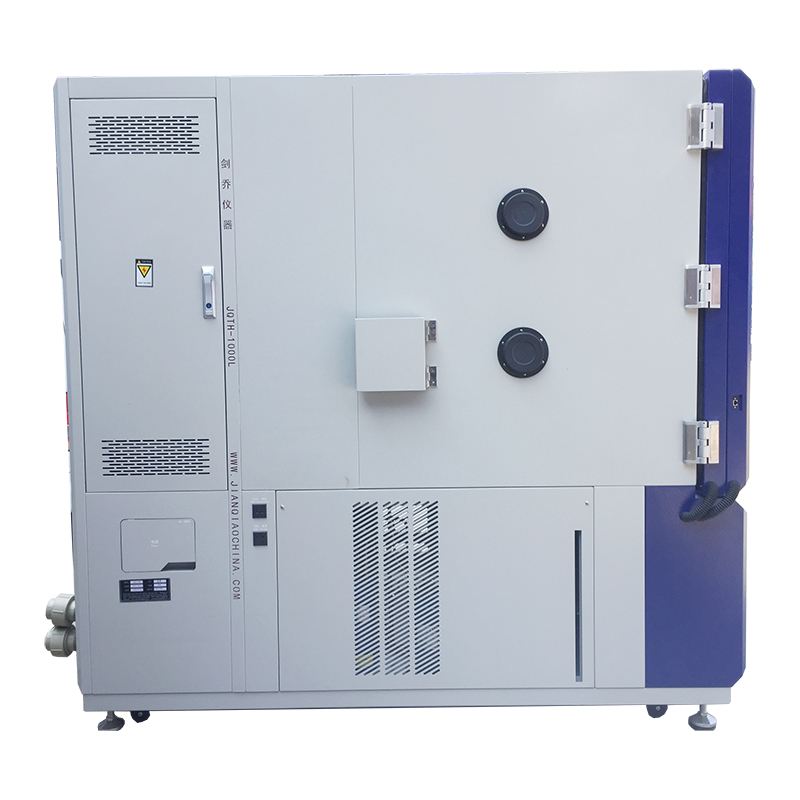

The Temperature Cycle Tester is used to simulate the ability of the battery pack/battery system/battery module/cell sample to adapt to the environment under different temperature and humidity conditions.
Feature
1. The temperature control is PID microcomputer automatic calculation intelligent temperature control table, PV/SV display at the same time, the required temperature can be freely set according to the individual's will within the allowable range of the machine temperature, and its temperature control can be ensured by the PID parameter setting in the table.
2. Warm-in force CA (K) TYPE temperature sensor, the output is 12V.
3. The current controller adopts the imported thyristor solid state relay (SSR) without contact and no spark phenomenon, which maintains the high stability of the current and automatically adjusts the output ratio through the temperature controller signal.
4. Timer: electronic digital display, timed automatic temperature control, temperature to time, time to cut off power supplyand ,it is convenient to observe whether the temperature inside the Chamber is normal when the work is completed
|
Model |
JQ-100-C |
JQ-150-C |
JQ-225-C |
|
|
Content product (L)
|
400*400*500mm |
500*500*600mm |
600*500*750mm |
|
|
External dimensions |
920*1420*1550mm(W·D·H) |
1020*1520*1750mm(W·D·H) |
1120*1520*2050mm(W·D·H) |
|
|
Temperature range |
0℃~150℃(Model A) -20℃~150℃(Model B) -40℃~150℃(Model C) -70℃~150℃(Model D) Optional humidity |
|||
|
Temperature uniformity |
±1℃ |
|||
|
Heating rate |
3~5℃/min |
|||
|
Cooling rate |
0.7℃~1℃/min |
|||
|
Control System |
The original Korean "TMEI" touch screen programmable controller is used. The temperature and humidity control mode is fixed value operation or program operation. It can edit 120 groups of programs, each group has 100 segments, and the communication mode is RS232 or RS485. The communication rate is 9.6Kbps. |
|||
|
Sensor |
Imported PT100, precision 0.01 |
|||
|
Electronic control system |
Electrical control |
|||
|
Cooling System |
Imported Germany Or US compressor |
|||
|
Heating system |
316L stainless steel fin radiator |
|||
|
Test chamber |
The Inner Chamber is made of high-grade mirror stainless steel, and the outer casing is made of SU304 stainless steel or A3 steel plate. |
|||
|
Insulation Materials |
PU+ fiberglass |
|||
|
Observation window |
Anti-fog observation window and illumination light for easy observation of samples in the test chamber |
|||
|
safety protection |
A variety of safety protection measures to ensure the safe operation of equipment |
|||
|
Standard configuration |
Test hole 50mm, sample test stand 2 |
|||
|
Power supply |
AC220±5% 50HZ |
AC380±5% 50HZ |
||
|
Power |
4.5 |
7 |
7.5 |
|
