Multi Axial Vibration Test Slip Tables 2000Hz Temperature Range 5 - 35℃

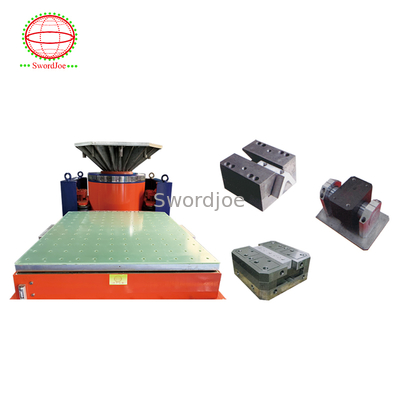

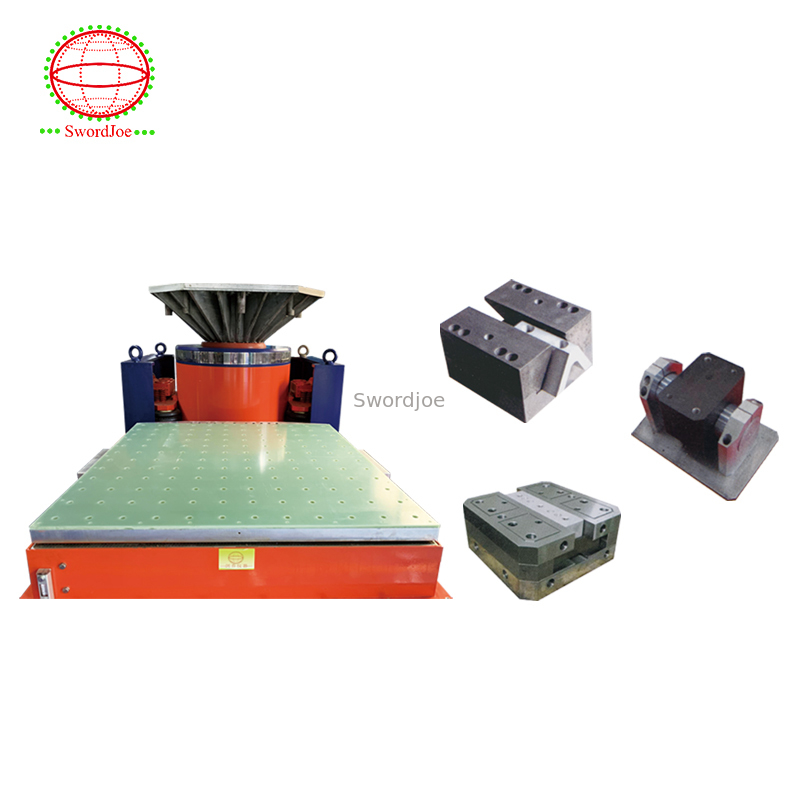

The vibration test machine is equipped with a horizontal slip table to facilitate the three-direction (X,Y,Z axias) vibration test. The slip table  increases the overall load capacity with a small  carrier (counter) mass and is capable of supporting larger sizes and larger mass loads. The slip table adopts a joint design and is divided into JV, JB and JT series according to the guiding method. The multi-axial slip table can be used with any shaker to provide the best test platform for horizontal testing. The steel structure base designed and manufactured according to the integrated concept provides a solid platform for the calibration of the vibration test machine and the horizontal slip table. The slip table design uses refined natural granite and high-quality guide bearings to meet different application requirements. The reinforced welded platform has good reaction quality and resistance. The built-in vibration isolation system can reduce vibration propagation to the ground and prevent equipment. Interference.

JB series - Hydrostatic Bearing Guide The Hydrostatic Bearing Slip Table consists of  Slip Table plate, Hydrostatic bearing, Driver Bar ,Granite plate, Slip table base, and Independent static pressure oil source. Hydrostatic bearings provide higher resistance to overturning and are suitable for testing large load specimens. The more number of hydrostatic bearings, the greater the  anti-overturning moment.

JT series - Medium Pressure Bearing Guide-The medium-pressure bearing Slip table consists of Slip table plate , Medium-pressure bearing, Driver bar, Slip Table  base, and Independent medium-pressure oil source. The medium-pressure bearing has excellent dynamic performance, and each bearing has its own feedback system has excellent parallel performance, assembly process, and easy to guarantee high performance requirements  (800X800 or bigger slip table is  available).

JV series - V Type Bearing Guide The V-bearing Slip Table consists of Slip table plate , V-shaped bearings, Driver Bar , Granite Slab, Slip Table base, and built-in oil source. Built-in oil supply pump, compact structure and easy operation. The quantity of V-bearings depending on the size of slip table . This V-shaped bearing has a high anti-overturning moment.
