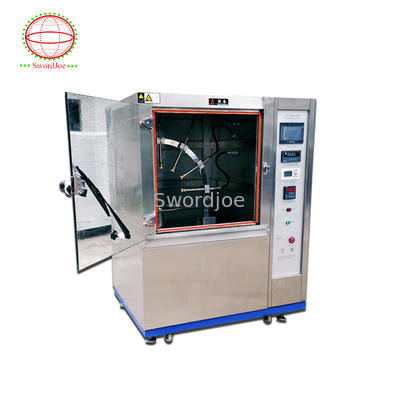

Programmable Rain Test Chamber For Electrical And Electronic Products
Product Details
| Applications: | Automotive, Aerospace, Electronics, Construction | Nozzle Size: | 0.4mm |
|---|---|---|---|
| Studio Temperature Range: | RT | Standard: | IEC60529, GB/T4208-2008, ISO20653-2013 |
| Highlight |
Programmable Rain Test Chamber,Electrical Rain Test Chamber |
||
Product Description
The programmable rain test chamber is suitable for electrical and electronic products (including components), lighting products, automotive and motorcycle parts and seals, etc., for enclosure protection level test (IP waterproof rating test), simulating the transportation and use of its products.
Feature
1. The scientific design enables the device to provide realistic simulations of watering, splashing and water immersion.
2. The control system of the whole instrument and the adoption of frequency conversion technology make the rainfall, the rotation angle of the sample rack,
the swing angle of the water swing swing and the water spray amount, and the swing frequency can be freely set and adjustble
Satndard
The equipment complies with the international standard IEC60529, national standard GB/T4208-2008, international standard ISO20653-2013 and other testing standards "enclosure protection level (IP code)", applicable to products for IP level IPX1, IPX2, IPX3, IPX4, IPX5, IPX6,IPX7,IPX8,IPX9 waterproof test to meet the relevant test requirements of IP protection level
| IPX1+IPX2 , IPX3+IPX4 , IPX1+IPX2+ IPX3+IPX4 | ||||
| Model | JQR-500 | JQR-800 | JQR-1000 | JQR-1800 |
| Internal dimensions(W·H·D)(mm) | 500*500*500 | 800*800*800 | 1000*1000*1000 | 1000*1500*1200 |
| waterproof level | IPX1,IPX2/ IPX3,IPX4 | IPX1,IPX2/ IPX3,IPX4 | IPX1,IPX2/ IPX3,IPX4 | IPX1,IPX2/ IPX3,IPX4 |
| Studio temperature range | RT | RT | RT | RT |
| Nozzle diameter | 0.4mm | 0.4mm | 0.4mm | 0.4mm |
| The main technical parameters | Water spray hole spacing 50mm Swing tube inner diameter 15mm The diameter of the turntable is 600mm (can be equipped with 200mm, 400mm table top) Flow rate 0-3L/min Pendulum angle 120° (IPX3), 350° (IPX4) or custom settings Swing tube swing speed 240° back and forth 4s, 720° back and forth 12s (precise control) or custom settings Turntable lifting height 550-1000mm The turntable bears about 50Kg Turntable speed 1-5r/min (adjustable accuracy) |
|||
Product Highlights
The programmable rain test chamber is suitable for electrical and electronic products (including components), lighting products, automotive and motorcycle parts and seals, etc., for enclosure protection level test (IP waterproof rating test), simulating the transportation and use of its products. ...
