Vertical And Horizental Agree Chamber Vibration Temperature And Humidity Chamber
Product Details
| Certifications: | CE, ISO 9001:2008 | Power Source: | 380V AC 50/60Hz |
|---|---|---|---|
| Internal Material: | Stainless Steel(SUS304) | Inner Chamber: | 1000*1000*1000 |
| Temperature Cooling Rate: | 0.8~1.5°C/Min | Frequency Rang: | 3-2000Hz |
| Controller: | Standard: South Korea TEMI-1500 | Usage: | Environmental Testing |
| Fan: | Centrifugal Blower | Internal Dimens: | Customizable |
| Chamber Material: | Stainless Steel | ||
| Highlight |
Horizental Agree Chamber,Vertical Agree Chamber,Agree Temperature And Humidity Chamber |
||
Product Description

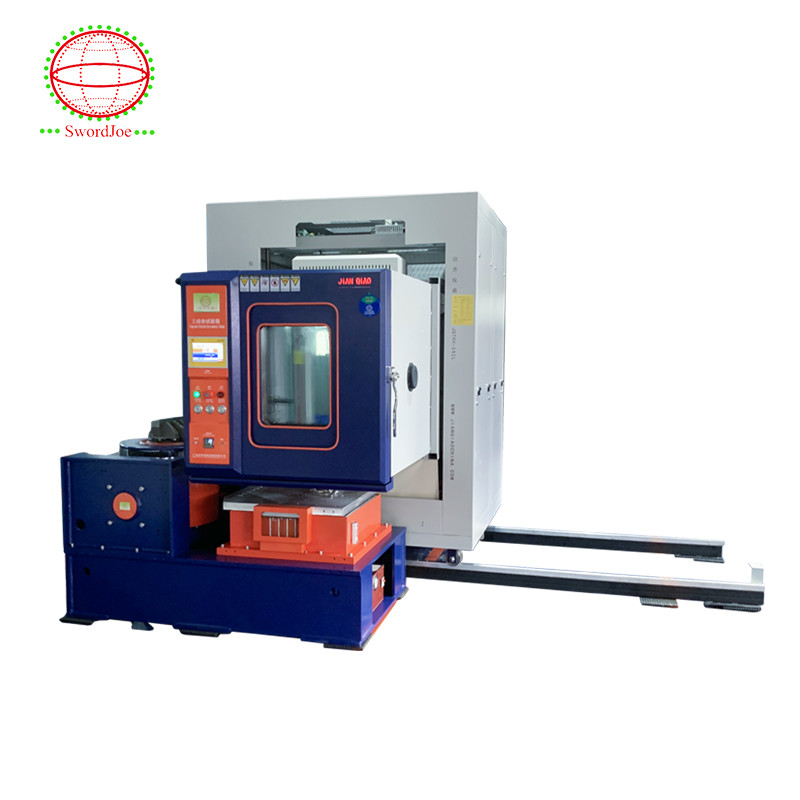

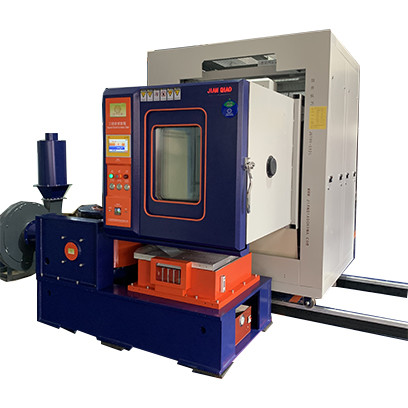

JQTHV Series Vertical and Horizontal Vibration High and Low Temperature Agree Chamber (JQTHV-1000): mainly the combination of test chamber of vibration test system, temperature, humidity, vibration (high temperature or low temperature), (sinusoidal vibration or random vibration and shock test ) and electrical stress The "environmental simulation" test for temperature, humidity, and vibration applied to the sample in the same climate chamber is carried out according to a specified cycle test condition . Compared with a single environmental factor, the product is more realistically simulated in the transportation and actual use environment, and the requirements of different working conditions are fully considered in the design. It is an important for assessing and assessing the adaptability of products to environmental changes and exposing . It is a process of new product development, reliability testing, and identification test stress screening test mass production.

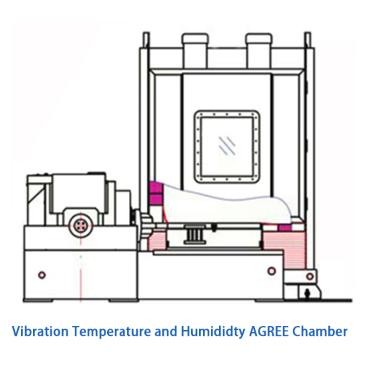

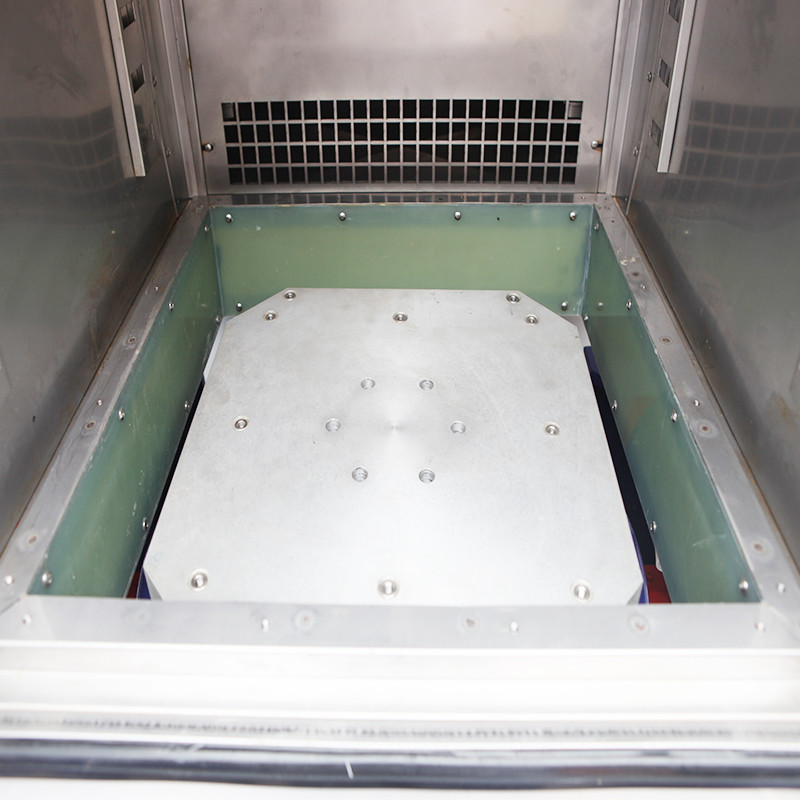

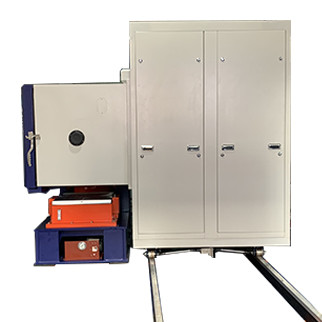

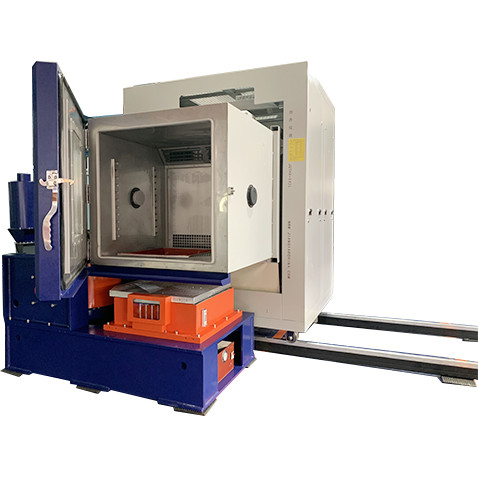

Refrigeration system for superior cooling performance Independent vibration control system, constant temperature and humidity control system Individual tests or composite tests for high temperature, low temperature, constant temperature and humidity, and vibration Easy to operate compound test or individual function test with mobile track design and Large screen color touch control screen, Chinese and English operation interface. The computer dynamics visualizes the operating system of the test Chamber and automatically starts after the power is restored, resulting in less downtime from the surface. Detachable test chamber bottom plate design, connected with various electric vibration tables with Multi-layer observation window of heat insulation treatment, wide field of vision.
|
Model |
JQTHV-500 |
JQTHV-1000 |
JQTHV-1700 |
JQTHV-3400 |
|
Inner Size (cm) |
50*75*65 |
80*70*90 |
100*100*100 |
195*315*516 |
|
Volume (L) |
512L |
1000L |
1700L |
3400L |
|
Weight (KG) |
Subject to the actual weight |
|||
|
Temperature Range |
-70℃ to +150℃(A:0℃ B:-20℃ C:-40℃ D: -70℃) |
|||
|
Humidity Range |
10%~98% RH |
|||
|
Cooling Rate |
Standard 1℃ /Min or Optional specified |
|||
|
Heating Up Rate |
Standard 3℃ /Min or specified |
|||
|
Frequency Range |
3~5000 Hz(adjustable) |
|||
|
Sine Force (kg) |
300kg to 35000kg for chooses or specified.300kg~35t |
|||
|
Displacement (mm) |
Please see vibration shaker details |
|||
|
Max.Load (kg) |
Please see vibration shaker details |
|||
|
Exterior material |
Standard 1.2mm Electrolytic plate Electrostatic spray paint |
|||
|
Interior material |
SUS 304# Stainless steel plate |
|||
|
Floor load resistance |
customized |
|||
|
Languages |
Chinese , English ,Russian |
|||
|
Controller |
TW DELTA PLC,7 " or 10" color touch screen control |
|||
|
Configuration interface |
With USB , WLAN, RS232 port , APP function is optional |
|||
|
Compressor |
French Tecumseh or German Bitzer brand or Bock |
|||
|
Power supply |
AC380V @50Hz |
|||
